VC2100 - 100Amp Circuit Breaker

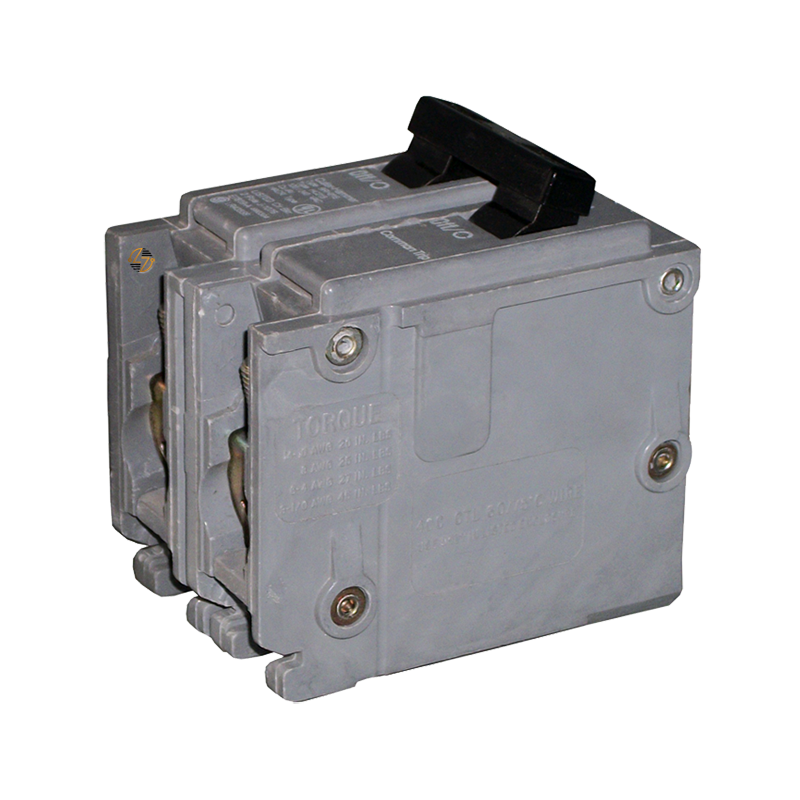

VC2100 - 100 Amp Circuit Breaker

If you’re working with a panel that calls for a VC frame breaker, the VC2100 is built to match what’s already there—plain and simple. This 2-pole, 100-amp circuit breaker is designed for 120/240VAC systems and fits into compatible plug-on panels without guesswork. It’s commonly used in applications where steady, dependable circuit protection is essential, especially for larger loads such as HVAC systems. With a 42k A.I.C. rating, it’s equipped to handle fault conditions appropriately, helping protect both equipment and wiring. No extras, no unnecessary changes—just a breaker that fits and does its job.

Key Features and Benefits

• 100 amp capacity for higher-demand circuits
• 2-pole design for 120/240VAC applications
• 42k A.I.C. rating for handling fault interruptions
• Plug-on style for easy placement in compatible panels
• HACR rated for HVAC and refrigeration equipment
• Matches VC frame systems for proper fit and alignment
• Built for long-term, consistent use

Technical Specifications

• Part Number: VC2100

• Poles: 2

• Amperage: 100A

• Voltage Rating: 120/240VAC

• Interrupting Rating: 42kA @ 120/240VAC

• Frame Type: VC

• Mounting: Plug-On

• Height: 2.88 in.

• Width: 2.0 in.

• Depth: 2.56 in.

• HACR Rated: Yes

• Ship Weight: Not available


Material Compliance and Certifications

• Meets standard industry requirements for molded case circuit breakers
• HACR rated for use with heating, air conditioning, and refrigeration systems
• Suitable for installations where compliant overcurrent protection is required

Where It Works Best

• This breaker is typically used when you need a direct replacement in an existing setup. You’ll find it working well in:
• Residential panels using VC frame breakers
• HVAC circuits that require HACR-rated protection
• Light commercial systems with similar specifications
• Any situation where matching the original breaker’s size, rating, and connection type is important
