V7H3206 - 600Amp Panelboard Switch

V7H3206 - 600Amp Panelboard Switch

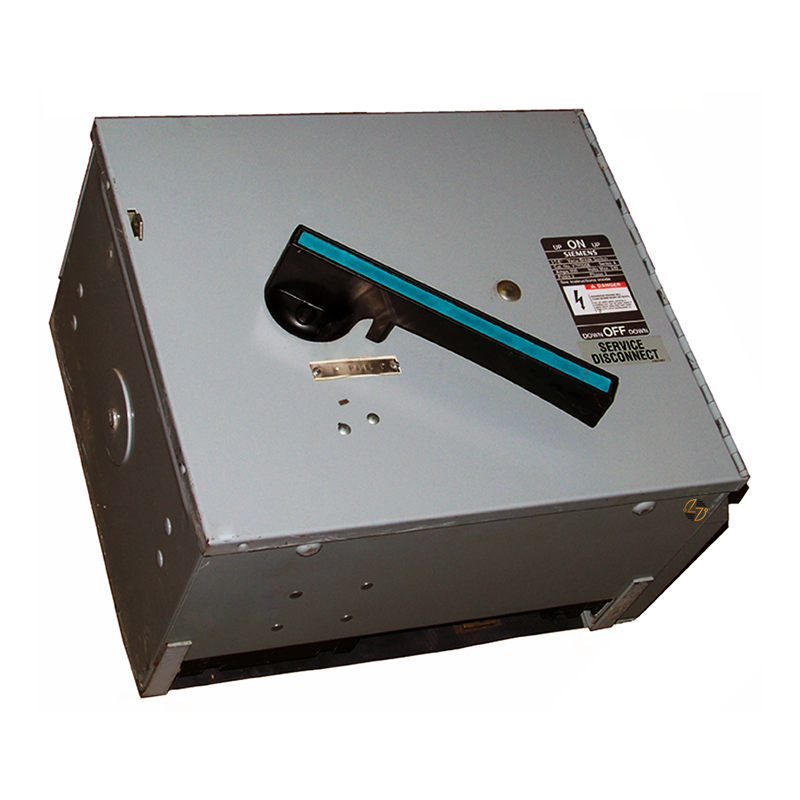

The Siemens V7H3206 is a versatile and durable panelboard switch designed to meet the rigorous demands of industrial and commercial electrical distribution systems. As part of Siemens' Vacu-Break (VB) series, this fusible single-unit switch provides efficient power management, enhanced safety, and exceptional performance.

Key Features and Benefits

• Fusible Protection: Accepts Class RK1 and RK5 fuses, providing additional safety and fault protection for critical installations.
• Bolt-In Design: Facilitates secure mounting within panelboards, ensuring stability and easy integration.

Technical Specifications

• Type: VB Panelboard Unit

• Voltage Rating: 250V AC

• Current Rating: 600A

• Number of Poles: 3

• Frequency Rating: 60Hz

• Action: Single Throw

• Mounting: Bolt-In Type

• Fuse Compatibility: Class RK1 and RK5 Fuses

• Dimensions: 15.00"H x 18.00"W x 10.50"D

• Operating Cycles: 50,000 operations

• Temperature Range: -20°F to 120°F


Material Compliance and Certifications

• The Siemens V7H3206 adheres to UL safety and performance standards, ensuring robust construction and reliable operation.
• Siemens' commitment to quality means the switch is designed with stringent material compliance protocols, suitable for demanding environments.

Suitability

• Designed for indoor environments, the V7H3206 operates efficiently across a temperature range of -20°F to 120°F. Its robust construction, high current capacity, and compatibility with RK-class fuses make it suitable for industrial and commercial power distribution systems where reliability and safety are paramount.


Choose the Siemens V7H3206 for exceptional circuit protection and seamless integration into demanding electrical systems.
