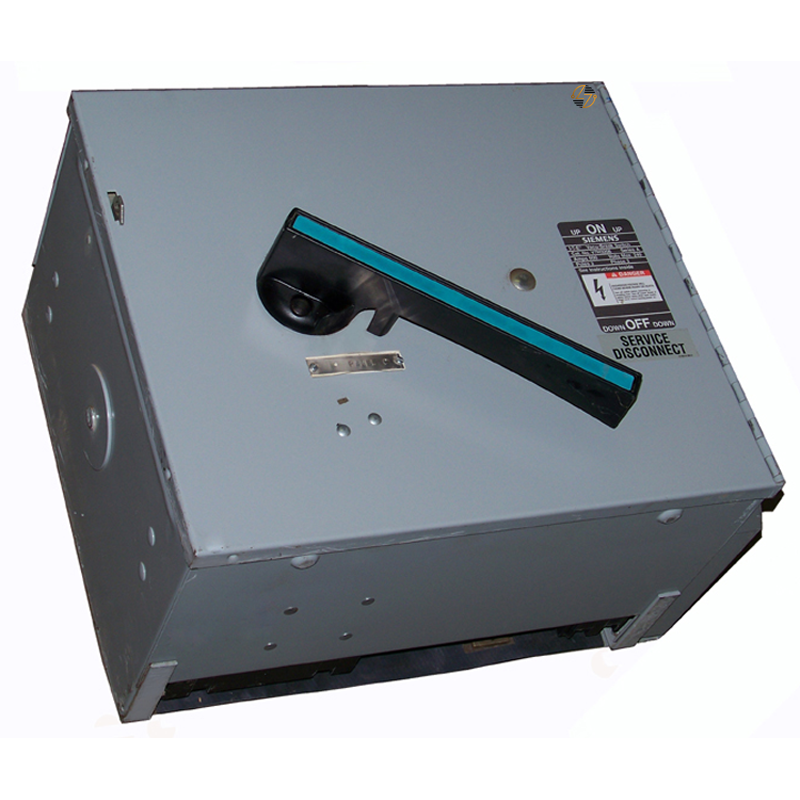

V7H3205 - 400mp Panelboard Switch

V7H3205 - 400mp Panelboard Switch

Regular price $1,250.00 USD
Regular price Sale price $1,250.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

V7H3205 - 400mp Panelboard Switch

The Siemens V7H3205 is a robust 400-amp, 3-pole, 240V AC Vacu-Break panelboard switch designed for reliable low-voltage circuit protection in commercial and industrial applications. Engineered to ensure safety and efficiency, this switch integrates seamlessly into panelboard and switchboard assemblies, providing dependable performance for critical electrical systems.

Key Features and Benefits

  • High Interrupting Capacity: With a 200,000 AIC rating at 240V AC, the V7H3205 effectively safeguards electrical circuits against high fault currents, minimizing potential damage and enhancing system safety.
  • Double-Break Switching Action: This design reduces heat generation and increases switching speed by breaking the arc in multiple places, resulting in enhanced performance and increased longevity.
  • Visible Blade Design: The highly visible ON/OFF indication and self-aligning knife blades ensure positive contact and straightforward status verification, contributing to operational safety and ease of maintenance.

Technical Specifications

  • Voltage Rating: 240V AC
  • Current Rating: 400 Amperes
  • Number of Poles: 3
  • Interrupting Rating: 200,000 AIC at 240V AC
  • Dimensions: 17" (W) x 15" (H) x 10.5" (D)
  • Weight: Approximately 59.635 lbs

Material Compliance and Certifications

  • The Siemens V7H3205 complies with industry standards, including UL98 for enclosed and deadfront switches.
  • Meets NEMA Standard KS-1-2001 for type HD switches.

Suitability

  • Ideal for use in commercial and industrial settings, the V7H3205 is suitable for applications requiring reliable circuit protection and efficient power distribution. Its robust design and high interrupting capacity make it a dependable choice for safeguarding electrical systems against overcurrent and short-circuit conditions.

Choose the Siemens V7H3205 for advanced circuit protection and reliable performance in critical electrical systems.
