BULLDOG; GOULD; SIEMENS
V7F3244 - 200Amp Panelboard Switch
V7F3244 - 200Amp Panelboard Switch
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
V7F3244 - 200Amp Panelboard Switch

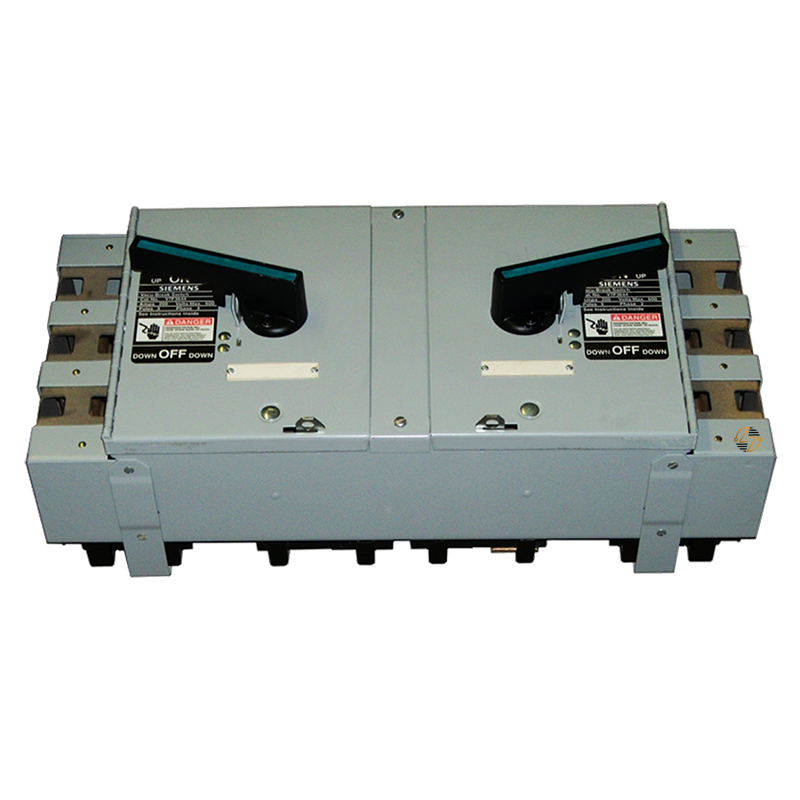

The Siemens V7F3244 is a 3-pole, 200-amp, 250-volt AC, fusible twin-unit panelboard switch engineered for dependable performance in commercial and industrial power distribution systems. Designed as a Bolt-In Type panelboard switch, it is part of Siemens' renowned Vacu-Break® series, providing robust safety and operational reliability. This compact and versatile unit accepts Class RK1 and RK5 fuses, ensuring superior protection and compatibility with a wide range of applications.
Key Features and Benefits
- Fusible Twin-Unit Design: Enhances system protection and simplifies replacement with compatibility for Class RK1 and RK5 fuses.
- Bolt-In Type Configuration: Ensures secure installation into Siemens panelboards, supporting efficient and reliable electrical connections.
- Visible Blade Design: Provides clear ON/OFF indication, enhancing safety during operation and maintenance.
- Compact Build: Its manageable size allows for flexible installation in space-constrained systems.
- Durability and Reliability: Backed by Siemens' commitment to quality, the V7F3244 is built to perform in demanding conditions.
Technical Specifications
-
Poles: 3
-
Current Rating: 200 Amperes
-
Voltage Rating: 250 Volts AC
-
Fuse Compatibility: Class RK1 and RK5 fuses
-
Short Circuit Rating: Up to 200,000 A (with appropriate fuse protection)
-
Dimensions (H x W x D): 10.00" x 22.00" x 6.75"
Material Compliance and Certifications
- Standards Compliance: The V7F3244 complies with UL standards for enclosed and deadfront switches and aligns with NEMA Standard KS-1 for type HD switches.
Suitability
- The Siemens V7F3244 panelboard switch is optimized for use in Siemens SB1/SB2 switchboards and F1/F2 panelboards. This versatile switch is well-suited for applications in commercial buildings, industrial facilities, and other environments requiring reliable power control and distribution. Whether used in primary systems or as part of an auxiliary setup, the V7F3244 delivers the safety, performance, and durability expected from Siemens' trusted electrical solutions.
