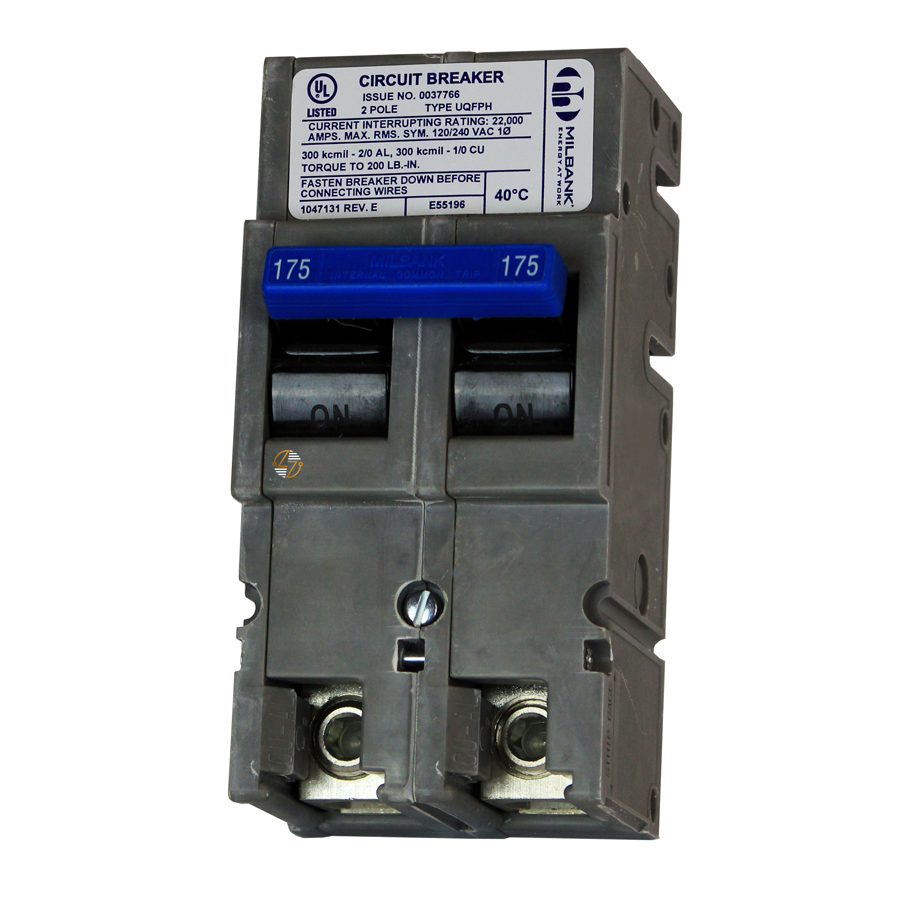

UQFPH-175 - 175Amp Circuit Breaker

UQFPH-175 - 175 Amp Circuit Breaker

If you’re replacing a main breaker and need something that fits your panel without hassle, the UQFPH-175 is built for exactly that job. This 175-amp, 2-pole breaker is made for residential plug-in applications where matching the original setup matters. It installs into compatible UQFP frame load centers and provides the kind of protection you expect—handling both overloads and short circuits through a thermal magnetic trip mechanism. What really matters here is compatibility and consistency. This breaker isn’t about bells and whistles—it’s about doing the job it was designed for, fitting where it should, and operating the way your system expects. With a 22k A.I.C. rating at 120/240VAC, it’s suited for residential electrical systems that need a properly rated main breaker. The molded case design keeps everything contained and built for long-term use under normal conditions.

Key Features and Benefits

• 175 amp, 2-pole configuration for residential main breaker use
• Designed to fit the UQFP frame load centers
• The thermal magnetic trip helps protect against overloads and short circuits
• Plug-in style for direct installation in compatible panels
• 22k A.I.C. rating at 120/240VAC
• Molded case construction built for everyday use

Technical Specifications

• Part Number: UQFPH-175

• Amperage: 175A

• Poles: 2

• Voltage Rating: 120/240VAC

• Interrupting Capacity: 22k A.I.C.

• Frame Type: UQFP

• Breaker Type: Thermal Magnetic, Molded Case

• Mounting Style: Plug-In (Main Residential)

• Dimensions:
  • Height: 6.0 in
  • Width: 3.0 in
  • Depth: 2.56 in

Material Compliance and Certifications

• Built to meet standard industry requirements for molded case circuit breakers
• Intended for use in installations following NEC (National Electrical Code) guidelines
• Suitable for residential electrical systems when installed correctly

Where It Works Best

• Residential panels using a 175A main breaker
• Replacing an existing UQFP frame breaker
• Homes with higher electrical demand (larger service setups, multiple major loads)
• Service entrance panels designed for plug-in main breakers
