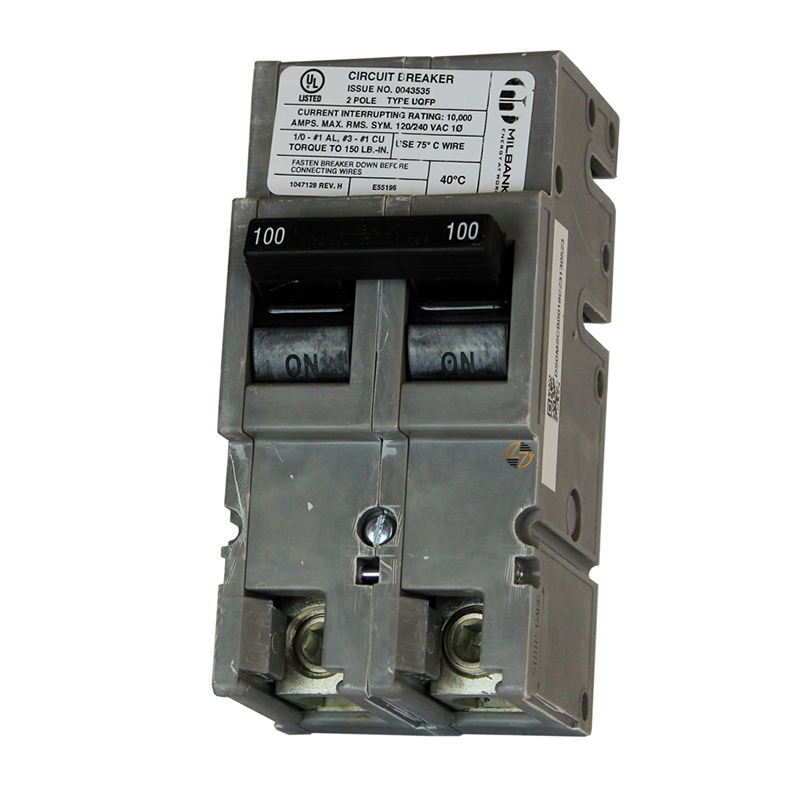

UQFP-100 - 100Amp Circuit Breaker

UQFP-100 - 100Amp Circuit Breaker

Introducing the UQFP-100 circuit breaker, a robust and reliable solution designed to meet the rigorous demands of modern electrical systems. Manufactured by Milbank, a leader in electrical solutions, the UQFP-100 is a 100Amp, 2-pole, 240V plug-in circuit breaker with a 10,000Amp interrupting capacity. This high-performance device is ideal for various applications, including residential, commercial, and industrial settings. Its exceptional build quality and advanced features ensure maximum safety and efficiency, making it a preferred choice among professionals.

Key Features and Benefits:

• High Interrupting Capacity: With a 10,000Amp interrupting capacity, the UQFP-100 offers superior protection against overcurrents and short circuits, ensuring the safety of your electrical system.
• Plug-On Design: The convenient plug-on design simplifies installation and reduces downtime, making it an excellent choice for both new installations and upgrades.
• Thermal Magnetic Trip Type: The thermal magnetic trip mechanism provides precise protection by responding accurately to both short-term and long-term overcurrent conditions.
• Durable Construction: Built with non-metallic materials, the UQFP-100 is designed to withstand harsh environmental conditions, ensuring long-lasting performance.
• Versatile Applications: Suitable for use in a wide range of settings, including metering accessories and recreational vehicle park electrical products.

Technical Specifications:

• Type: Current Interrupting Device
• Voltage Rating: 240 Volts AC
• Amperage Rating: 100Amp
• Frequency Rating: 60 Hertz
• Phase: 1 Phase
• Frame: F-Frame
• Trip Type: Thermal Magnetic
• Interrupt Rating: 10,000Amp Interrupting Capacity
• Number of Poles: 2
• Actuator: Lever
• Connection: Bus to Lug
• Auxiliary Contacts: No Auxiliary Contacts
• Material: Non-Metallic
• Operating Temperature: 40 Degrees Celsius
• Dimensions: Height - 6.063 IN, Length - 3.281 IN, Width - 3 IN

Material Compliance and Certifications:

• Compliance: The UQFP-100 circuit breaker is UL Listed, ensuring it meets the highest safety and performance standards.

Suitability:

• The UQFP-100 is suitable for a variety of applications, including residential, commercial, and industrial electrical systems. Its robust design and high interrupting capacity make it particularly well-suited for areas prone to electrical surges or heavy usage. Additionally, it is an excellent choice for use in recreational vehicle parks, providing reliable power distribution and protection.
