TQD32200WL - 200Amp Circuit Breaker

TQD32200WL - 200 Amp Circuit Breaker

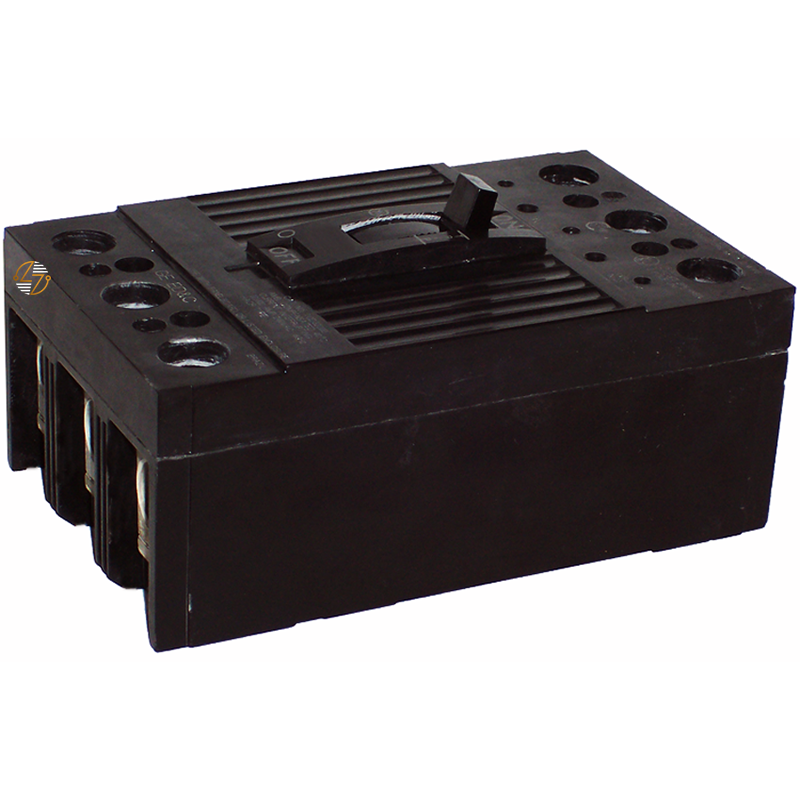

The GE TQD32200WL circuit breaker is made for your electrical systems that need reliable 200-amp protection without overcomplicating the job. Designed for commercial and industrial applications, this 3-pole molded case breaker is part of the Q-Line series and is commonly used in panelboards, distribution equipment, and HVAC systems. The lug-lug configuration includes both line- and load-side lugs, helping make replacement and installation work more straightforward. Its internal common trip design helps protect connected equipment from overloads and short circuits, while the compact size makes it a good fit for existing setups where space can be limited. Built for everyday use and designed to last, the TQD32200WL remains a practical option for keeping compatible electrical systems running properly.

Key Features and Benefits

• 200A Molded Case Circuit Breaker: Made for electrical systems that require dependable 200-amp protection in commercial and industrial applications.
• 3-Pole Internal Common Trip Design: Helps protect connected equipment from overloads and short circuits with internal common trip functionality.
• Q-Line Compatible Configuration: Designed as part of the Q-Line series for use in compatible panelboards, distribution equipment, and HVAC systems.
• Lug-Lug Connection: Cable-in/cable-out configuration includes both line-side and load-side lugs, helping make replacement and installation work more straightforward.
• Compact Design: Compact size makes it a good fit for existing setups where space can be limited.


Technical Specifications

• Part Number: TQD32200WL

• Type: TQD

• Poles: 3

• Amperage Rating: 200A

• Voltage Rating: 240VAC

• A.I.C. Rating: 10kA @ 240VAC

• Connection Type: Cable-In/Cable-Out (Lug-Lug)

• Trip Style: Internal Common Trip

• Dimensions:
  • Height: 6.56 in.
  • Width: 4.13 in.
  • Depth: 2.75 in.

Material Compliance and Certifications

• HACR Rated: Suitable for HVAC applications requiring HACR rated protection.
• Molded Case Construction: Built with molded case construction for commercial and industrial electrical systems.
• Q-Line Compatibility: Designed for use in compatible Q-Line electrical equipment and power distribution systems.


Where It Works Best

• The GE TQD32200WL is commonly installed in commercial buildings, industrial facilities, HVAC equipment, and power distribution systems that require a 3-pole, 200-amp breaker. It works especially well in maintenance and replacement applications where matching existing Q-Line equipment is important. Electricians and facility maintenance teams often use this breaker style in systems that require dependable protection and a straightforward fit.
