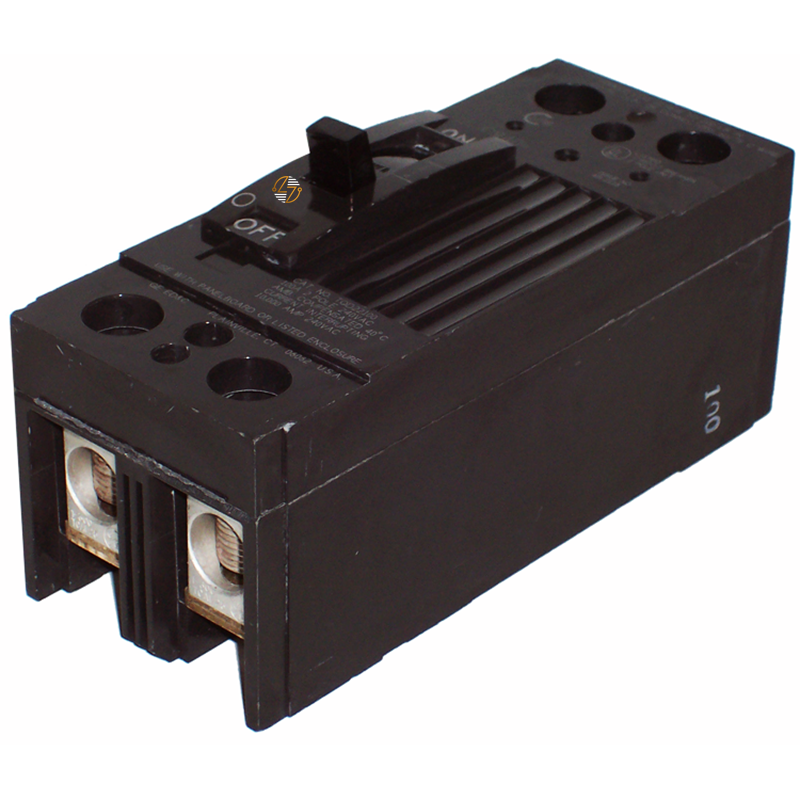

TQD22225WL - 225Amp Circuit Breaker

TQD22225WL - 225 Amp Circuit Breaker

The TQD22225WL circuit breaker is a 225-amp, 2-pole, Type TQD Q-Line molded case circuit breaker designed for you to use in compatible electrical distribution equipment requiring a 120/240VAC rating and 10k A.I.C. interrupting capacity. Built with a compact molded case design, this breaker supports cable-in/cable-out lug-lug connections and includes both line-side and load-side lugs, making it a practical form, fit, and functional replacement for properly matched Q-Line Type TQD applications. Its internal common trip helps both poles operate together during a trip event, while the HACR rating makes it suitable for applicable heating, air conditioning, and refrigeration equipment installations when matched to the panel, load, and local electrical code requirements. For maintenance teams, electricians, and facility managers working with legacy electrical systems, the TQD22225WL provides the key ratings and connection style needed to keep compatible equipment properly configured. It is made for dependable service and built to last in the applications it was designed for.

Key Features and Benefits

• 225 amp capacity: Supports applications requiring a properly rated 2-pole breaker for compatible 120/240VAC systems.
• 2-pole common trip design: Allows both poles to trip together as part of the breaker’s internal common trip function.
• Type TQD, Q-Line format: Helps ensure form, fit, and functional compatibility with matching Q-Line Type TQD equipment.
• 10k A.I.C. rating at 120/240VAC: Provides the specified interrupting capacity for systems within this rating.
• Cable-in/cable-out lug-lug configuration: Supports line and load connections using the included lugs.
• HACR rated: For applicable HVAC/R equipment circuits when used in accordance with equipment labeling and code requirements.
• Molded case construction: Gives the breaker a solid, enclosed body suitable for electrical distribution use in compatible panels and assemblies.


Technical Specifications

• Part Number: TQD22225WL

• Breaker Type: Type TQD, Q-Line Molded Case Circuit Breaker

• Poles: 2

• Amperage: 225A

• Voltage / A.I.C. Rating: 10k @ 120/240VAC

• Trip Type: Internal Common Trip

• Connection Type: Cable-in/Cable-out, Lug-Lug

• Lugs: Includes Line-Side and Load-Side Lugs

• HACR Rated: Yes

• Dimensions:
  • Height: 6.56 in.
  • Width: 2.75 in.
  • Depth: 2.75 in.

Material Compliance and Certifications

• Compliance Information: The TQD22225WL is listed in the provided product data as an HACR-rated molded case circuit breaker with an internal common trip design.
• Connection Configuration: It includes line and load-side lugs for lug-lug cable connections and is intended for use only in equipment that is specifically compatible with Type TQD Q-Line breakers.
• Additional Documentation: Material-specific compliance information, such as RoHS or REACH, is not included in the provided specifications, so project documentation, panel labeling, and the authority having jurisdiction should be checked where formal compliance records are required.


Where It Works Best

• The TQD22225WL 225 amp 2-pole circuit breaker works best as a form, fit, and functional replacement in compatible Q-Line Type TQD electrical distribution equipment. It is well-suited for maintenance, repair, and replacement work in legacy panels, commercial electrical systems, HVAC/R-related applications requiring an HACR-rated breaker, and 120/240VAC installations where the electrical system calls for a 225A, 2-pole, 10k A.I.C. molded case breaker with line and load lugs. Always confirm compatibility with the panelboard, enclosure, load requirements, and applicable electrical codes before installation.
