TKMA836700WL **Older Style** - 700Amp Circuit Breaker

TKMA836700WL **Older Style** - 700 Amp Circuit Breaker

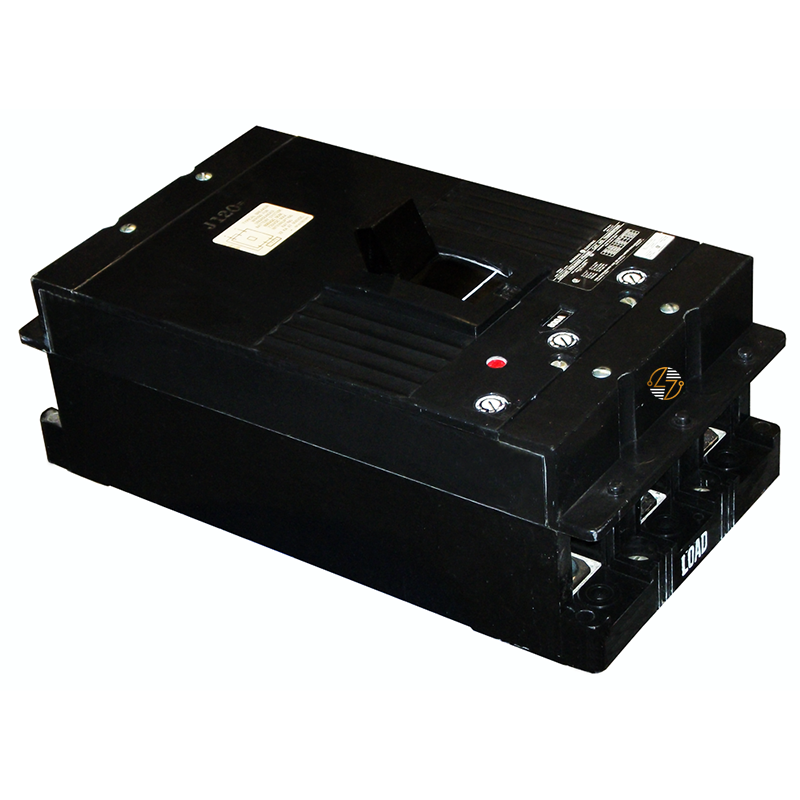

The TKMA836700WL molded case circuit breaker is designed for your industrial and commercial electrical distribution systems that rely on dependable overcurrent protection and proper compatibility with existing equipment. Featuring the older style black face design, this 3-pole, 700 amp breaker uses a thermal magnetic trip unit with internal common trip functionality to help protect connected systems from overloads and short circuits. Its cable-in/cable-out lug-lug configuration makes it a practical fit for many legacy installations where maintaining the original setup matters. Built for demanding environments, the TKMA836700WL is commonly found in switchgear, panelboards, motor control equipment, and large HVAC applications. With included line and load-side lugs and HACR rating capability, this breaker delivers the form, fit, and function needed for ongoing maintenance and replacement projects in older power distribution systems.

Key Features and Benefits

• Older Style Black Face Design: Older style black face design for compatibility with existing equipment.
• 3-Pole Molded Case Circuit Breaker: 3-pole molded case circuit breaker for industrial and commercial applications.
• 700 Amp Rating: 700 amp rating for high-capacity electrical distribution systems.
• Thermal Magnetic Trip Unit: Thermal magnetic trip unit helps respond to overloads and short circuits.
• Internal Common Trip Mechanism: Internal common trip mechanism allows coordinated tripping across all poles.
• Cable-In / Cable-Out Lug-Lug Configuration: Cable-in/cable-out lug-lug setup supports straightforward installation.
• Included Accessories: Includes both line-side and load-side lugs.
• HACR Rated: HACR rated for heating, air conditioning, and refrigeration applications.
• Built for Long Service Life: Built for long service life in demanding electrical environments.
• Replacement and Retrofit Applications: Suitable for replacement and retrofit projects involving TKM8 systems.


Technical Specifications

• Part Number: TKMA836700WL

• Type: TKM8

• Circuit Breaker Type: Molded Case Circuit Breaker

• Poles: 3

• Amperage Rating: 700A

• Trip Unit: Thermal Magnetic

• Trip Style: Internal Common Trip

• Configuration: Cable-In / Cable-Out (Lug-Lug)

• A.I.C. Rating:
  • 22k @ 600VAC
  • 30k @ 480VAC
  • 42k @ 240VAC
• Face Style: Older Style Black Face

• Included Accessories: Line and Load-Side Lugs

• HACR Rated: Yes

• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• HACR Rated: HACR rated for HVAC and refrigeration system applications.
• Industrial Electrical Distribution Use: Manufactured for industrial electrical distribution use.
• Thermal Magnetic Circuit Protection: Designed for use in systems requiring thermal magnetic molded case circuit protection.
• Electrical Code Installation: Intended for installation according to applicable electrical codes and equipment specifications.


Where It Works Best

• The TKMA836700WL works well in industrial plants, commercial facilities, large HVAC systems, manufacturing environments, and power distribution equipment where high-amperage protection is required. It is especially useful in legacy electrical systems where maintaining compatibility with existing TKM8-series equipment is important. This breaker is commonly installed in switchboards, panelboards, and motor control centers that depend on reliable circuit protection and proper equipment fitment.
