TKMA836700 **Older Style** - 700Amp Circuit Breaker

TKMA836700 **Older Style** - 700 Amp Circuit Breaker

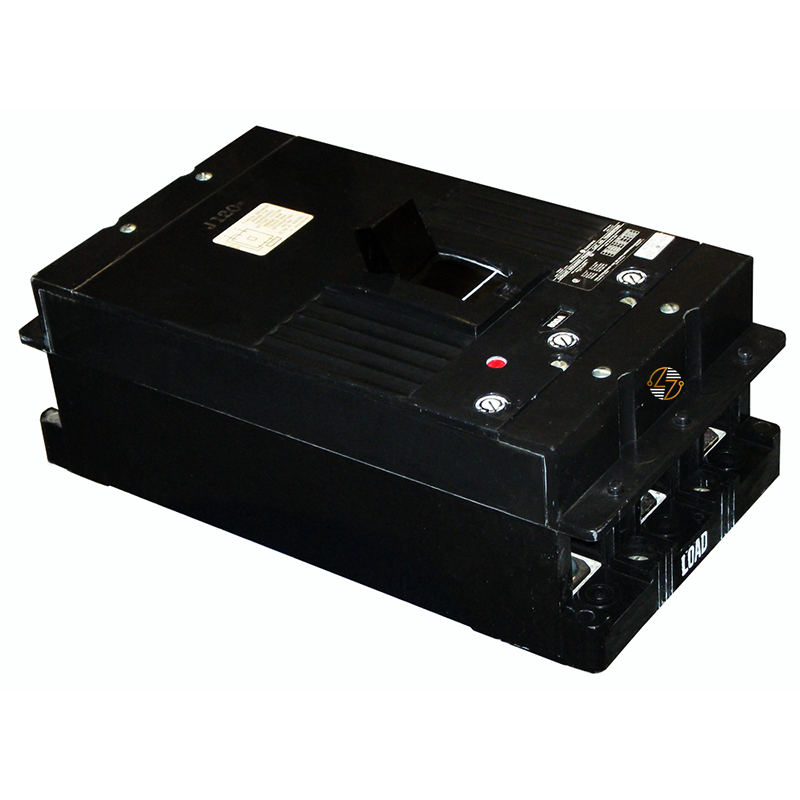

Keeping your older electrical equipment running smoothly often comes down to finding the right breaker with the right fit. The TKMA836700 Older Style Black Face circuit breaker was designed for that exact purpose. Built for commercial and industrial power systems, this 3-pole, 700 amp breaker is commonly used in existing TKM8 installations where matching the original setup matters for both function and installation compatibility.

This molded case circuit breaker features an interchangeable thermal magnetic trip unit along with internal common trip protection, helping respond to overloads and short-circuit conditions across all poles at the same time. The bolt-on design provides a secure connection in compatible equipment, while the included load-side lugs help reduce extra installation steps in the field.

Because many facilities continue operating long-standing electrical systems, breakers like the TKMA836700 remain an important part of maintaining switchgear, panelboards, and distribution equipment already in service. Its older style black face configuration helps support proper form and fit in applications where appearance and mounting style need to stay consistent with existing gear.

Key Features and Benefits

• 700 amp molded case circuit breaker: Built for commercial and industrial electrical distribution systems requiring high-amperage protection.
• 3-pole design: Designed for use in three-phase electrical systems commonly found in industrial and commercial applications.
• Older style black face configuration: Helps maintain matching appearance and compatibility in existing legacy equipment installations.
• Interchangeable thermal magnetic trip unit: Provides protection against overloads and short-circuit conditions with replaceable trip functionality.
• Internal common trip protection: Helps ensure all poles trip simultaneously during fault conditions for added system protection.
• Bolt-on mounting style: Provides a secure connection in compatible electrical equipment.
• Includes load-side lugs: Helps reduce additional installation steps in the field.
• HACR rated: Suitable for HVAC and refrigeration applications requiring HACR-rated protection devices.
• Designed for compatible legacy equipment: Supports continued operation of existing TKM8 electrical distribution systems.


Technical Specifications

• Part Number: TKMA836700

• Series / Type: TKM8

• Style: Older Style Black Face

• Poles: 3

• Amperage: 700A

• A.I.C. Rating:
  • 22k @ 600VAC
  • 30k @ 480VAC
  • 42k @ 240VAC
• Trip Unit Type: Interchangeable Thermal Magnetic

• Trip Function: Internal Common Trip

• Mounting Type: Bolt-On

• HACR Rated: Yes

• Included Accessories: Load-Side Lugs

• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• HACR Rated: Approved for HVAC and refrigeration applications requiring HACR-rated circuit protection devices.
• Commercial and Industrial Use: Intended for commercial and industrial electrical applications where molded case circuit breakers are specified.
• Thermal Magnetic Protection: Designed to provide overload and short-circuit protection for compatible electrical distribution systems.
• Legacy Equipment Compatibility: Designed for use in compatible TKM8 electrical distribution equipment and existing installations.


Where It Works Best

• The TKMA836700 is commonly installed in industrial facilities, commercial buildings, electrical distribution systems, switchgear and panelboard applications, HVAC and refrigeration equipment, manufacturing plants, and existing TKM8 breaker systems requiring matching form and fit. For facilities maintaining established electrical infrastructure, this breaker offers a practical solution for keeping existing systems operating with compatible protection components built to last.
