TKMA826700WL **Older Style** - 700Amp Circuit Breaker

TKMA826700WL **Older Style** - 700Amp Circuit Breaker

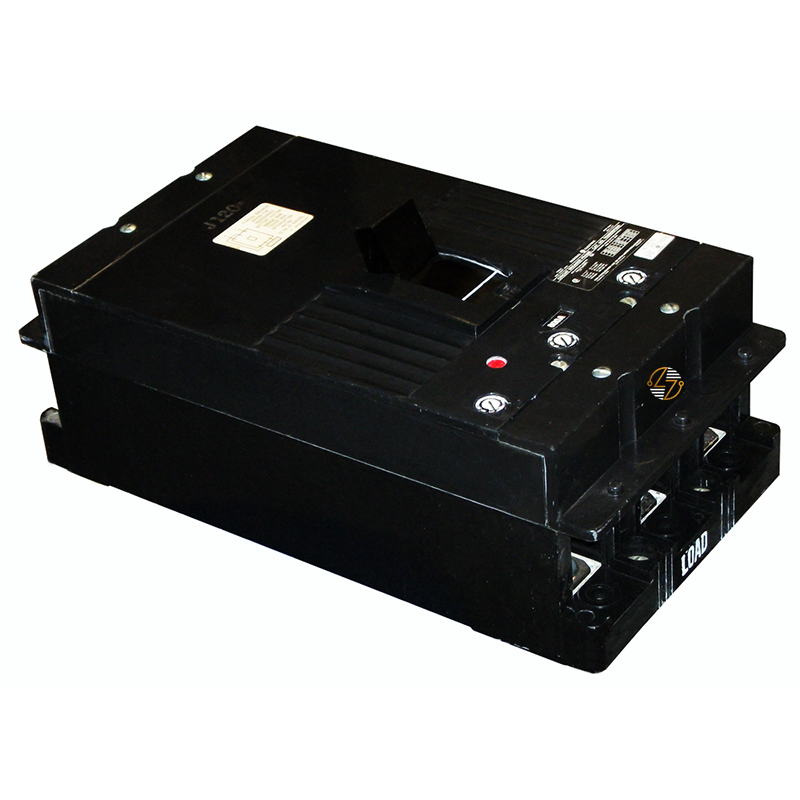

The TKMA826700WL is a 700-amp, two-pole industrial molded-case circuit breaker from the TKM8 series, featuring a distinctive older-style black face. Intended for your compatible commercial and industrial electrical distribution systems, this breaker combines an interchangeable thermal-magnetic trip unit, an internal common-trip mechanism, and a cable-in/cable-out (lug-lug) connection configuration. It includes both line-side and load-side lugs, making it a replacement candidate for existing electrical equipment designed around these specific connection requirements.

Key Features and Benefits

• 700-Amp Current Rating
• Two-Pole Configuration
• Older Style Black Face
• TKM8 Series Design
• Industrial Molded Case Construction
• Interchangeable Thermal-Magnetic Trip Unit
• Internal Common-Trip Mechanism
• Cable-In/Cable-Out Configuration
• Line-Side Lugs Included
• Load-Side Lugs Included
• Multiple AC Interrupting Ratings
• Form, Fit, and Functional Replacement Focus

Technical Specifications

• Catalog Number: TKMA826700WL

• Product Type: Industrial Molded Case Circuit Breaker

• Series / Type: TKM8

• Face Style: Older Style Black Face

• Rated Current: 700 Amperes (700A)

• Number of Poles: 2

• Connection Configuration: Cable-In/Cable-Out (Lug-Lug)

• Line-Side Lugs: Included

• Load-Side Lugs: Included

• Trip Unit Type: Interchangeable Thermal-Magnetic

• Trip Mechanism: Internal Common Trip

• Overload Protection: Thermal

• Short-Circuit Protection: Magnetic

• Interrupting Rating at 600VAC: 22kA (22,000 Amperes)

• Interrupting Rating at 480VAC: 30kA (30,000 Amperes)

• Interrupting Rating at 240VAC: 42kA (42,000 Amperes)

• HACR Rating: Yes

• Width: 8.25 Inches

• Height / Length: 15.50 Inches

• Depth: 5.50 Inches

• Overall Dimensions: 8.25" W × 15.50" L × 5.50" D

• Approximate Shipping Weight: 50.00 lbs.


Material Compliance and Certifications

The TKMA826700WL incorporates several specified electrical protection features and ratings relevant to its intended use.

• HACR Rating
• Additional Certifications: The supplied product specifications do not confirm specific UL listing information, CSA certification, or other third-party certification or material compliance declarations.

Where It Works Best

• Existing Industrial Electrical Distribution Systems
• Commercial Electrical Distribution Equipment
• Legacy Electrical System Maintenance
• Older Style Black Face Replacement Applications
• Two-Pole Electrical Installations
• Cable-In/Cable-Out Breaker Installations
• Lug-Lug Connection Applications
• Industrial Facility Maintenance
• Commercial Building Electrical Maintenance
• Compatible HVAC and Refrigeration Equipment
• Electrical Equipment Restoration Projects
• TKM8 Series Replacement Applications
• Equipment Requiring Interchangeable Trip Units
• Form, Fit, and Functional Replacement Projects
