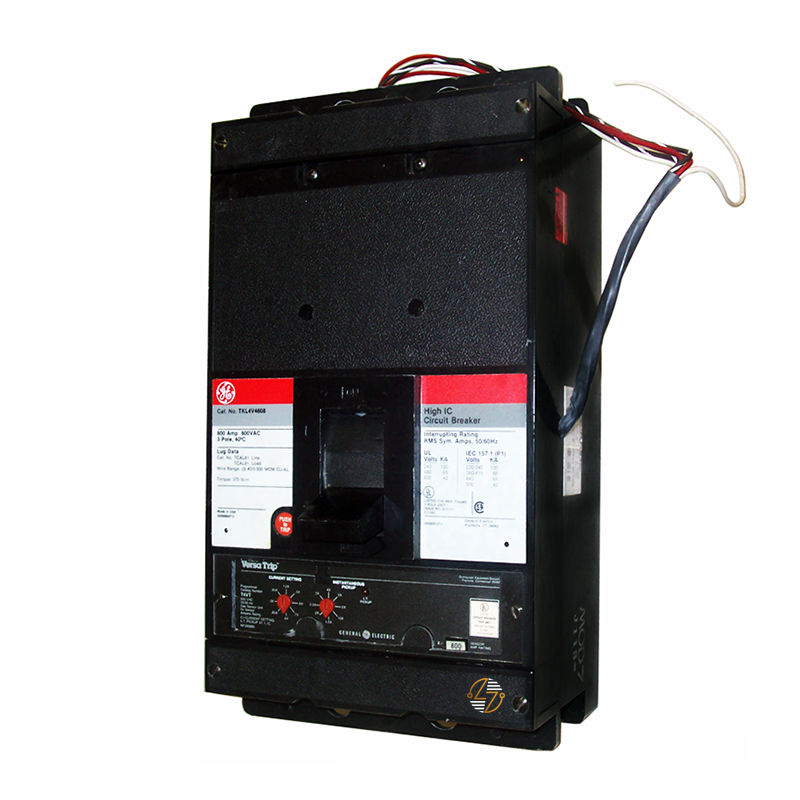

TKL4V4608 - 800Amp Circuit Breaker

TKL4V4608 - 800Amp Circuit Breaker

The General Electric TKL4V4608 is a robust molded case circuit breaker designed for high-performance electrical distribution systems. As part of GE's MicroVersaTrip family, it offers reliable protection for industrial and commercial applications. With a current rating of 800 amps, this 3-pole, 3-phase breaker ensures efficient power management. Its high interrupting capacity of 65kA at 480V AC makes it suitable for environments requiring dependable circuit interruption capabilities.

Key Features and Benefits

• MicroVersaTrip Technology: Equipped with solid-state electronic trip units, the TKL4V4608 provides precise protection by accurately sensing and responding to overcurrent conditions.
• High Interrupting Capacity: With an interrupting rating of 65kA at 480V AC, it effectively safeguards electrical systems against short circuits and faults.
• Bolt-On Mounting: The bolt-on design facilitates straightforward installation and secure connections, enhancing system reliability.


Technical Specifications

• Amperage: 800A
• Poles: 3

• Interrupting Capacity: 65kA at 480V AC

• Mounting Style: Bolt-On

• Dimensions: 8.25 inches (Width) x 5.5 inches (Depth) x 15.5 inches (Height)


Material Compliance and Certifications

• Certifications: Conforms to NETA, UL 1066, UL 489, and ANSI C37 specifications, meeting or exceeding original manufacturer‰۪s specifications.


Suitability

• Ideal for industrial and commercial settings, the GE TKL4V4608 circuit breaker is engineered to handle demanding electrical distribution requirements. Its high interrupting capacity and precise trip functionality make it suitable for protecting critical infrastructure in manufacturing plants, commercial buildings, and other facilities with substantial electrical loads.


Incorporating the General Electric TKL4V4608 into your electrical system ensures robust protection and reliable performance, aligning with the highest industry standards for safety and efficiency.
