TJL4V2605 - 500Amp Circuit Breaker

TJL4V2605 - 500Amp Circuit Breaker

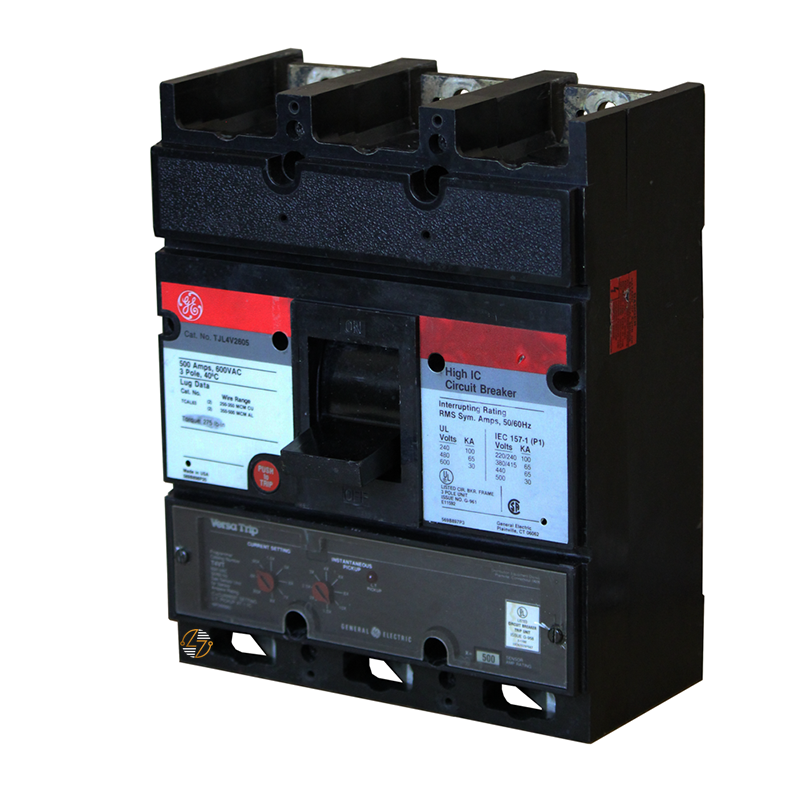

Introducing the General Electric TJL4V2605 Molded Case Circuit Breaker, a robust solution engineered to deliver reliable overcurrent protection in demanding industrial and commercial environments. With a 500-ampere capacity and a solid-state trip unit, this 3-pole breaker ensures precise and efficient interruption of electrical faults, safeguarding your electrical systems and enhancing operational safety.

Key Features and Benefits

• High Interrupting Capacity: The TJL4V2605 boasts impressive interrupting ratings of 100kA at 240VAC, 65kA at 480VAC, and 65kA at 600VAC, providing dependable protection against short circuits and electrical faults across various voltage levels.
• Solid-State Trip Unit: Equipped with a solid-state trip unit, this breaker offers accurate and consistent tripping performance, enhancing system reliability and reducing downtime.
• Compact Design: With dimensions of 8.25 inches in width, 10.13 inches in length, and 3.81 inches in depth, the TJL4V2605 is designed for easy integration into standard electrical panels, optimizing space without compromising performance.


Technical Specifications

• Frame Type: TJL4V

• Poles: 3

• Amperage Rating: 500 Amperes

• Voltage Rating: Up to 600VAC

• Interrupting Capacity (AIC):
  • 100kA at 240VAC
  • 65kA at 480VAC
  • 65kA at 600VAC
• Dimensions:
  • Width: 8.25 inches
  • Length: 10.13 inches
  • Depth: 3.81 inches
• Ship Weight: 27 lbs


Material Compliance and Certifications

• The TJL4V2605 is constructed with high-quality, durable materials that comply with industry standards for safety and performance. It meets the requirements set forth by UL 489 for molded-case circuit breakers, ensuring adherence to stringent safety and reliability criteria.


Suitability

• This circuit breaker is ideal for a wide range of applications, including industrial manufacturing facilities, commercial buildings, and infrastructure projects requiring high-capacity electrical protection. Its current-limiting design and solid-state trip unit make it suitable for systems where precise overcurrent protection is critical to maintaining operational integrity.


Invest in the General Electric TJL4V2605 Molded Case Circuit Breaker to ensure your electrical systems are protected by a device that combines high performance, reliability, and compliance with industry standards.
