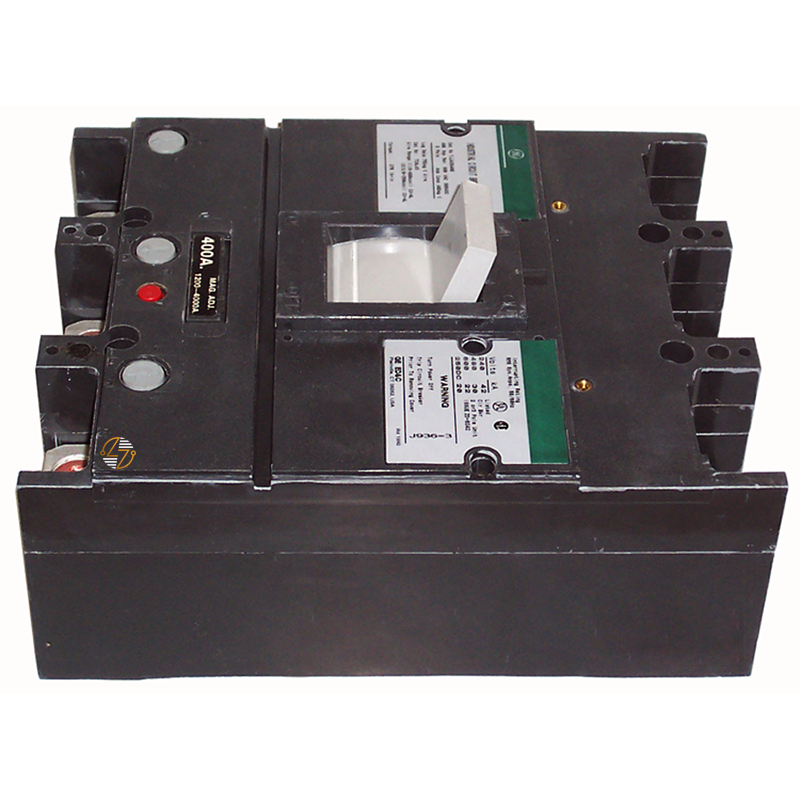

TJJ436200 - 200Amp Circuit Breaker

TJJ436200 - 200 Amp Circuit Breaker

When you’re working with existing commercial or industrial electrical equipment, finding the right breaker is about more than just matching amperage. The TJJ436200 molded case circuit breaker is built for applications where proper fit, dependable protection, and compatibility with existing systems all matter. Designed as part of the Q-Line family, this 3-pole, 200-amp breaker is commonly used in power distribution systems that require reliable overcurrent protection for three-phase applications up to 600VAC.

This breaker uses a thermal magnetic trip unit that reacts to both sustained overloads and sudden short circuits, helping protect connected equipment from electrical damage and unnecessary downtime. The internal common trip mechanism ensures all poles disconnect together during a fault condition, which is especially important in three-phase systems where balanced protection is critical. Its bolt-on mounting style provides a secure installation in compatible panelboards and switchgear, while the included load-side lugs help make field installation more straightforward.

The TJJ436200 is also HACR rated, making it a suitable choice for HVAC equipment, refrigeration systems, motor loads, and other demanding commercial applications. With interrupting ratings of 22kA at 600VAC, 30kA at 480VAC, and 42kA at 240VAC, this breaker is designed to handle fault conditions in a wide range of operating environments. Built to last and intended for long-term service, it remains a practical solution for maintaining and servicing existing electrical infrastructure where matching specifications and dependable operation are essential.

Key Features and Benefits

• 200 amp molded case circuit breaker: For commercial and industrial electrical systems.
• 3-pole configuration: Designed for three-phase power distribution.
• Thermal magnetic trip unit: Helps protect against overloads and short circuits.
• Internal common trip mechanism: Disconnects all poles simultaneously during faults.
• Bolt-on mounting design: Supports secure installation in compatible equipment.
• HACR rated: Suitable for HVAC, refrigeration, and air conditioning applications.
• Includes load-side lugs: Helps support easier installation and wiring connections.
• Q-Line compatible design: Helps maintain existing systems and equipment.
• Built for long-term use: Intended for demanding electrical environments.


Technical Specifications

• Part Number: TJJ436200

• Type: TJJ

• Product Category: Molded Case Circuit Breaker

• Series: Q-Line

• Poles: 3

• Amperage Rating: 200A

• Voltage Rating: Up to 600VAC

• Interrupting Rating:
  • 22kA @ 600VAC
  • 30kA @ 480VAC
  • 42kA @ 240VAC
• Trip Unit: Thermal Magnetic

• Trip Style: Internal Common Trip

• Mounting Type: Bolt-On

• HACR Rated: Yes

• Included Accessories: Load-Side Lugs

• Dimensions:
  • Height: 10.13 in
  • Width: 8.25 in
  • Depth: 3.81 in

Material Compliance and Certifications

• HACR Rated: The TJJ436200 circuit breaker is HACR rated and manufactured for use in compatible UL-listed electrical distribution systems.
• Protection Standards: Its thermal magnetic protection design aligns with commonly used overcurrent protection standards found in commercial and industrial applications.
• Installation Requirements: As with any electrical component, installation should always be performed according to applicable electrical codes and equipment specifications.


Where It Works Best

• Commercial buildings and office facilities
• Industrial power distribution systems
• HVAC and refrigeration equipment
• Manufacturing and processing facilities
• Motor control applications
• Existing Q-Line compatible panelboards and switchgear
• Three-phase electrical systems requiring 200 amp protection
• Whether it’s being used for maintenance, replacement, or keeping older equipment in service, the TJJ436200 provides the form, fit, and function needed for compatible electrical systems without changing existing configurations.
