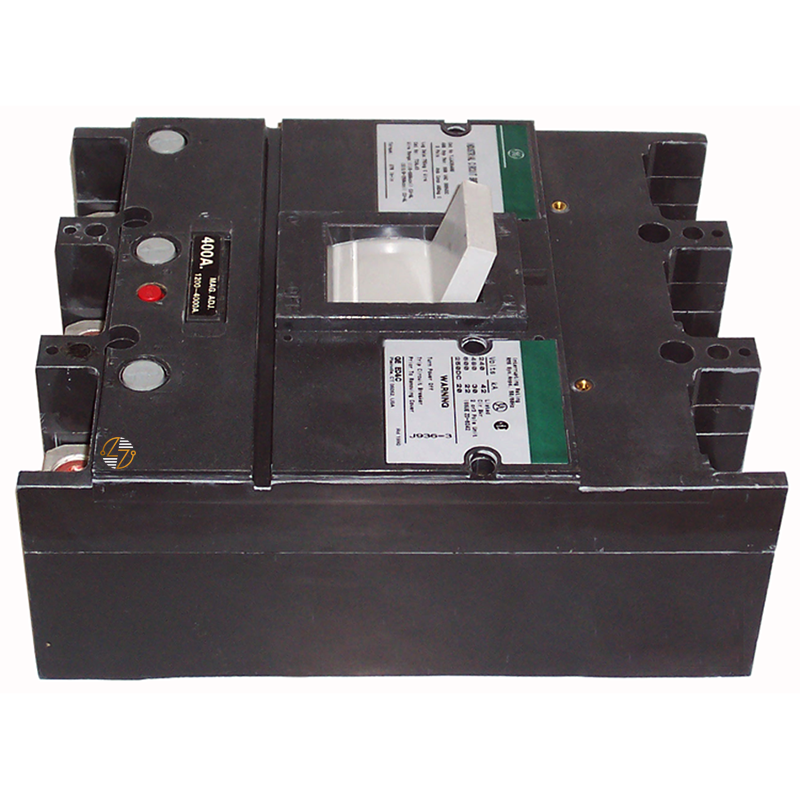

TJJ436175WL - 175A Circuit Breaker

TJJ436175WL - 175A Circuit Breaker

The TJJ436175WL molded case circuit breaker is designed for your facilities that need dependable protection in everyday power distribution applications. Whether it’s installed in a commercial building, an HVAC setup, or industrial equipment, this 175 amp, 3-pole breaker helps you to protect electrical systems from overloads and short circuits while fitting into existing Type TJJ and Q-Line configurations. Because many maintenance teams are working with established electrical systems, compatibility matters as much as performance. This breaker features a cable-in/cable-out lug-lug design with included line and load lugs, making installation more straightforward when replacing or servicing existing equipment. The thermal magnetic trip unit reacts to both sustained overloads and sudden fault conditions, while the internal common trip mechanism disconnects all poles together when needed. Its interrupting capacity ratings of 22 kA at 600 VAC, 30 kA at 480 VAC, and 42 kA at 240 VAC make it suitable for a wide range of commercial and industrial applications. The compact, molded-case construction is designed for long-term use in demanding environments where consistent operation is important day after day.

Key Features and Benefits

• 175 amp molded case circuit breaker: Designed for dependable protection in commercial and industrial electrical systems.
• 3-pole design: Built for use in three-phase electrical systems.
• Type TJJ breaker: Compatible with existing legacy equipment and distribution systems using Type TJJ and Q-Line-compatible components.
• Thermal magnetic trip unit: Helps respond to overloads and short circuits for dependable overcurrent protection.
• Internal common trip: Disconnects all poles simultaneously during a fault condition.
• Cable-in/cable-out lug-lug configuration: Supports straightforward wiring during installation or replacement.
• Includes line-side and load-side lugs: Helps simplify servicing and installation requirements.
• HACR rated: Suitable for HVAC and refrigeration applications.
• Compact molded-case construction: Designed for use in a variety of panel and distribution setups while supporting long-term operation in demanding environments.


Technical Specifications

• Part Number: TJJ436175WL

• Type: TJJ

• Poles: 3

• Amperage: 175A

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Interrupting Ratings:
  • 22kA @ 600VAC
  • 30kA @ 480VAC
  • 42kA @ 240VAC
• Configuration: Cable-in/Cable-out (Lug-Lug)

• Dimensions:
  • Height: 10.13 in.
  • Width: 8.25 in.
  • Depth: 3.81 in.
• Trip Style: Internal Common Trip

• Included: Line and Load-Side Lugs

• HACR Rated: Yes


Material Compliance and Certifications

• HACR Rated: Rated for heating, air conditioning, and refrigeration equipment applications.
• Commercial and Industrial Use: Designed for use in properly rated commercial and industrial electrical systems.
• Thermal Magnetic Protection: Supports standard overcurrent protection requirements through dependable overload and short-circuit interruption.
• Molded Case Circuit Breaker Construction: Manufactured for applications requiring dependable circuit interruption and long-term performance in demanding environments.


Where It Works Best

• The TJJ436175WL is often used in commercial facilities, industrial plants, distribution equipment, and HVAC systems where a 175-amp, 3-pole molded-case circuit breaker is required. It works well with existing electrical systems that use Type TJJ and Q-Line-compatible components, especially when maintaining or servicing established infrastructure.
