TJD432350 **Older Style** - 350Amp Circuit Breaker

TJD432350 **Older Style** - 350 Amp Circuit Breaker

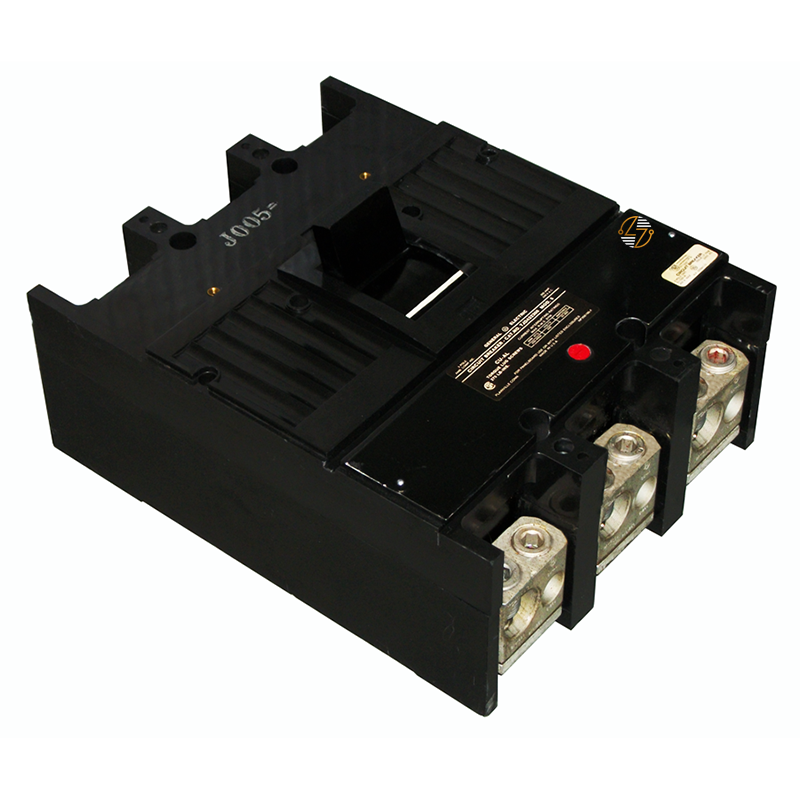

The TJD432350 Older Style Black Face circuit breaker is a molded case breaker designed for you to use in commercial and industrial electrical distribution systems. With a 350-amp rating and 3-pole configuration, it helps protect against overloads and short circuits in equipment that requires dependable circuit interruption. This breaker is part of the Q-Line series and uses a bolt-on mounting style for a secure fit inside compatible panelboards and distribution equipment. The internal common trip mechanism allows all poles to trip together when needed, helping you protect connected systems during fault conditions. Including load-side lugs can make installation and conductor termination easier during maintenance or replacement work. Built for long service life, this breaker is often used in facilities that rely on maintaining compatibility with existing electrical infrastructure.

Key Features and Benefits

• Older Style Black Face Design: Designed for use in compatible legacy systems.
• 350 Amp, 3-Pole Configuration: Intended for commercial and industrial applications.
• Bolt-On Mounting Style: Provides secure installation.
• Internal Common Trip Design: Helps disconnect all poles simultaneously during faults.
• HACR Rated: Approved for HVAC and refrigeration applications.
• Molded Case Construction: Intended for long-term use.
• Includes Load-Side Lugs: Helps with conductor connections.
• Replacement Compatibility: Designed for form, fit, and functional replacement needs.


Technical Specifications

• Part Number: TJD432350

• Type: TJD

• Series: Q-Line

• Poles: 3

• Amperage Rating: 350A

• Voltage Rating: 240VAC

• A.I.C. Rating: 22kA @ 240VAC

• Mounting Style: Bolt-On

• Trip Type: Internal Common Trip

• HACR Rated: Yes

• Included Accessories: Load-Side Lugs

• Dimensions:
  • Height: 10.13 in.
  • Width: 8.25 in.
  • Depth: 3.81 in.

Material Compliance and Certifications

• HACR Rated: Approved for heating, cooling, and refrigeration equipment applications.
• Molded Case Construction: Intended for commercial and industrial power distribution systems.
• Q-Line Compatibility: Manufactured for compatibility with applicable Q-Line electrical equipment setups.


Where It Works Best

• The TJD432350 breaker is commonly used in commercial facilities, industrial buildings, electrical distribution panels, and HVAC systems that require a 350-amp molded-case circuit breaker. It is often installed in existing Q-Line equipment where maintaining proper fit and electrical compatibility is important. Typical applications include distribution panels, switchboards, motor-related equipment, and facility power systems that require reliable circuit protection without modifying existing equipment layouts.
