TJD422250WL **Older Style** 250A Circuit Breaker

TJD422250WL **Older Style** 250A Circuit Breaker

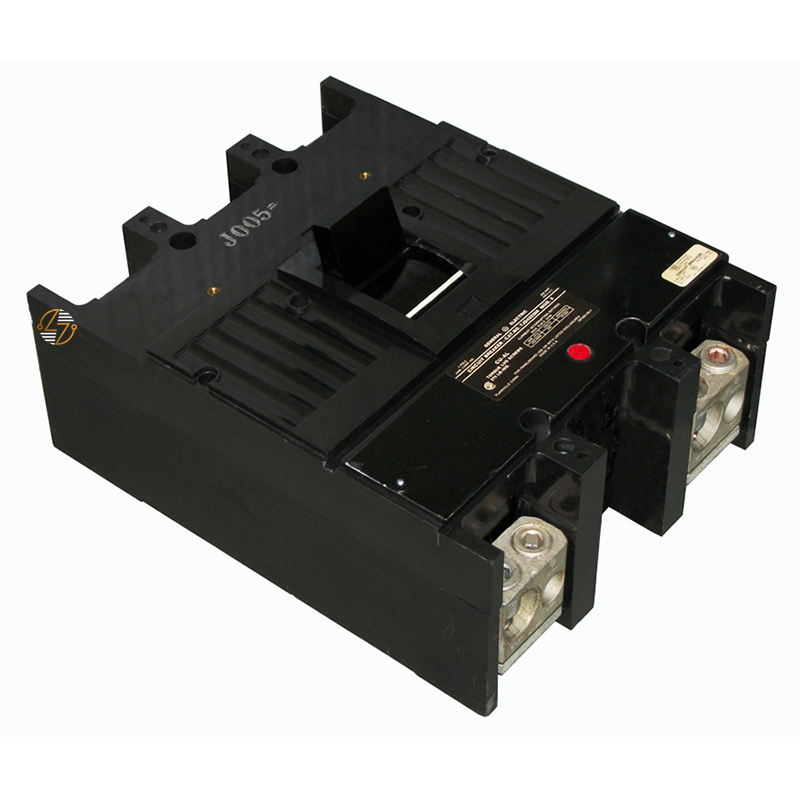

The TJD422250WL Older Style Black Face molded case circuit breaker is designed for your dependable circuit protection in commercial and industrial electrical distribution systems requiring a 250 amp, 2-pole breaker with 22kA interrupting capacity at 240VAC. Built as part of the trusted Q-Line family, this breaker features a cable-in/cable-out (lug-lug) configuration and includes both line-side and load-side lugs for straightforward installation in compatible panelboards and switchgear applications. Its internal common trip mechanism helps you to provide coordinated protection by disconnecting both poles simultaneously during overloads or short circuit conditions.

With its older style black face design, the TJD422250WL is commonly used as a form, fit, and functional replacement in existing systems where matching Configuration and electrical ratings matter. The HACR rating also makes it suitable for heating, air conditioning, and refrigeration equipment applications. Built with long-term durability in mind, this molded case circuit breaker is well-suited for facilities that rely on maintaining legacy electrical infrastructure without unnecessary modifications.

Key Features and Benefits

• 250 Amp Rating: For medium-to-heavy electrical distribution applications.
• 2-Pole Configuration: Designed for 240VAC systems.
• 22kA Interrupting Capacity @ 240VAC: Provides fault current protection.
• Older Style Black Face Design: For compatibility with existing installations.
• Q-Line Series Construction: Commonly used in commercial and industrial environments.
• Cable-In/Cable-Out (Lug-Lug) Configuration: Allows direct conductor termination.
• Includes Line and Load-Side Lugs: Simplifies installation requirements.
• Internal Common Trip Mechanism: Disconnects both poles simultaneously during fault conditions.
• HACR Rated: Suitable for use with heating, air conditioning, and refrigeration equipment.
• Molded Case Construction: Designed for consistent operation and long service life.


Technical Specifications

• Part Number: TJD422250WL

• Style: Older Style Black Face

• Type: TJD

• Product Category: Molded Case Circuit Breaker

• Poles: 2

• Amperage: 250A

• Voltage Rating: 240VAC

• A.I.C. Rating: 22kA @ 240VAC

• Configuration: Cable-In/Cable-Out (Lug-Lug)

• Trip Type: Internal Common Trip

• Series: Q-Line

• HACR Rated: Yes

• Included Accessories: Line and Load-Side Lugs

• Dimensions:
  • Height: 10.13 in
  • Width: 8.25 in
  • Depth: 3.81 in

Material Compliance and Certifications

• Industry Standards: The TJD422250WL circuit breaker is manufactured for use in applicable commercial and industrial electrical systems and is designed to meet industry standards associated with molded case circuit breakers and HACR applications.
• Installation Requirements: Proper installation should always be completed by a qualified electrician and in accordance with local electrical codes, equipment specifications, and application requirements.


Where It Works Best

• The TJD422250WL is commonly installed in commercial buildings, industrial distribution panels, HVAC and refrigeration systems, manufacturing facilities, electrical control equipment, and legacy Q-Line electrical systems requiring matching breaker configurations. It is also commonly used in maintenance and replacement projects where form and fit compatibility are important. Its lug-lug configuration and older style black face design make it especially useful in applications where maintaining consistency with existing equipment is necessary.
