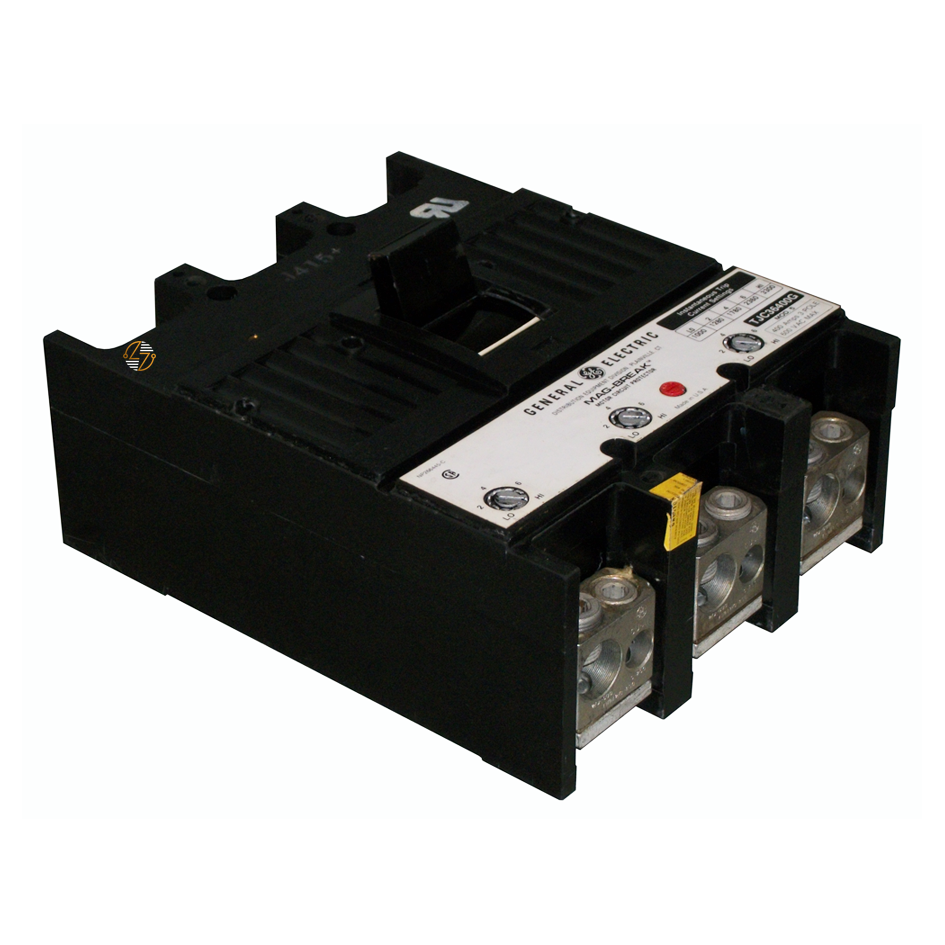

TJC36400G **Older Style** - 400Amp Max. *Frame Only*

TJC36400G **Older Style** - 400Amp Max. *Frame Only*

Experience unmatched protection and reliability with the TJC36400G Mag-Breakå¨ Motor Circuit Protector, a pivotal addition to any industrial or commercial electrical system. Engineered for optimal performance, this 3-pole, 400-amp circuit breaker is designed to handle systems up to 600 volts, ensuring safety and efficiency.

Key Features and Benefits:

• Robust Thermal Magnetic Technology: Offers precise protection against overloads and short circuits, enhancing system longevity.
• Adjustable Instantaneous Trip Setting: Customize protection levels based on your specific needs, preventing equipment damage.
• High Interrupting Capacity: With ratings up to 42 KAIC at 120/240 Vac, it's built to handle extreme fault levels, safeguarding your infrastructure.
• UL Recognized Component: Ensures compliance with stringent safety standards, giving you peace of mind.

Technical Specifications:

• Amperage: 400 A
• System Voltage Compatibility: 120 Vac, 120/240 Vac, 240 Vac, 277 Vac, 480 Vac, 600 Vac
• Interrupting Ratings: Varies from 22 KAIC up to 42 KAIC depending on the system voltage
• Trip Function: Magnetic only, with non-interchangeable trip units
• Physical Specifications: Comes with TCAL47 lugs and a robust J600 frame type

Material Compliance and Certifications:

• Complies with UL standards (UL File # E11592), ensuring reliability and quality.

Suitability:

• Ideal for commercial buildings, industrial plants, and infrastructures requiring robust circuit protection. It is not suitable for reverse feed applications.

Enhance the safety and efficiency of your electrical installations with the TJC36400G. Whether upgrading your system or undertaking new constructions, trust in the reliability and performance of our Mag-Breakå¨ Motor Circuit Protector.
