TJ226225 - 225A Circuit Breaker

TJ226225 - 225A Circuit Breaker

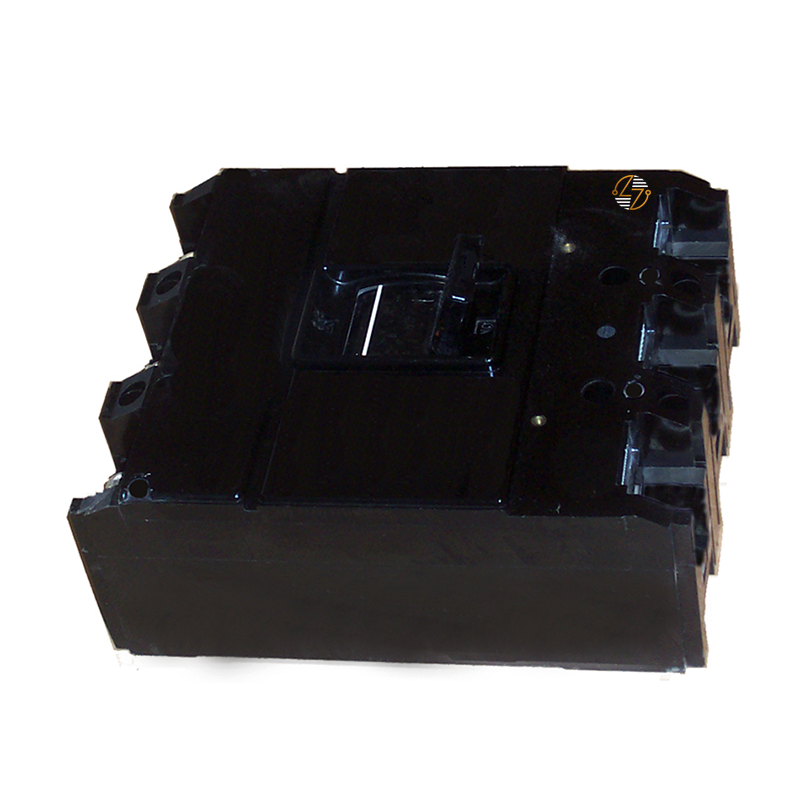

The TJ226225 circuit breaker is a 225-amp, 2-pole thermal-magnetic breaker designed for you to use in commercial and industrial electrical distribution systems. Built on the TJ frame platform, this breaker provides overload and short-circuit protection for equipment operating on up to 480VAC systems. Its non-interchangeable trip unit helps you to maintain consistent protection settings, while the included load-side terminals make installation more straightforward during maintenance or replacement work. Rated for 40°C applications, the TJ226225 is often used in existing switchboards, panelboards, and distribution equipment where matching frame size and electrical specifications are important. The breaker’s compact design also makes it a practical choice for facilities working within limited equipment space. Built to last, this model is intended for form, fit, and functional replacement in compatible systems.

Key Features and Benefits

• 225 Amp Thermal-Magnetic Circuit Breaker: Designed to provide dependable overload and short-circuit protection in commercial and industrial electrical distribution systems.
• 2-Pole Design: Compatible with power distribution systems requiring a 2-pole breaker configuration.
• TJ-Frame Construction: Built for use in existing electrical equipment applications where TJ-frame compatibility is important.
• Non-Interchangeable Trip Unit: Helps maintain consistent protection settings during operation and maintenance.
• 14k A.I.C. Rating at 480VAC: Rated for interrupting capacity requirements in systems operating up to 480VAC.
• 40°C Operating Rating: Suitable for applications operating in environments rated up to 40°C.
• Load-Side Terminals Included: Helps simplify installation during maintenance or replacement work.
• Compact Design: Practical for facilities working within limited equipment space.


Technical Specifications

• Part Number: TJ226225

• Type: TJ

• Frame: TJ Frame

• Poles: 2

• Amperage: 225A

• Voltage Rating: 480VAC

• A.I.C. Rating: 14kA @ 480VAC

• Trip Unit: Non-Interchangeable

• Temperature Rating: 40°C

• Dimensions:
  • Height: 10.13 in.
  • Width: 8.25 in.
  • Depth: 4.0 in.
• Terminals: Load-Side Terminals Included


Material Compliance and Certifications

• Electrical System Compatibility: The TJ226225 circuit breaker is intended for use in electrical distribution systems that require properly rated overcurrent protection devices.
• Installation Guidance: Installation and application should follow all applicable electrical codes, manufacturer guidelines, and system requirements.
• Qualified Personnel Recommended: Compatibility should always be confirmed before installation by qualified electrical personnel.


Where It Works Best

• The TJ226225 breaker is commonly installed in commercial buildings, industrial facilities, manufacturing plants, and other power distribution environments using TJ-frame equipment. It is well-suited for switchboards, panelboards, and related systems that require a 225-amp, 2-pole breaker rated for 480VAC service. It is frequently used in maintenance, repair, and replacement projects where maintaining compatibility with existing equipment is important.
