THQP220 - 20A Circuit Breaker

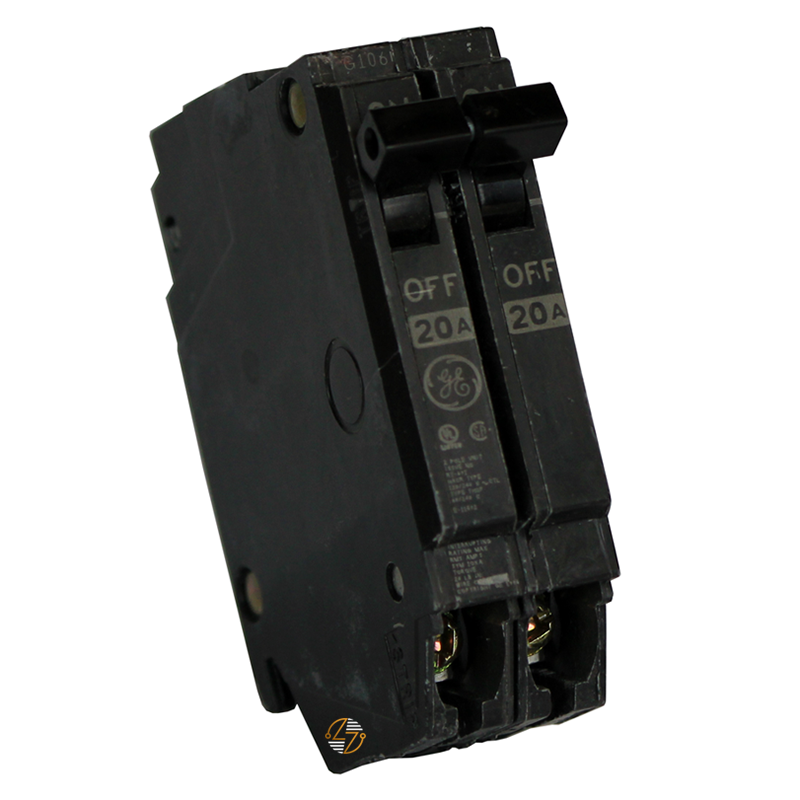

THQP220 20A Circuit Breaker

The THQP220 Circuit Breaker is a top-quality, thermal-magnetic breaker designed to provide dependable protection and space-saving efficiency for residential and commercial electrical systems. Part of the innovative Q Line series, this breaker is half the width of standard breakers, allowing for the use of smaller load centers and maximizing space and cost savings. Ideal for both contractors and homeowners, the THQP220 breaker upholds GE's commitment to flexibility and high performance. Featuring a 2-pole design, a 20 AMP rating, and an interrupting capacity of 10kAIC, this breaker ensures reliable protection and operational efficiency.

Key Features and Benefits:

• Space-Saving Design: Half the width of standard breakers, allowing for smaller load centers and maximizing space efficiency.
• High-Quality Protection: Combines thermal and magnetic trip elements for quick and reliable response to electrical faults, ensuring maximum safety.
• Cost-Effective: Provides significant savings in space and money without sacrificing flexibility and performance.
• Easy Installation and Maintenance: Plug-in design simplifies installation in Q Line load centers and lighting panels, with easy-to-spot trip indication for convenient maintenance.
• Versatile Applications: Suitable for a wide range of residential and commercial environments, ensuring reliable performance and safety.

Technical Specifications:

• Amperage: 20 A
• Poles: 2
• Voltage Rating: 120/240 V
• Interrupting Capacity: 10 kAIC
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• System Voltage: 120 Vac, 120/240 Vac
• Wire Range (Cu/Al): 14-8 kcmil / 12-8 kcmil
• Special Markings: HACR (Heating, Air Conditioning, and Refrigeration)
• Suitable for Reverse Feed: Yes

Material Compliance and Certifications:

• UL File #E11592: Certified to meet stringent UL standards for safety and performance.
• GSA Compliance: Yes

Suitability:

• The THQP220 Circuit Breaker is ideal for various applications, from residential homes to commercial buildings, where space-saving design and reliable overcurrent protection are essential. Its compact size, robust performance, and ease of installation make it a versatile and indispensable component for modern electrical systems, providing the safety and reliability you need.
