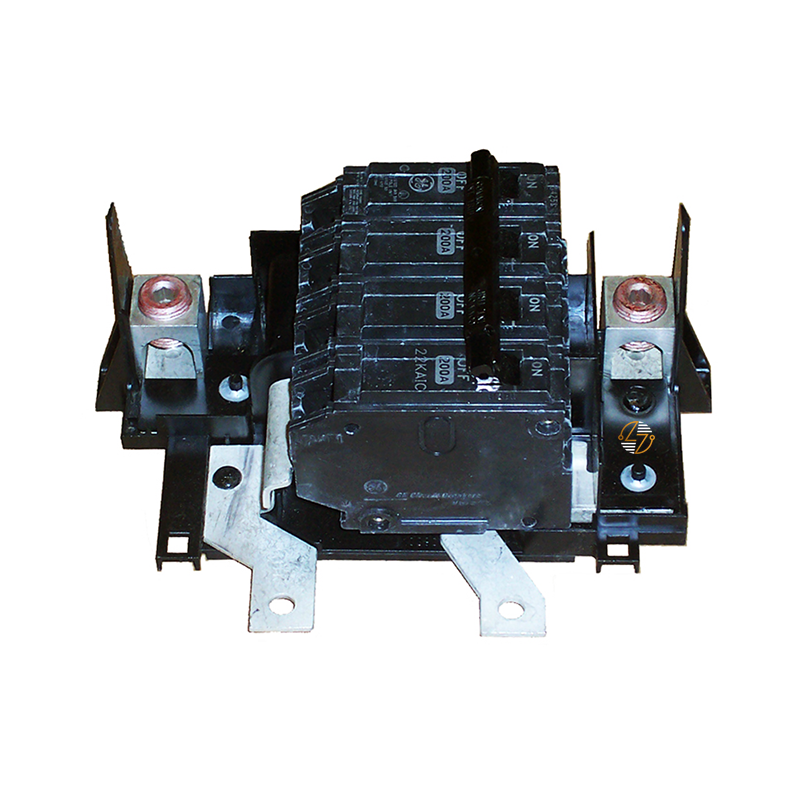

THQMV200D - 200Amp Circuit Breaker

THQMV200D - 200 Amp Circuit Breaker

The THQMV200D is a 2-pole, 200-amp circuit breaker designed for you to use in compatible 120/240 VAC electrical systems. It features a plug-on design and comes with a mounting kit for installation in designated panel applications. With a 22k A.I.C. rating, this breaker is intended to provide overcurrent protection for circuits and connected equipment in commercial and industrial settings. This model is often used in existing distribution systems where matching ratings and proper fit matter during maintenance or replacement work. Its compact size allows it to fit into compatible panel configurations without taking up unnecessary space. The breaker is built with durable materials intended for everyday electrical use and long-term operation under normal working conditions.

Key Features and Benefits

• 2-pole configuration: Designed for use in compatible 120/240 VAC electrical systems requiring a 2-pole breaker setup.
• 200-amp rating: Provides a 200A rating suitable for commercial and industrial electrical distribution systems.
• 22k A.I.C. at 120/240VAC: Intended to provide overcurrent protection for circuits and connected equipment with a 22k A.I.C. rating.
• Plug-on mounting style: Features a plug-on design for installation in designated panel applications.
• Mounting kit included: Includes a mounting kit to assist with installation in compatible panel systems.
• Compact design: Allows the breaker to fit into compatible panel configurations without taking up unnecessary space.
• Circuit protection: Helps protect circuits from overloads and short circuits during normal electrical operation.


Technical Specifications

• Part Number: THQMV200D

• Type: THQMV

• Poles: 2

• Amperes: 200A

• Voltage: 120/240VAC

• A.I.C. Rating: 22kA

• Mounting Style: Plug-On

• Additional Notes: Includes Mounting Kit

• Dimensions:
  • Height: 5.25 in.
  • Width: 8.0 in.
  • Depth: 3.75 in.

Material Compliance and Certifications

• System Compatibility: The THQMV200D is intended for use in properly rated electrical systems and compatible equipment.
• Installation Guidelines: All installations should follow local electrical codes and manufacturer guidelines. Compatibility should be confirmed by qualified personnel before installation.


Where It Works Best

• The THQMV200D is commonly used in commercial buildings, industrial facilities, and electrical distribution systems requiring a 2-pole, 200-amp breaker. It is a suitable choice for replacement projects, panel maintenance, and applications where matching existing system specifications is important.
