THQMV200 - 200Amp Circuit Breaker

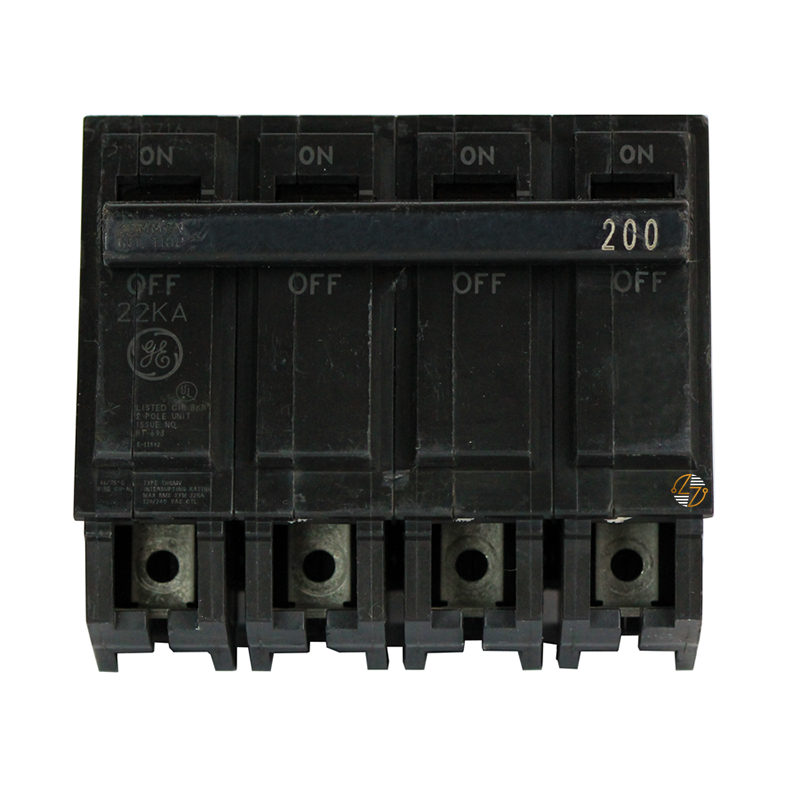

THQMV200 - 200 Amp Circuit Breaker

The THQMV200 main plug-on circuit breaker is designed for dependable circuit protection in your commercial and industrial electrical distribution systems that require a 200-amp, 4-pole configuration. Built for use in compatible panelboards and load center applications, this THQMV series breaker helps you to protect electrical equipment and connected systems from overloads and short circuits while maintaining proper power distribution. Its compact footprint allows it to fit efficiently within existing electrical assemblies, making it a practical form, fit, and functional replacement option for maintenance professionals, contractors, and facility operators working with legacy equipment. Engineered for long-term service in demanding environments, the THQMV200 is built to last and supports safe operation in systems rated for 120/240VAC applications.

Key Features and Benefits

• 200-Amp Main Plug-On Breaker: Designed for commercial and industrial power distribution applications requiring dependable circuit protection.
• 4-Pole Configuration: Supports multi-phase electrical systems where a 4-pole breaker arrangement is required.
• 22k A.I.C. Rating: Rated 22k A.I.C. at 120/240VAC for dependable interruption capability in properly rated systems.
• Plug-On Mounting Style: Allows efficient installation and replacement in compatible electrical distribution equipment.
• Compact Dimensions: Helps simplify integration into existing panel setups and electrical assemblies.
• Overload and Short-Circuit Protection: Designed to help protect electrical equipment and connected systems in branch and main applications.
• Built for Long Service Life: Engineered for long-term service in properly maintained commercial and industrial electrical systems.


Technical Specifications

• Part Number: THQMV200

• Type: THQMV

• Breaker Style: Main Plug-On Circuit Breaker

• Amperage Rating: 200 Amps

• Poles: 4

• Voltage Rating: 120/240VAC

• A.I.C. Rating: 22kA

• Dimensions:
  • Height: 3.31 in.
  • Width: 4.0 in.
  • Depth: 2.81 in.

Material Compliance and Certifications

• Industry Standards: Manufactured for use in applicable low-voltage electrical distribution systems and designed to meet industry standards associated with molded case circuit breakers.
• Application Suitability: Suitable for properly rated commercial and industrial electrical applications. Verify compatibility, installation requirements, and local code compliance before use.


Where It Works Best

• The THQMV200 is well-suited for commercial buildings, industrial facilities, distribution panels, and electrical systems requiring a 200-amp, 4-pole main breaker configuration. It is commonly used in panelboards and power distribution equipment where maintaining compatibility with existing infrastructure is important. This breaker is a practical choice for service replacements, facility maintenance projects, and electrical system repairs involving legacy equipment designed around THQMV series components.
