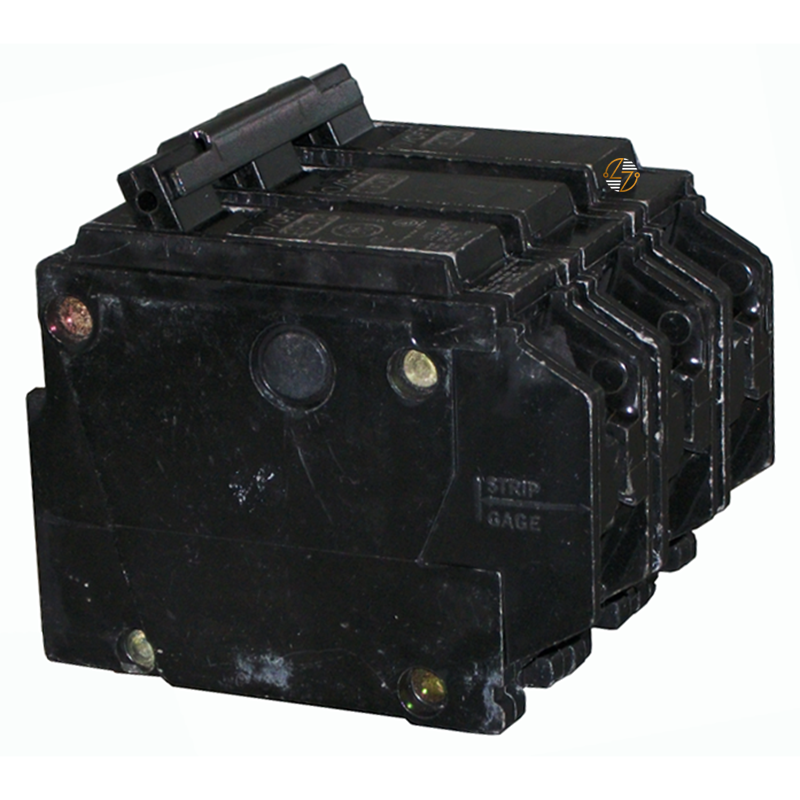

THQL32025 - 25Amp Circuit Breaker

THQL32025 - 25 Amp Circuit Breaker

The THQL32025 is a 25-amp, 3-pole circuit breaker used to protect your electrical circuits from overloads and short circuits in commercial, industrial, and residential power distribution systems. Built as part of the THQL Q-Line family, this breaker features a plug-on mounting design that makes installation straightforward in compatible panelboards and load centers.

Rated for 240VAC with a 10kA interrupting capacity, the THQL32025 is commonly found in three-phase applications where dependable circuit protection is required. Its HACR rating also makes it a suitable choice for heating, air conditioning, and refrigeration equipment. The molded case construction helps you to protect the internal operating components while standing up to the demands of everyday service.

Contractors, maintenance teams, and facility managers often choose breakers in the THQL series because they offer a practical combination of performance, space efficiency, and ease of installation. Whether replacing an existing breaker or completing a new installation, the THQL32025 helps keep electrical systems protected and operating as intended.

Key Features and Benefits

• 25 amp current rating
• 3-pole configuration for three-phase circuits
• 10kA interrupting capacity at 240VAC
• Plug-on mounting design
• HACR rated for HVAC and refrigeration applications
• Molded case construction
• Compatible with designated Q-Line load centers and panelboards
• Compact design helps conserve panel space

Technical Specifications

• Part Number: THQL32025
• Type: THQL
• Series: Q-Line
• Poles: 3
• Amperage: 25 Amps
• Voltage Rating: 240VAC
• Interrupting Capacity: 10kA @ 240VAC
• Mounting Style: Plug-On
• Circuit Breaker Type: Molded Case
• HACR Rated: Yes
• Height: 3.31 in.
• Width: 3.00 in.
• Depth: 2.81 in.

Material Compliance and Certifications

• HACR Rated: The THQL32025 is HACR rated for use in heating, ventilation, air conditioning, and refrigeration applications.
• Installation Requirements: It is manufactured for use in electrical distribution systems that require overcurrent protection and should be installed according to applicable electrical codes and equipment specifications.

Where It Works Best

• Commercial buildings
• Industrial facilities
• HVAC equipment
• Refrigeration systems
• Three-phase branch circuits
• Control panels
• Electrical distribution equipment
• Service and maintenance replacements
• For applications requiring a 25-amp 3-pole THQL circuit breaker, the THQL32025 offers dependable circuit protection in a compact plug-on design.
