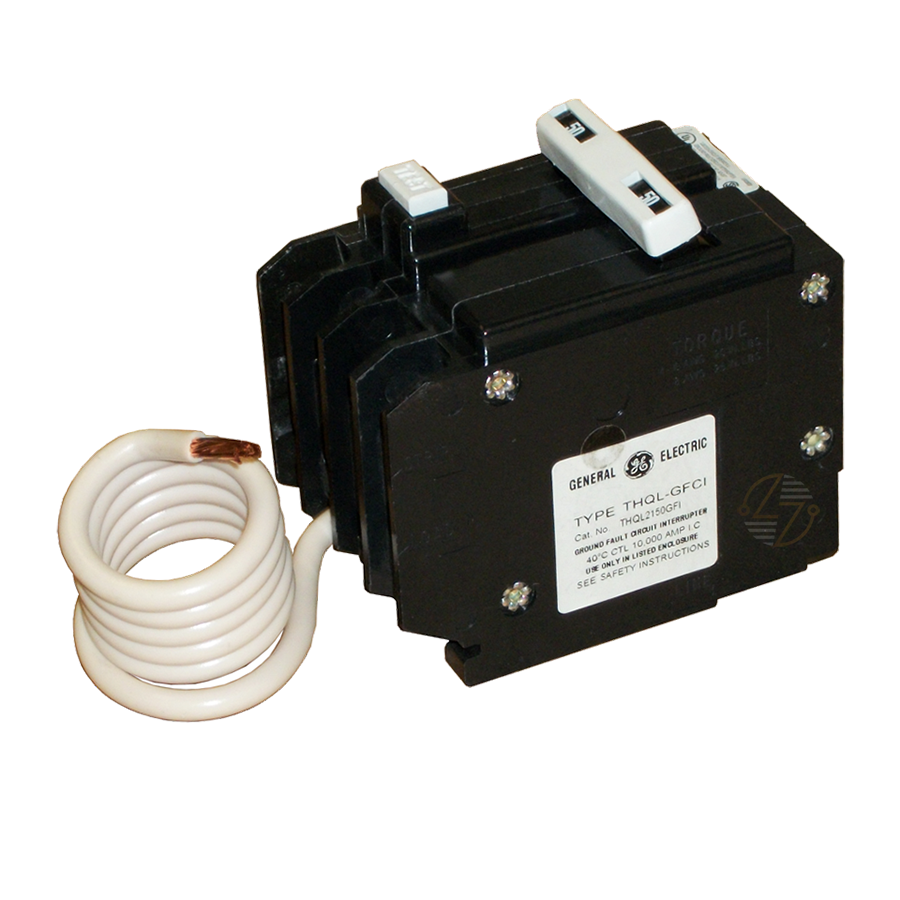

THQL2150GF1 - 50A Circuit Breaker

THQL2150GF1 50A Circuit Breaker

The THQL2150GF1 Circuit Breaker is a premium thermal-magnetic breaker designed to deliver superior protection and reliability for both residential and commercial electrical systems. This 2-pole, 50 AMP breaker is part of the esteemed Q Line series, recognized for its compact, one-inch wide per pole design, making it ideal for space-efficient installations in load centers and lighting panels. With a voltage rating of 120/240V and an interrupting capacity of 10kAIC, the THQL2150GF1 ensures robust protection against overcurrents, short circuits, and ground faults, enhancing the overall safety and reliability of your electrical infrastructure.

Key Features and Benefits:

• Ground Fault Protection: Provides advanced protection by detecting and interrupting ground faults, significantly reducing the risk of electrical shocks and fires.
• Compact and Efficient Design: The one-inch wide per pole configuration optimizes space efficiency in both residential and commercial electrical panels.
• Reliable Thermal-Magnetic Protection: Combines thermal and magnetic trip elements for quick and dependable response to electrical faults, ensuring maximum safety.
• High Interrupting Capacity: Rated at 10kAIC, the THQL2150GF1 is designed to handle significant electrical faults, providing enhanced protection for your electrical systems.
• Easy Installation and Maintenance: Plug-in design facilitates straightforward installation in Q Line load centers and lighting panels, with easy-to-spot trip indication for convenient maintenance.
• Versatile Applications: Suitable for use in HID applications and available with auxiliary contact and shunt trip accessories for expanded functionality.

Technical Specifications:

• Amperage: 50 A
• Poles: 2
• Voltage Rating: 120/240 V
• Interrupting Capacity: 10 kAIC
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• System Voltage: 120 Vac, 120/240 Vac
• Ground Fault: Yes
• Special Markings: HACR (Heating, Air Conditioning, and Refrigeration)
• Suitable for Reverse Feed: Yes

Material Compliance and Certifications:

• UL File #E51075: Certified to meet stringent UL standards for safety and performance.
• GSA Compliance: No, but ensures high quality and reliability for various applications.

Suitability:

• The THQL2150GF1 Circuit Breaker is ideal for a wide range of applications, from residential homes to commercial buildings, where advanced ground fault protection and reliable overcurrent protection are essential. Its compact size, robust performance, and ease of installation make it a versatile and indispensable component for modern electrical systems, providing the safety and reliability you need.
