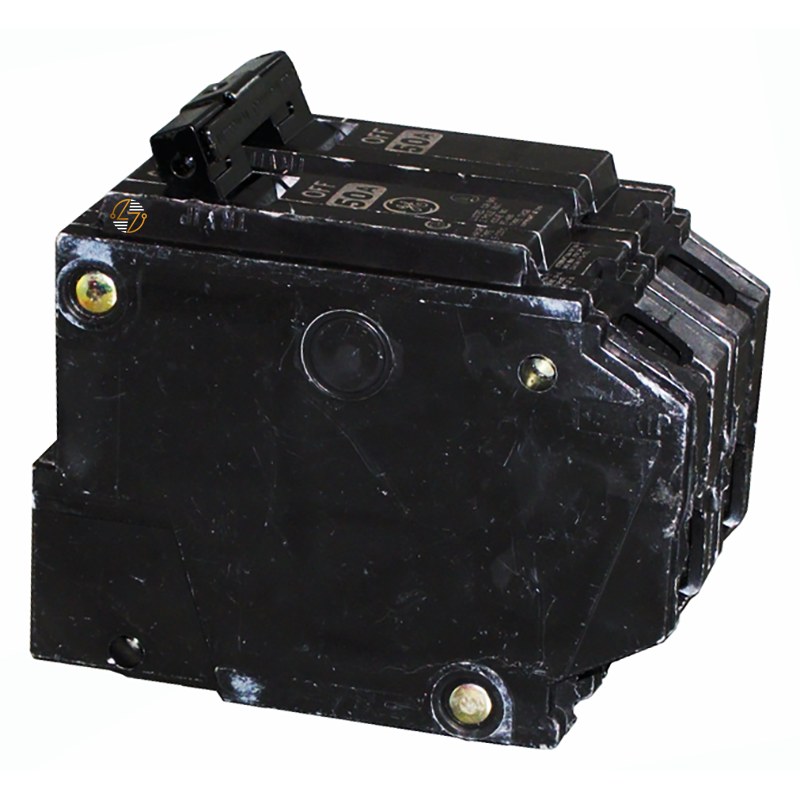

THQL2150 - 50Amp Circuit Breaker

THQL2150 - 50 Amp Circuit Breaker

The THQL2150 is a 50 amp, 2-pole circuit breaker designed to protect 120/240V electrical circuits from overloads and short circuits. Built for use in compatible Q-Line load centers and panelboards, this plug-on breaker provides a simple way to help you keep electrical systems operating safely.

A 50 amp breaker is often used for larger electrical loads that require dependable protection. The THQL2150 is commonly found in applications such as air conditioning equipment, electric water heaters, subpanels, and other circuits that draw more power than standard branch circuits. Its HACR rating also makes it suitable for heating, air conditioning, and refrigeration equipment.

The compact molded case design installs directly into compatible panels using a plug-on connection, helping you to reduce installation time. With a 10kA interrupting rating at 120/240VAC, the breaker is built to respond when fault conditions occur, helping protect connected equipment and wiring from damage.

Whether you're replacing an existing breaker or maintaining an electrical distribution system, the THQL2150 offers the dependable performance expected from the Q-Line series.

Key Features and Benefits

• 50 amp current rating: 50 amp current rating.
• 2-pole configuration: 2-pole configuration.
• Designed for 120/240VAC systems: Designed for 120/240VAC systems.
• Plug-on mounting style: Plug-on mounting style.
• Compatible with Q-Line load centers and panelboards: Compatible with Q-Line load centers and panelboards.
• HACR rated: HACR rated.
• Molded case construction: Molded case construction.
• 10kA interrupting capacity: 10kA interrupting capacity.
• Helps protect against overloads and short circuits: Helps protect against overloads and short circuits.


Technical Specifications

• Part Number: THQL2150

• Type: THQL

• Series: Q-Line

• Poles: 2

• Amperage Rating: 50 Amps

• Voltage Rating: 120/240VAC

• A.I.C. Rating: 10kA

• Mounting Style: Plug-On

• Construction: Molded Case Circuit Breaker

• HACR Rated: Yes

• Dimensions:
  • Height: 3.31 in.
  • Width: 2.00 in.
  • Depth: 2.81 in.

Material Compliance and Certifications

• HACR Rating: The THQL2150 is manufactured for use in electrical distribution systems requiring overcurrent protection. Its HACR rating confirms suitability for heating, air conditioning, and refrigeration applications.
• Installation Compatibility: Always verify compatibility with the intended panel and installation requirements before use.


Where It Works Best

• Air conditioning units and HVAC systems.
• Electric water heaters.
• Subpanel feeder circuits.
• Commercial electrical equipment.
• Workshop and garage installations.
• Other 120/240V circuits requiring a 50 amp, 2-pole breaker.
• For electricians, maintenance teams, and facility managers looking for a reliable 50 amp Q-Line circuit breaker, the THQL2150 is a practical choice for protecting higher-demand electrical circuits.
