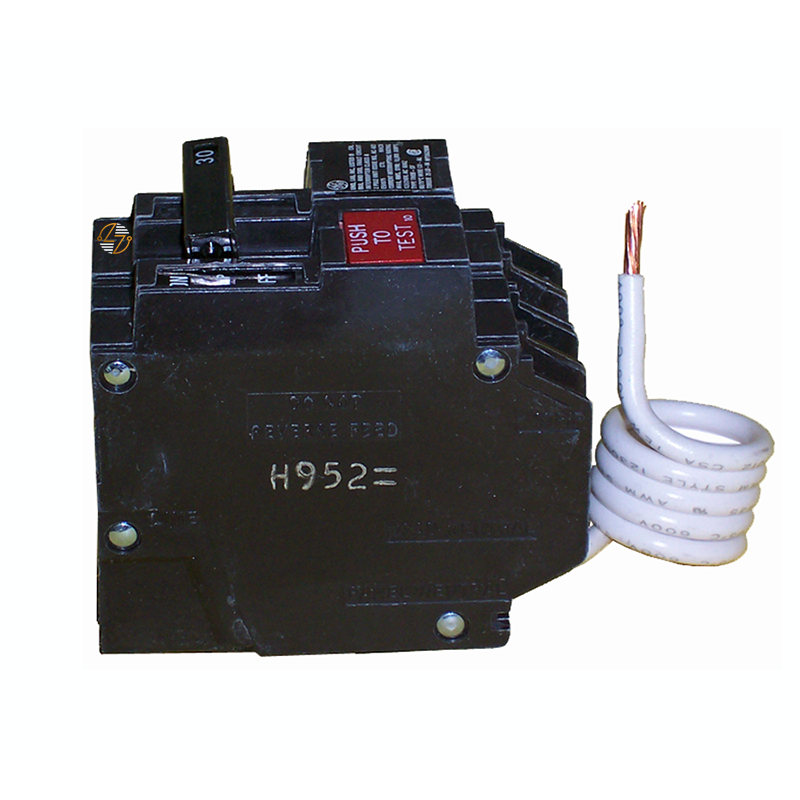

THQL2130GF1 - 30Amp Circuit Breaker

THQL2130GF1 - 30 Amp Circuit Breaker

The THQL2130GF1 is a 30-amp, 2-pole molded case circuit breaker designed for you to use in Q-Line load centers and panelboards. Featuring a plug-on mounting design, this THQL series breaker provides dependable circuit protection for 120/240VAC electrical systems while maintaining compatibility with existing installations that require a THQL form factor. With a 10kA interrupting capacity and HACR rating, the THQL2130GF1 is well-suited for protecting branch circuits serving HVAC equipment, appliances, and other commercial or residential electrical loads. Built for long service life and consistent operation, this circuit breaker is engineered to help you safeguard electrical systems from overloads and short circuits while fitting seamlessly into compatible Q-Line panels.

Key Features and Benefits

• 30 Amp Current Rating: 30 Amp current rating for branch circuit protection.
• 2-Pole Configuration: 2-pole configuration for 120/240VAC applications.
• THQL Series Design: THQL series design for compatibility with designated Q-Line load centers and panelboards.
• Plug-On Installation: Plug-on installation allows for straightforward mounting in compatible equipment.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 120/240VAC.
• HACR Rated: HACR rated for heating, air conditioning, and refrigeration applications.
• Durable Molded Case Construction: Molded case construction designed for durability and long-term use.
• Circuit Protection: Helps protect electrical circuits from overload and short-circuit conditions.
• Compact Footprint: Compact footprint supports efficient use of panel space.


Technical Specifications

• Part Number: THQL2130GF1

• Type: THQL

• Circuit Breaker Style: Molded Case Circuit Breaker

• Mounting Type: Plug-On

• Poles: 2

• Amperage Rating: 30A

• Voltage Rating: 120/240VAC

• Interrupting Capacity: 10kA

• HACR Rated: Yes

• Product Line: Q-Line

• Dimensions:
  • Height: 3.31 in.
  • Width: 2.00 in.
  • Depth: 2.81 in.

Material Compliance and Certifications

• HACR Rated: HACR (Heating, Air Conditioning, and Refrigeration) Rated.
• Equipment Compatibility: Manufactured for use in compatible Q-Line electrical distribution equipment.
• Industry Standards: Designed to meet applicable industry standards for molded case circuit breaker applications.
• Installation Compliance: Intended for installation and use in accordance with local electrical codes and manufacturer specifications.


Where It Works Best

• The THQL2130GF1 is commonly used in residential, commercial, and light industrial electrical systems where a 30A, 2-pole circuit breaker is required. It is particularly suitable for HVAC equipment, air conditioning systems, refrigeration circuits, water heaters, and other 120/240VAC branch circuit applications. Its THQL plug-on configuration makes it an ideal form, fit, and functional replacement for compatible Q-Line panel installations where maintaining equipment compatibility is important.
