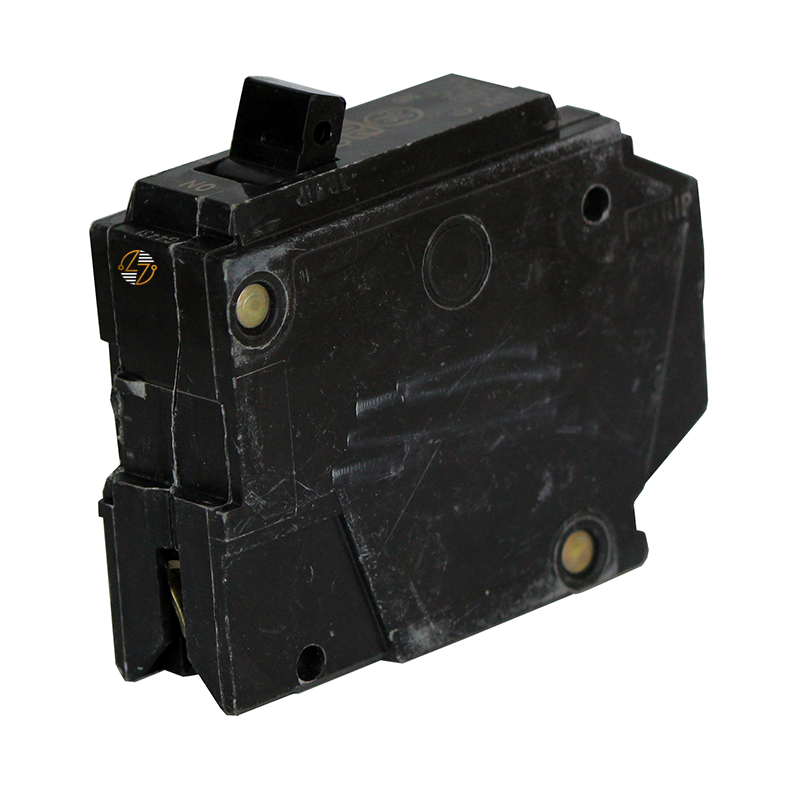

THQL1160 - 60Amp Circuit Breaker

THQL1160 - 60 Amp Circuit Breaker

The THQL1160 circuit breaker is a dependable 60-amp, 1-pole molded case circuit breaker designed for you to use in Q-Line load centers and panelboards. Engineered to provide reliable overcurrent and short-circuit protection, this breaker helps you safeguard electrical systems from damage caused by overloads and fault conditions. Its compact plug-on Design allows for straightforward installation while maintaining a secure connection within compatible electrical distribution equipment.

Built for 120VAC applications and featuring a 10kA interrupting capacity, the THQL1160 is well-suited for residential, commercial, and light industrial environments where consistent circuit protection is essential. The breaker is also HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment applications. With its durable molded case construction and proven Q-Line design, the THQL1160 offers dependable performance for protecting branch circuits and connected equipment while supporting the long-term reliability of your electrical system.

Key Features and Benefits

• 60 Amp Rating: For higher-capacity branch circuit protection.
• Single-Pole Design: Is ideal for 120VAC electrical applications.
• Q-Line Compatibility: For use in compatible Q-Line load centers and panelboards.
• Plug-On Installation: Enables quick and secure mounting.
• 10kA Interrupting Capacity: Helps protect against short-circuit faults.
• HACR Rated: For heating, air conditioning, and refrigeration applications.
• Molded Case Construction: Is designed for long-lasting performance and durability.
• Helps Protect: Wiring, equipment, and electrical systems from overloads and short circuits.


Technical Specifications

• Part Number: THQL1160

• Type: THQL

• Product Category: Molded Case Circuit Breaker

• Poles: 1

• Amperage Rating: 60 Amps

• Voltage Rating: 120VAC

• Interrupting Rating (A.I.C.): 10kA @ 120VAC

• Mounting Style: Plug-On

• Series: Q-Line

• HACR Rated: Yes

• Dimensions:
  • Height: 3.31 in.
  • Width: 1.00 in.
  • Depth: 2.81 in.

Material Compliance and Certifications

• Application Compliance: The THQL1160 circuit breaker is manufactured for use in electrical distribution systems requiring reliable overcurrent protection.
• HACR Rated: As a HACR-rated device, it is suitable for approved heating, air conditioning, and refrigeration applications.
• Installation Requirements: Users should verify all local code requirements, installation standards, and project specifications to ensure compatibility with the intended application.


Where It Works Best

• Residential electrical panels requiring 60-amp branch circuit protection.
• Commercial building electrical distribution systems.
• HVAC and refrigeration equipment circuits.
• Lighting and power distribution applications.
• Electrical upgrades, maintenance projects, and replacement installations.
• Q-Line load centers and panelboards require a compatible plug-on breaker.
• Whether protecting high-demand branch circuits or supporting HVAC-related installations, the THQL1160 delivers the reliable circuit protection needed to help maintain safe and efficient electrical operation.
