THQL1135 - 35A Circuit Breaker

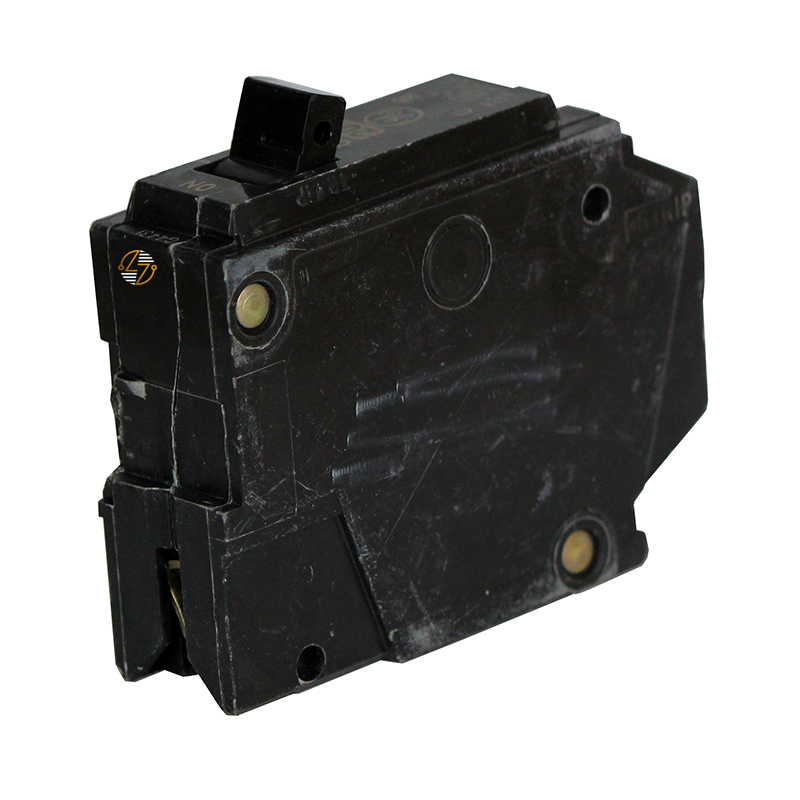

THQL1135 35A Circuit Breaker

The THQL1135 Circuit Breaker from ABB's Q-Line series offers unparalleled protection and reliability for your electrical systems. This single-pole, 35-amp thermal magnetic circuit breaker is specifically designed for both residential and commercial applications, fitting perfectly into load centers and lighting panels. With its compact, one-inch wide per pole design, the THQL1135 provides efficient use of space while delivering robust protection. It features a voltage rating of 120/240V and an interrupting capacity of 10kAIC, ensuring it can handle substantial electrical loads and protect your system from overloads and short circuits. The quick-make/quick-break mechanism and easy-to-spot trip indication enhance both safety and convenience for users.

Key Features and Benefits:

• Compact Design: The one-inch wide per pole design ensures a space-efficient solution for various electrical applications.
• Thermal Magnetic Protection: Combines thermal and magnetic trip elements for comprehensive protection against overloads and short circuits.
• High Interrupting Capacity: Boasts a 10kAIC interrupting rating, ensuring it can handle significant fault currents to protect your system.
• Versatile Voltage Compatibility: Suitable for 120 Vac and 120/240 Vac systems, offering flexibility for diverse electrical setups.
• Quick-Make/Quick-Break Mechanism: Ensures fast switching for enhanced safety and reliability.
• Clear Trip Indication: Features an easy-to-spot trip indication for quick identification of circuit breaker status.
• Additional Features: Includes HACR markings, making it suitable for heating, air conditioning, and refrigeration applications.

Technical Specifications:

• Poles: 1
• Amperage: 35A
• System Voltage: 120 Vac, 120/240 Vac
• Interrupting Rating: 10KAIC at 120 Vac and 120/240 Vac
• Trip Function: LI (Long Time and Instantaneous)
• Frame Type: Q-Line
• Suitable for Reverse Feed: Yes
• Special Markings: HACR (Heating, Air Conditioning, and Refrigeration)
• UL File Number: E11592

Material Compliance and Certifications:

• Compliance: The THQL1135 circuit breaker adheres to the highest industry standards and certifications, ensuring its reliability and safety. It is UL listed (UL File #E11592), providing assurance of its compliance with stringent safety requirements. Additionally, it is GSA compliant, further attesting to its quality and adherence to federal standards.

Suitability:

• The THQL1135 is ideal for a range of applications, including residential, commercial, and light industrial settings. Its robust design and high interrupting capacity make it an excellent choice for load centers and lighting panels. The breaker‰۪s high interrupting capacity and clear trip indication enhance system safety, making it a reliable component in maintaining uninterrupted and safe electrical operations.
