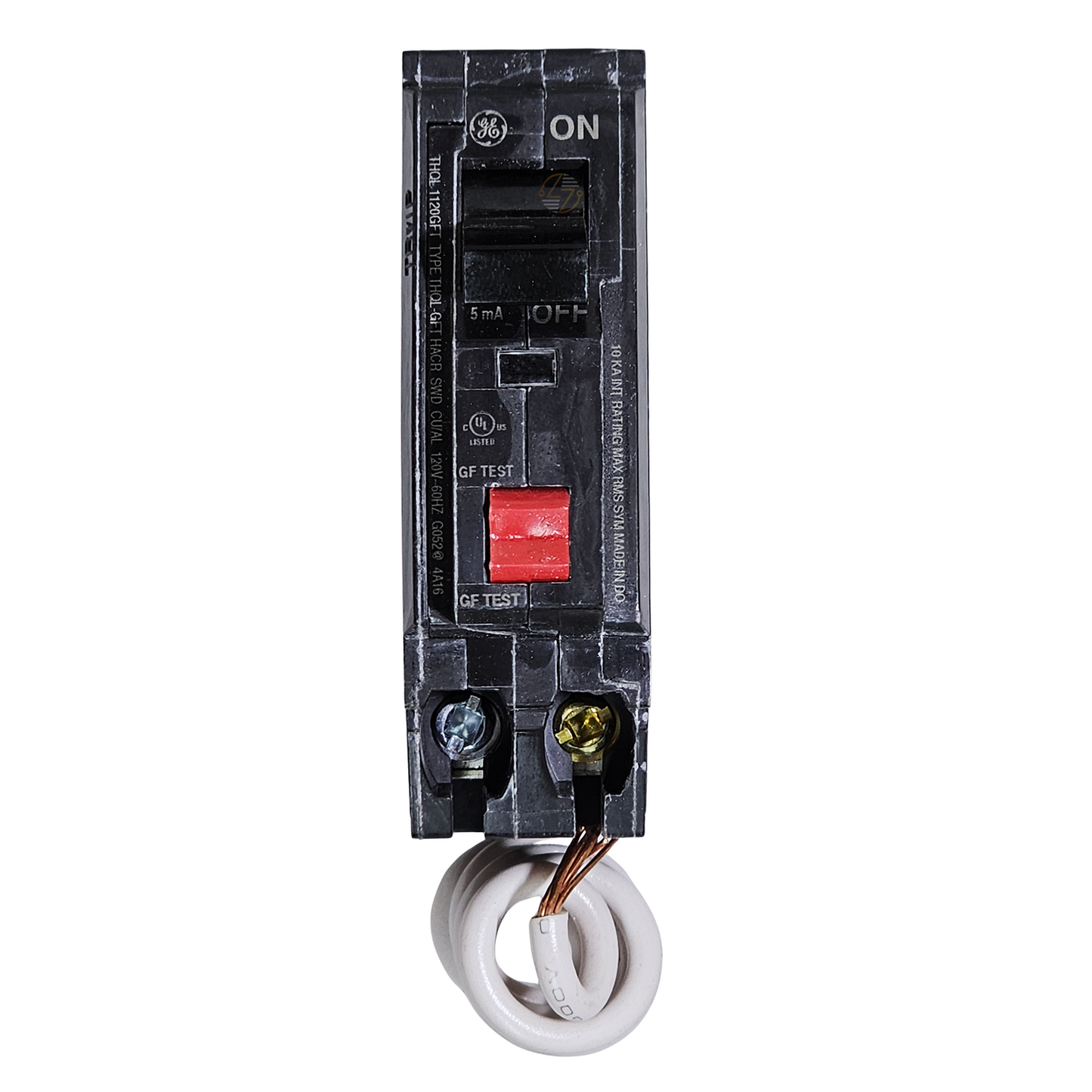

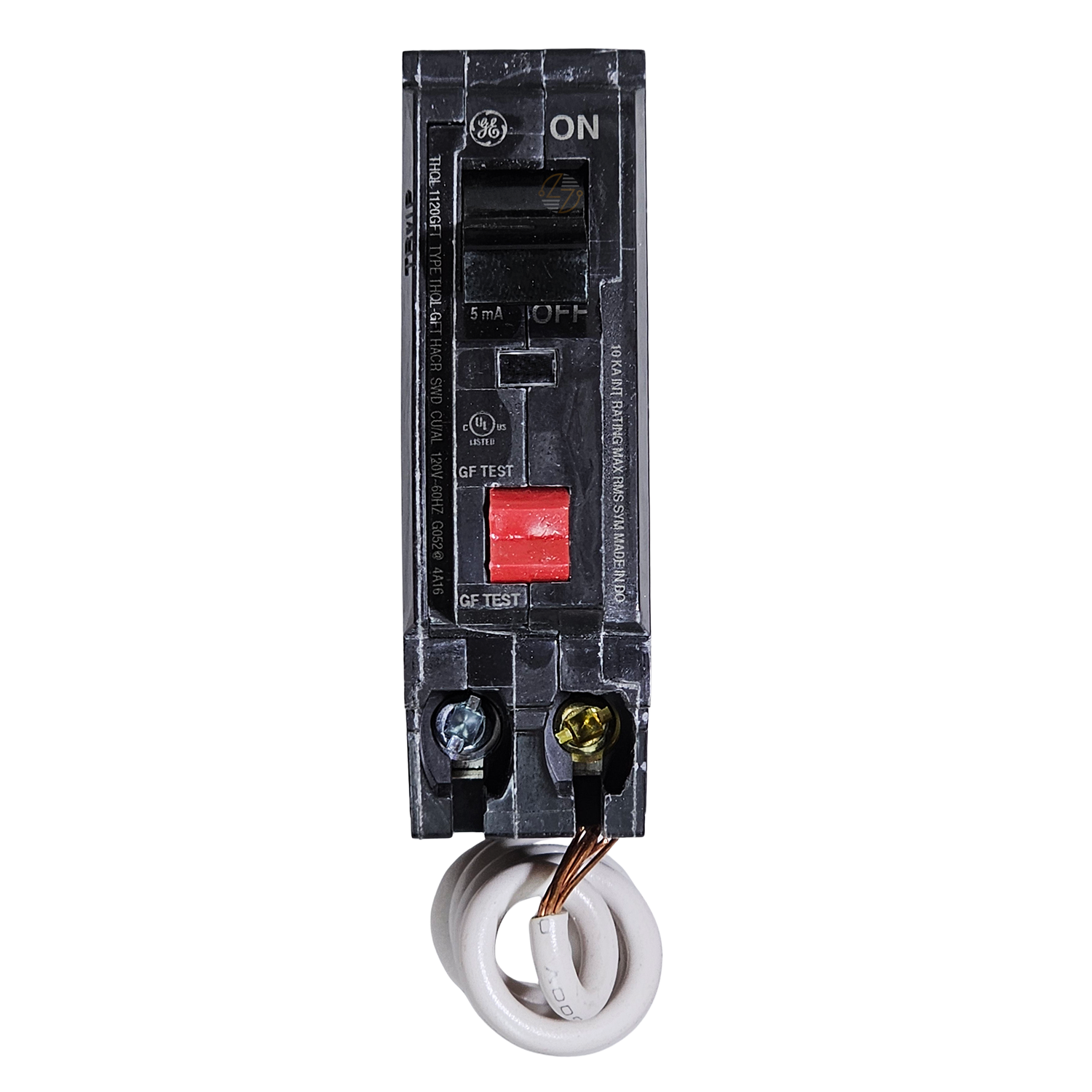

THQL1130GFT - 30Amp GFCI Circuit Breaker

THQL1130GFT - 30Amp GFCI Circuit Breaker

The THQL1130GFT is a 30 amp, single-pole GFCI circuit breaker designed for situations where added protection isn’t optional—it’s required. It helps protect against both overloads and ground faults, which is especially important in areas where moisture is present or where code calls for GFCI protection. This breaker is part of the Q-Line series, known for its straightforward design and dependable performance. It installs easily into compatible load centers with a plug-in connection, and its compact size helps keep your panel organized without wasting space. The internal trip mechanism reacts quickly during a fault, and the trip position is easy to identify when you’re troubleshooting. If you’re replacing a breaker or adding protection to a circuit, this is a practical, workhorse option that gets the job done without complications.

Key Features and Benefits

• Provides ground fault (GFCI) protection to reduce shock risk
• 30 amp, single-pole breaker for 120V circuits
• Plug-in style for quick, secure installation
• Fast trip response for improved safety
• Compact footprint (1” wide) saves panel space
• Easy-to-read trip position for faster diagnostics

Technical Specifications

• Catalog Number: THQL1130GFT
• Voltage Rating: 120V
• Amperage: 30A
• Poles: 1
• Type: GFCI Circuit Breaker
• Mounting: Plug-In
• Dimensions:Width: 1 in
  Height: 2.92 in
  Depth: 3.28 in
• Weight: Approx. 6.5 oz
• Series: Q-Line

Material Compliance and Certifications

• ETIM: EC000228 – Circuit breaker for installation protection
• UNSPSC: 39121601
• WEEE: Not applicable
• CMRT: Available for material disclosure

Where It Works Best

• Bathrooms, kitchens, and laundry areas
• Garages, basements, and outdoor circuits
• Residential load centers
• Light commercial panels
• Any circuit where GFCI protection is required by code
