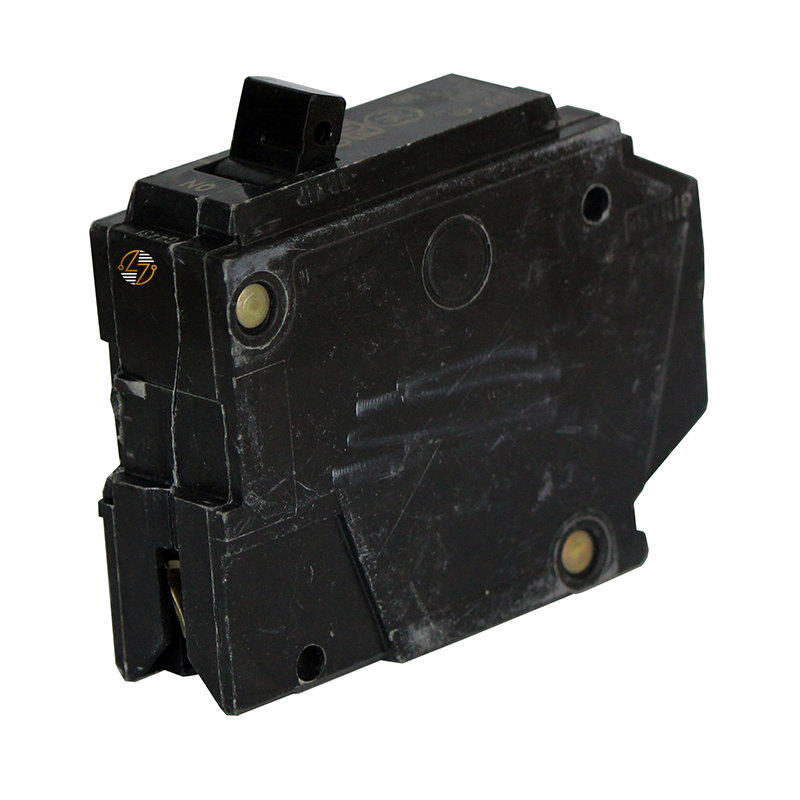

THQL1125 - 25Amp Circuit Breaker

THQL1125 - 25 Amp Circuit Breaker

The THQL1125 circuit breaker is a dependable 25-amp, single-pole, molded-case circuit breaker designed to provide reliable overcurrent and short-circuit protection for your residential, commercial, and light industrial electrical systems. As part of the widely used THQL Q-Line series, this breaker features a convenient plug-on design that allows for straightforward installation in compatible load centers and panelboards. Engineered to help you safeguard electrical circuits from damage caused by overloads and fault conditions, the THQL1125 delivers consistent performance while helping maintain system safety and uptime.

Its compact footprint makes it well-suited for applications with limited panel space. At the same time, its 10 kA interrupting capacity at 120 VAC protects against the fault currents commonly encountered in branch circuit installations. The breaker is also HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment applications where reliable circuit protection is essential. Whether used in new installations, maintenance projects, or electrical system upgrades, the THQL1125 offers a practical solution for protecting 120-volt circuits requiring 25-amp overcurrent protection.

Key Features and Benefits

• 25 amp rating for branch circuit protection
• Single-pole configuration for 120VAC applications
• Part of the trusted THQL Q-Line circuit breaker family
• Plug-on mounting design enables efficient installation
• Molded case construction helps protect internal components
• 10kA interrupting capacity at 120VAC
• HACR rated for heating, air conditioning, and refrigeration equipment applications
• Compact design helps maximize panel space utilization
• Designed to provide dependable overload and short-circuit protection
• Suitable for residential, commercial, and light industrial electrical systems


Technical Specifications

• Part Number: THQL1125

• Type: THQL

• Circuit Breaker Style: Molded Case Circuit Breaker

• Series: Q-Line

• Mounting Style: Plug-On

• Poles: 1

• Amperage Rating: 25 Amps

• Voltage Rating: 120 VAC

• Interrupting Rating (A.I.C.): 10kA @ 120VAC

• HACR Rated: Yes

• Dimensions:
  • Height: 3.31 in.
  • Width: 1.00 in.
  • Depth: 2.81 in.

Material Compliance and Certifications

• HACR (Heating, Air Conditioning, and Refrigeration) Rated: HACR (Heating, Air Conditioning, and Refrigeration) Rated.
• Electrical Distribution System Compatibility: Manufactured for use in compatible electrical distribution systems.
• Molded Case Construction: Molded case construction designed for electrical protection applications.
• Industry Performance Requirements: Built to meet applicable industry performance requirements for circuit protection equipment.


Where It Works Best

• The THQL1125 is ideal for protecting 120-volt branch circuits in residential homes, apartment buildings, commercial facilities, retail spaces, offices, and light industrial environments. It is particularly well-suited for circuits serving lighting, receptacles, dedicated equipment, HVAC-related applications, and other electrical loads that require 25-amp overcurrent protection. Its Q-Line plug-on design makes it a practical choice for panel maintenance, circuit additions, and electrical system upgrades that require compatibility with THQL-style load centers.
