THQL1115AF2 - 15 Amp Circuit Breaker

THQL1115AF2 - 15 Amp Circuit Breaker

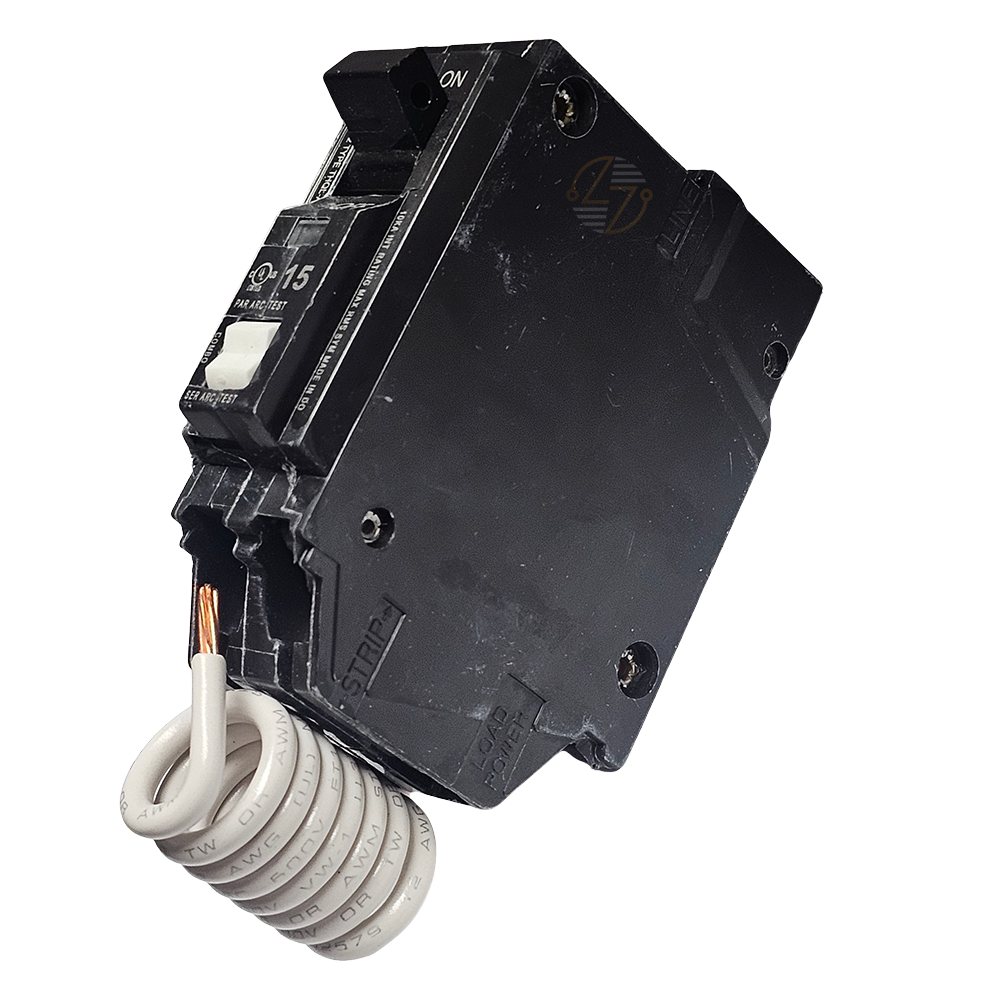

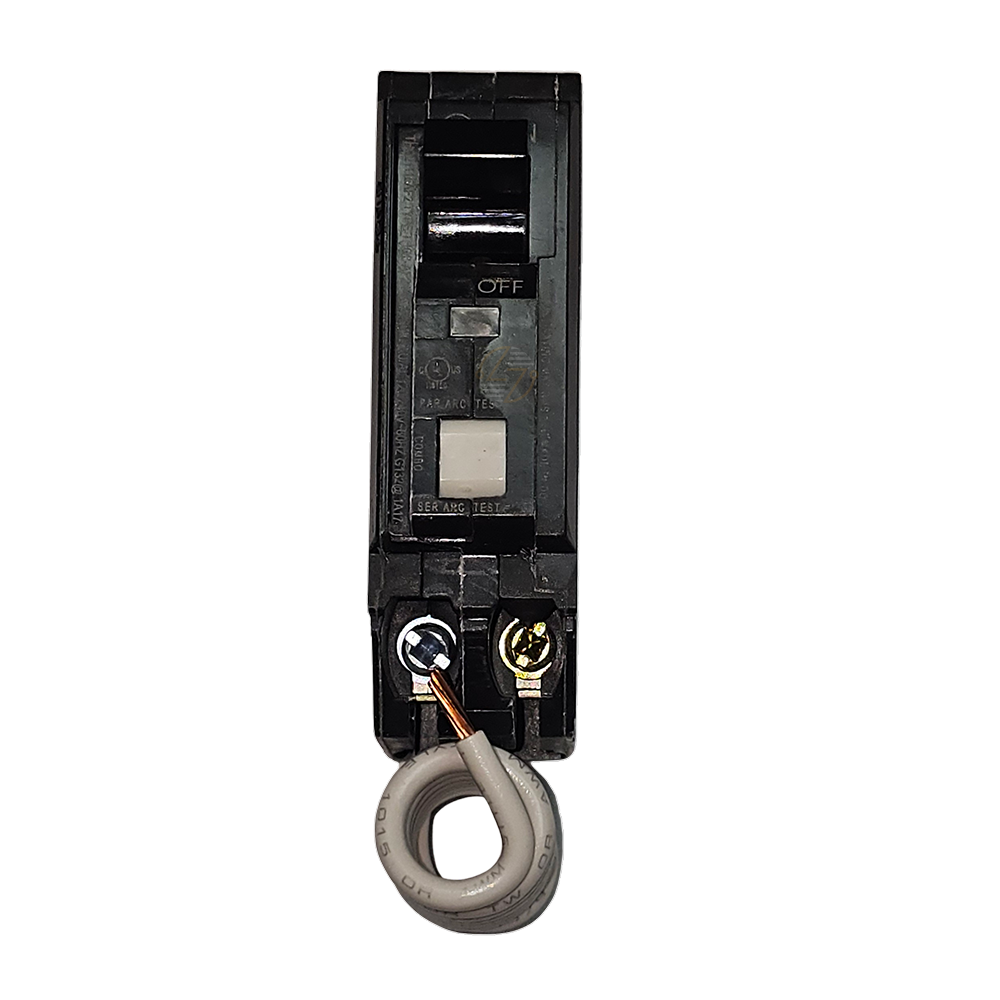

The THQL1115AF2 is a 15-amp, single-pole breaker for GE Q-Line panels and features combination arc-fault protection. In plain terms, it helps catch electrical problems that regular breakers miss—like arcing from worn wires or loose connections. If you’ve ever dealt with nuisance tripping or had to bring a panel up to newer code, you already know why AFCI breakers matter. This one installs easily with a plug-on connection and fits right into standard Q-Line load centers. Once it’s in, it does its job quietly—watching for unsafe conditions and shutting things down if something’s off. It’s a practical choice for everyday residential circuits, especially in areas where arc fault protection is required.

Key Features and Benefits

• Combination AFCI protection: helps detect arc faults before they turn into bigger problems
• 15 amp, single pole: for typical 120V circuits
• Plug-on design: makes installation quick in GE Q-Line panels
• 10k AIC rating: handles fault current reliably
• HACR rated: so that it can be used on HVAC-related circuits
• Narrow width: helps keep panel space manageable
• Designed for steady, dependable operation over time

Technical Specifications

• Part Number: THQL1115AF2

• Amperage: 15 Amp

• Poles: 1

• Voltage: 120 VAC

• Interrupt Rating: 10k AIC

• Frame Type: THQL (Q-Line)

• Mounting Type: Plug-On

• Breaker Type: Combination Arc Fault (AFCI)

• Dimensions: 3.31" H x 1.0" W x 2.81" D

• HACR Rated: Yes


Material Compliance and Certifications

• Meets UL requirements for molded case circuit breakers
• AFCI protection supports compliance with modern electrical codes
• HACR rated for heating and cooling equipment circuits
• Built with standard industry materials for insulation and durability

Where It Works Best

• Residential panels that require arc fault protection
• Bedrooms and living areas (common code requirement)
• Panel upgrades or replacements
• Light commercial setups using GE Q-Line panels
• Circuits tied to HVAC equipment
