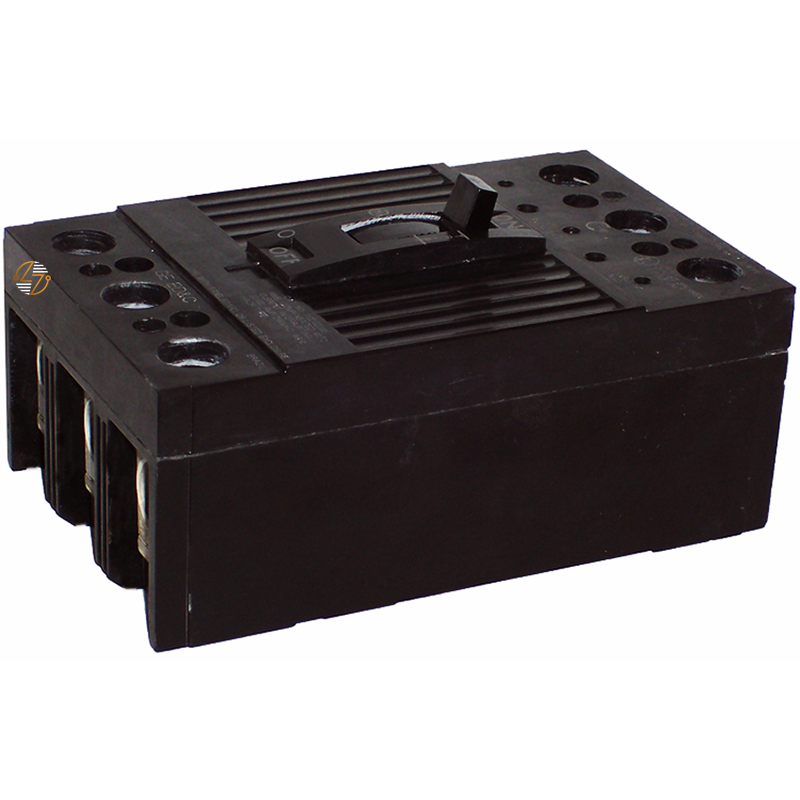

The THQD32225WL is a 225-amp, 3-pole, molded-case circuit breaker designed for dependable overcurrent protection in your commercial, industrial, and institutional electrical distribution systems. Part of the widely used THQD Q-Line family, this breaker features an internal common trip mechanism that simultaneously disconnects all poles when an overcurrent or fault condition is detected, helping you to protect connected equipment and electrical infrastructure.

Built in a cable-in/cable-out (lug-lug) configuration, the THQD32225WL includes both line-side and load-side lugs, simplifying installation and replacement in compatible electrical systems. With a 22kA interrupting capacity at 240VAC, this breaker is engineered to interrupt fault currents within its rated capacity while maintaining safe circuit protection. Its HACR rating also makes it suitable for applications involving heating, air conditioning, and refrigeration equipment that require code-compliant circuit protection.

Constructed for long-term service, the THQD32225WL provides a form, fit, and functional solution for maintaining existing electrical distribution equipment that utilizes THQD-series circuit breakers.

Key Features and Benefits

• 225 Amp Current Rating: 225 Amp current rating for higher-capacity power distribution applications.
• 3-Pole Configuration: 3-pole configuration for three-phase electrical systems.
• THQD Q-Line Design: THQD Q-Line molded case circuit breaker design.
• Internal Common Trip Mechanism: The internal common trip mechanism helps ensure the simultaneous disconnection of all poles during fault conditions.
• 22kA Interrupting Rating: 22kA interrupting rating at 240VAC.
• Cable-In/Cable-Out Construction: Cable-in/cable-out (lug-lug) construction.
• Included Lugs: Includes both line-side and load-side lugs.
• HACR Rated: HACR rated for compatible heating, air conditioning, and refrigeration applications.
• Compatible Equipment Use: Designed for use in compatible Q-Line electrical distribution equipment.
• Long Service Life: Built for long service life in demanding electrical environments.


Technical Specifications

• Part Number: THQD32225WL

• Type: THQD

• Product Category: Molded Case Circuit Breaker

• Series: Q-Line

• Amperage Rating: 225A

• Number of Poles: 3

• Voltage Rating: 240VAC

• Interrupting Capacity (A.I.C.): 22kA @ 240VAC

• Trip Type: Internal Common Trip

• Connection Type: Cable-In/Cable-Out (Lug-Lug)

• Included Accessories: Line and Load-Side Lugs

• HACR Rated: Yes

• Dimensions:
  • Height: 6.56 in.
  • Width: 4.13 in.
  • Depth: 2.75 in.

Material Compliance and Certifications

• HACR Rated: HACR Rated.
• Electrical System Requirements: Manufactured for use in accordance with applicable electrical system requirements and compatible equipment specifications.
• THQD Q-Line Characteristics: Designed to meet the dimensional and operational characteristics associated with THQD Q-Line circuit breaker applications.


Where It Works Best

• The THQD32225WL is well-suited for commercial buildings, industrial facilities, manufacturing operations, HVAC installations, distribution panels, and other three-phase electrical systems that require a 225-amp molded-case circuit breaker. It is commonly used when a compatible THQD Q-Line breaker is needed to provide branch-circuit or feeder protection while maintaining the existing equipment configuration.
