THQD32225 - 225Amp Circuit Breaker

THQD32225 - 225 Amp Circuit Breaker

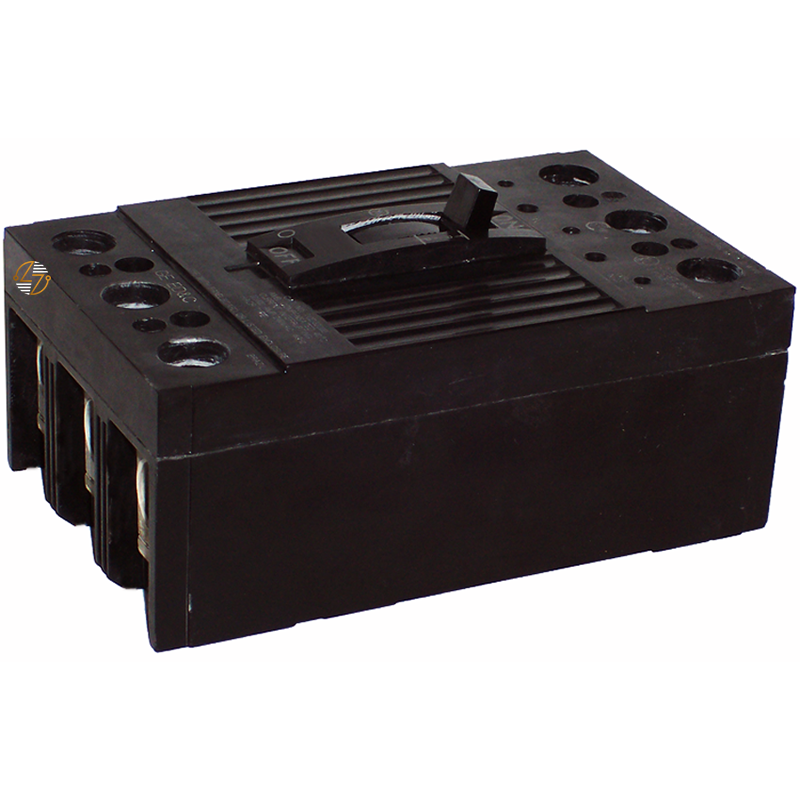

The THQD32225 is a 225-amp, 3-pole molded case circuit breaker designed for use in your commercial, industrial, and institutional electrical distribution systems requiring dependable overcurrent and short-circuit protection. As part of the THQD Q-Line series, this bolt-on circuit breaker features an internal common trip mechanism that simultaneously disconnects all three poles when an overcurrent condition occurs, helping you protect connected equipment and branch circuits from electrical faults. Built for applications operating at up to 240VAC with a 22kA interrupting capacity, the THQD32225 is engineered to provide reliable circuit protection while maintaining compatibility with designated Q-Line panelboards and distribution equipment. The included load-side lugs help you to simplify installation, while the molded case construction is designed to withstand the demands of everyday electrical service. With its HACR rating, this breaker is also suitable for applications involving heating, air conditioning, and refrigeration equipment where code-compliant overcurrent protection is required. Designed with long service life in mind, the THQD32225 provides a form, fit, and functional replacement solution for compatible electrical systems requiring a 225A, 3-pole bolt-on circuit breaker.

Key Features and Benefits

• 225 Amp current rating: for higher-capacity power distribution applications
• 3-pole configuration: provides protection across three-phase electrical systems
• Internal common trip mechanism: disconnects all poles simultaneously during fault conditions
• 22kA interrupting capacity at 240VAC: for short-circuit protection
• Bolt-on mounting design: for secure installation in compatible equipment
• Part of the THQD Q-Line breaker family
• HACR rated: for heating, air conditioning, and refrigeration applications
• Includes load-side lugs: for installation convenience
• Molded case construction: designed for long-term durability
• Suitable as a form, fit, and functional replacement: in compatible systems

Technical Specifications

• Part Number: THQD32225
• Type: THQD
• Circuit Breaker Style: Molded Case Circuit Breaker
• Mounting Type: Bolt-On
• Poles: 3
• Amperage Rating: 225A
• Voltage Rating: 240VAC
• Interrupting Capacity (A.I.C.): 22kA @ 240VAC
• Trip Type: Internal Common Trip
• Series: Q-Line
• HACR Rated: Yes
• Load-Side Lugs: Included
• Height: 6.56 in.
• Width: 4.13 in.
• Depth: 2.75 in.

Material Compliance and Certifications

• HACR (Heating, Air Conditioning, and Refrigeration) Rated
• Manufactured: for use in accordance with applicable electrical distribution and protection requirements
• Designed for installation: in compatible Q-Line electrical equipment
• Molded case construction: for electrical insulation and circuit protection

Where It Works Best

• The THQD32225 is commonly used in:
  • Commercial buildings and office facilities
  • Industrial manufacturing environments
  • Distribution panels and panelboards
  • HVAC and refrigeration equipment circuits
  • Three-phase power distribution systems
  • Electrical infrastructure requiring a 225A bolt-on circuit breaker
  • Maintenance, repair, and replacement projects involving compatible Q-Line equipment
• Its combination of a 225-amp rating, 3-pole protection, common trip functionality, and bolt-on mounting makes it well-suited for protecting feeders, distribution circuits, and equipment operating within compatible three-phase electrical systems.
