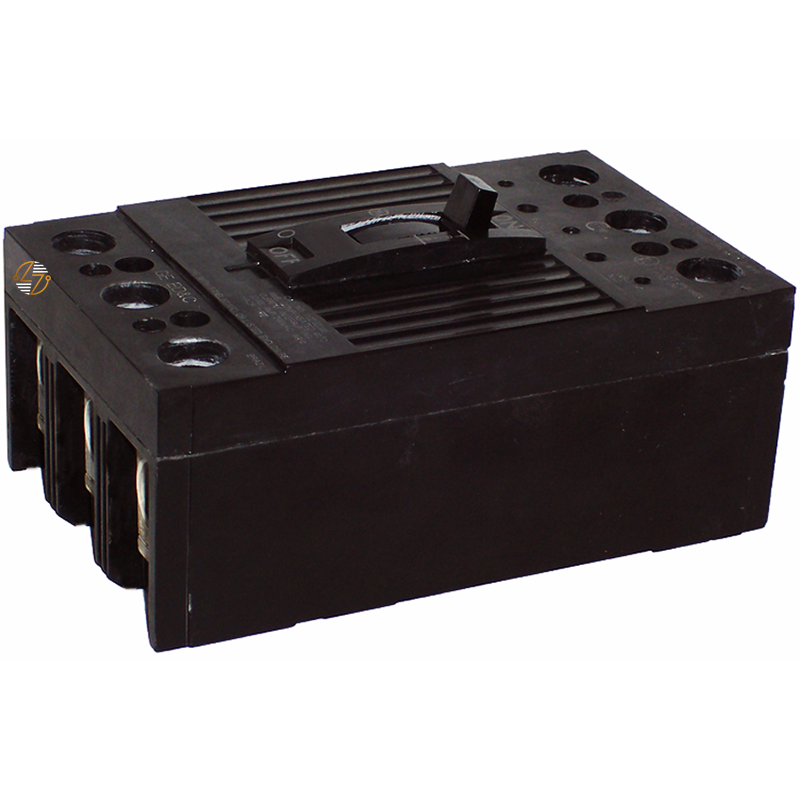

THQD32175WL - 175Amp Circuit Breaker

THQD32175WL - 175 Amp Circuit Breaker

The THQD32175WL is a 175-amp, 3-pole molded-case circuit breaker designed for use in your commercial and industrial electrical distribution systems that require dependable overcurrent and short-circuit protection. As part of the widely used THQD Q-Line series, this breaker features an internal common trip mechanism that simultaneously disconnects all three poles when an overcurrent condition is detected, helping you to protect connected equipment and electrical infrastructure. The cable-in/cable-out lug-lug configuration includes both line-side and load-side lugs, simplifying installation while providing secure conductor termination points. Built for long-term service, the THQD32175WL is a practical replacement solution where matching form, fit, and electrical ratings are important for maintaining existing systems.

Key Features and Benefits

• 175-Amp Current Rating: Suitable for demanding commercial and industrial power distribution applications.
• 3-Pole Configuration: Designed for three-phase electrical systems.
• Internal Common Trip: Helps disconnect all poles simultaneously during fault conditions.
• 22kA Interrupting Capacity: Provides protection at 240VAC against available fault currents within rated applications.
• Q-Line Series Design: Ensures compatibility with designated electrical distribution equipment.
• Cable-In/Cable-Out Construction: Straightforward field wiring with included line-side and load-side lugs.
• HACR Rated: Suitable for use in heating, air conditioning, and refrigeration applications where permitted by code and equipment specifications.
• Molded Case Construction: Built for durability and long service life.

Technical Specifications

• Part Number: THQD32175WL
• Type: THQD
• Circuit Breaker Style: Molded Case Circuit Breaker
• Poles: 3
• Amperes: 175A
• Interrupting Rating: 22kA
• Voltage Rating: 240VAC
• Trip Type: Internal Common Trip
• Configuration: Cable-In/Cable-Out (Lug-Lug)
• Included Accessories: Line and Load-Side Lugs
• HACR Rated: Yes
• Product Series: Q-Line
• Height: 6.56 in.
• Width: 4.13 in.
• Depth: 2.75 in.

Material Compliance and Certifications

• HACR Rated: For qualifying heating, air conditioning, and refrigeration applications.
• Industry Standards: Manufactured and tested to applicable industry standards for molded case circuit breakers.
• Installation Compliance: Designed for installation and use in accordance with applicable electrical codes, equipment ratings, and manufacturer specifications.
• Usage Limits: Intended for use within the breaker’s published electrical ratings and approved system configurations.

Where It Works Best

• The THQD32175WL is well-suited for commercial facilities, industrial buildings, manufacturing operations, HVAC distribution systems, panelboards, switchboards, and other three-phase power distribution applications requiring a 175A, 3-pole circuit breaker. It is particularly useful when maintaining or replacing existing equipment where matching the original breaker type, ampere rating, pole configuration, and interrupting capacity is essential for proper system operation and compatibility.
