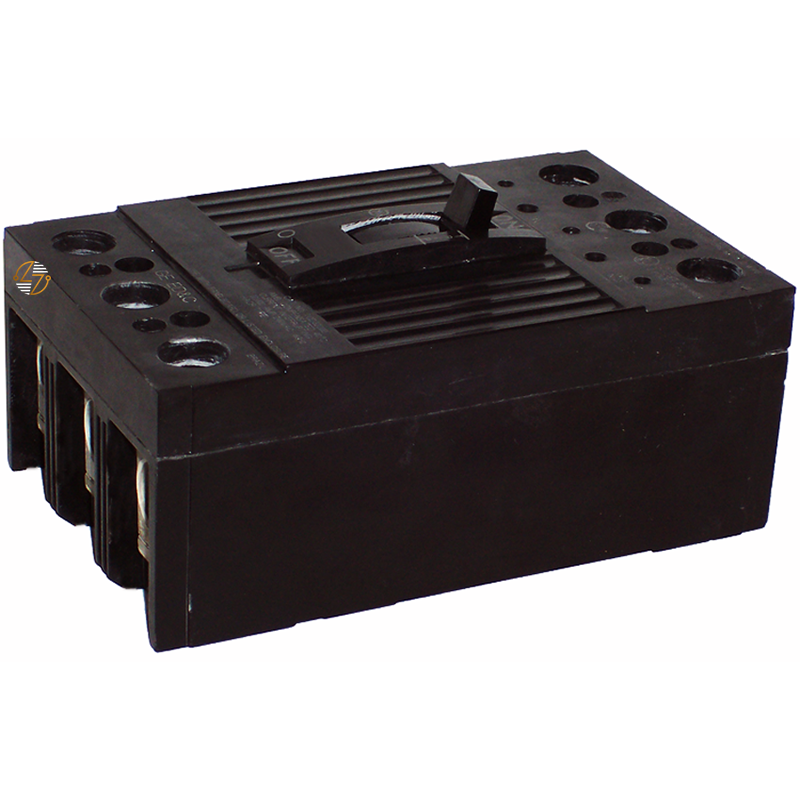

THQD32175 - 175Amp Circuit Breaker

THQD32175 - 175 Amp Circuit Breaker

Engineered for dependable operation in legacy electrical systems, the THQD32175 is a 3-pole, 175-amp molded case circuit breaker designed to fit seamlessly into Q-Line panels. Built to last, this breaker features load-side lugs and an internal common trip, providing a practical solution for safely and efficiently managing electrical loads. HACR-rated and bolt-on-ready, the THQD32175 ensures easy installation and dependable form, fit, and function replacement for existing setups. Whether you’re maintaining commercial, industrial, or residential systems, this breaker is designed for straightforward integration and reliable operation.

Key Features and Benefits

• 3-Pole Configuration: Ideal for three-phase circuits, balancing load and protection.
• Internal Common Trip: Simultaneously disconnects all poles in the event of a fault.
• Load-Side Lugs Included: Simplifies wiring and enhances installation flexibility.
• HACR Rated: Suitable for heating, air conditioning, and refrigeration applications.
• Bolt-On Design: Ensures a secure fit within Q-Line panelboards.

Technical Specifications

• Amperage: 175A
• Poles: 3
• Voltage & A.I.C. Rating: 22k @ 240VAC
• Dimensions: Height 6.56" x Width 4.13" x Depth 2.75"
• Type: THQD Molded Case Circuit Breaker

Material Compliance and Certifications

• UL Listed
• CSA Certified
• Complies with NEC and HACR standards for safe, regulated electrical applications

Where It Works Best

• The THQD32175 is suited for Q-Line panel installations in commercial buildings, industrial facilities, and residential systems requiring a reliable replacement or form-fit solution. It integrates well with legacy systems, providing reliable electrical protection for motors, HVAC systems, and other heavy-load applications.
