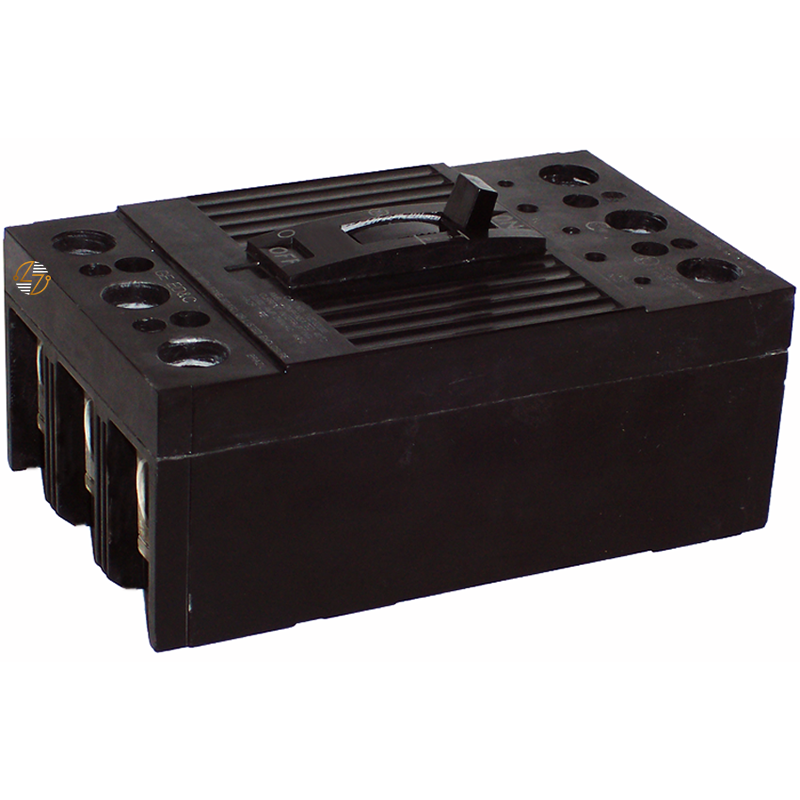

THQD32150WL - 150A Circuit Breaker

THQD32150WL 150A Circuit Breaker

The THQD32150WL Circuit Breaker is a top-tier solution designed for demanding electrical systems. This 3-pole, 240V circuit breaker is engineered to deliver exceptional performance with a 150 AMP rating and a robust interrupting capacity of 22K AIC. Perfect for both commercial and industrial environments, this breaker ensures reliable protection against overcurrents and short circuits. Featuring copper/aluminum line and load lugs, the THQD32150WL facilitates secure and efficient installation, making it an essential component for your electrical infrastructure.

Key Features and Benefits:

• High Amperage Capacity: Capable of handling up to 150 AMPs, this circuit breaker is ideal for heavy-duty applications requiring substantial electrical load management.
• Exceptional Interrupting Capacity: With a 22K AIC rating, the THQD32150WL provides superior protection, minimizing the risk of electrical faults and enhancing system safety.
• Versatile Voltage Compatibility: Supports 120 Vac, 120/240 Vac, and 240 Vac systems, offering flexibility for a wide range of applications.
• Durable and Reliable: Built with high-quality materials, this thermal magnetic molded case circuit breaker ensures long-lasting performance and reliability in various electrical environments.
• Easy Installation: Equipped with Cu/Al line and load lugs, allowing for straightforward and secure connections, ensuring quick and efficient setup.

Technical Specifications:

• Amperage: 150 A
• Poles: 3
• System Voltage: 120 Vac, 120/240 Vac, 240 Vac
• Interrupting Rating: 22 KAIC for 120 Vac, 120/240 Vac, and 240 Vac
• Trip Style: Non-Interchangeable
• Trip Function: LI (Long Time and Instantaneous)
• Lugs: TCAL25
• Special Markings: HACR (Heating, Air Conditioning, and Refrigeration)

Material Compliance and Certifications:

• Compliance: UL File #E11592: Certified to meet stringent industry standards, ensuring safety and performance.
• Suitable for Reverse Feed: Provides flexibility in installation, accommodating various system designs and configurations.

Suitability:

• The THQD32150WL Circuit Breaker is ideal for a range of applications, from commercial buildings to industrial facilities. Its high interrupting capacity and durable construction make it the perfect choice for protecting critical electrical systems, ensuring operational continuity and safety.
