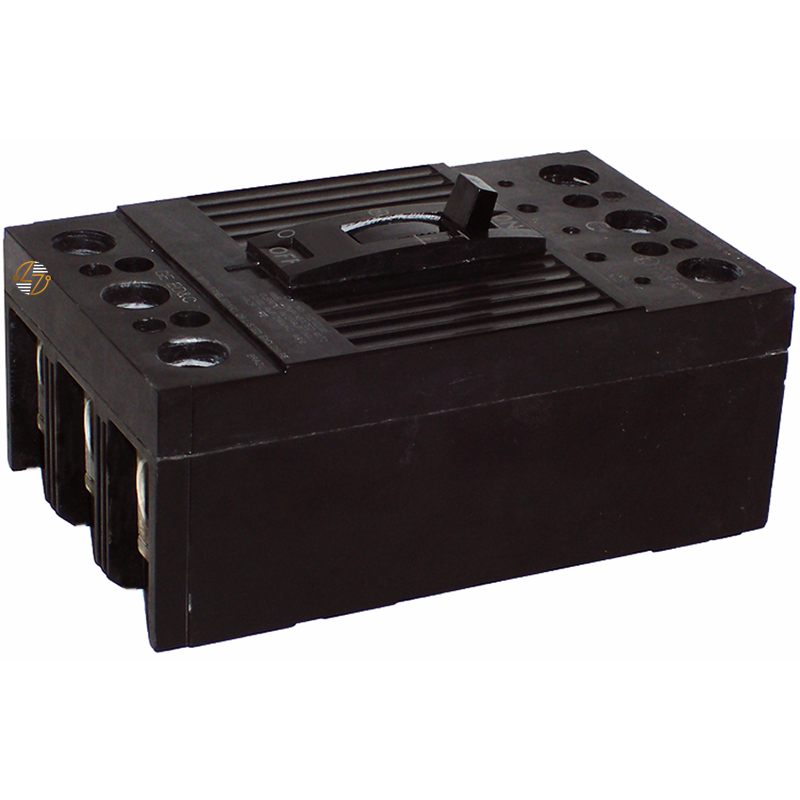

THQD32100WL - 100A Circuit Breaker

THQD32100WL 100A Circuit Breaker

Ensure safety and reliability in electrical circuits with the THQD32100WL, a standout in the TQD series of thermal magnetic molded case circuit breakers. Designed for robust performance, this model features a Q-Line frame with a non-interchangeable trip function and is engineered to support system voltages of 120 Vac, 120/240 Vac, and 240 Vac. With a solid 100 A amperage and three poles, it caters to a diverse range of setups, making it ideal for commercial and residential applications alike.

Key Features and Benefits:

• Powerful Performance: Rated at 22 KAIC for its interrupting rating across multiple voltages, ensuring dependable protection against overcurrents.
• Longevity and Durability: Equipped with TCAL25 lugs, this circuit breaker is suitable for reverse feed use, offering flexible installation and prolonged service life.
• Safety Compliant: The THQD32100WL is compliant with HACR specifications and is designed for fixed long time and instantaneous trips, enhancing protective measures.

Technical Specifications:

• Trip Function: LI (Long-Time and Instantaneous)
• Amperage: 100 A
• System Voltage: 120 Vac, 120/240 Vac, 240 Vac
• Interrupting Rating: 22 KAIC at all voltage levels
• Lugs: TCAL25, suitable for Cu/Al line and load
• Poles: 3

Material Compliance and Certifications:

• This product meets rigorous standards, ensuring it is crafted from materials that are both durable and safe for its required applications. While not specifically listed as GSA compliant, it holds a prominent place in setups demanding high reliability.

Suitability and Applications:

• Ideal for both new constructions and renovation projects, the THQD32100WL offers a fixed trip setting and is suitable for a wide array of electrical distribution systems. Its ability to handle high capacities makes it an excellent choice for protecting appliances and heavy-duty machines.

With its robust build and comprehensive safety features, the THQD32100WL circuit breaker from our Thermal Magnetic series is an essential component for any electrical installation requiring stringent safety and reliable circuit protection.
