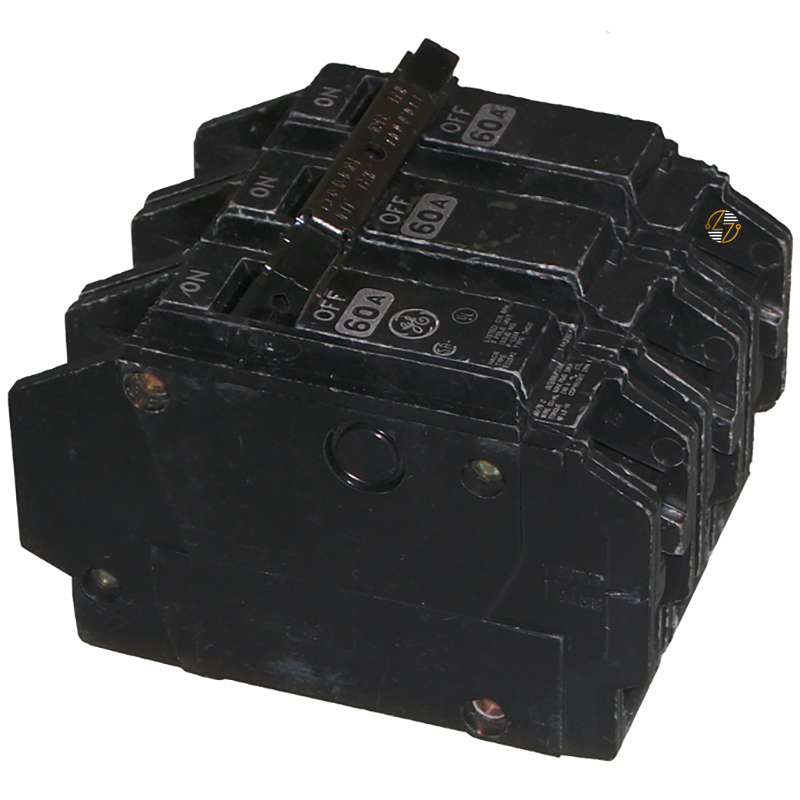

THQC32060WL - 60Amp Circuit Breaker

THQC32060WL - 60 Amp Circuit Breaker

The THQC32060WL is a 60-amp, 3-pole molded case circuit breaker used for overcurrent protection in your 240VAC electrical systems. It features an internal common trip mechanism that opens all poles simultaneously when an overload or short circuit occurs. The breaker is part of the Q-Line family and utilizes a cable-in/cable-out (lug-lug) connection design. With a 10kA interrupting rating at 240VAC, the THQC32060WL is suitable for a variety of commercial and industrial power distribution applications. The compact design helps you to conserve panel space while providing the circuit protection required for three-phase systems. It is also HACR rated for use in approved heating, air conditioning, and refrigeration equipment. Whether being installed in new equipment or used as a replacement breaker, the THQC32060WL provides a straightforward solution for applications requiring a 60-amp, 3-pole breaker with common-trip operation.

Key Features and Benefits

• 60 amp current rating
• 3-pole configuration
• Internal common trip design
• 10kA interrupting capacity at 240VAC
• Cable-in/cable-out (lug-lug) connections
• HACR rated
• Q-Line series breaker
• Molded case construction

Technical Specifications

• Part Number: THQC32060WL
• Type: THQC
• Series: Q-Line
• Amperage: 60 Amps
• Poles: 3
• Voltage Rating: 240VAC
• Interrupting Rating: 10kA @ 240VAC
• Trip Type: Internal Common Trip
• Connection Type: Cable-In / Cable-Out (Lug-Lug)
• HACR Rating: Yes
• Dimensions:
  • Height: 3.94 in.
  • Width: 3.00 in.
  • Depth: 2.63 in.
• Construction: Molded Case Circuit Breaker

Material Compliance and Certifications

• HACR Rated: The THQC32060WL is HACR rated for approved heating, ventilation, air conditioning, and refrigeration applications. Installation should be performed in accordance with applicable electrical codes and equipment requirements.

Where It Works Best

• Common applications include:
  • Commercial buildings
  • Industrial facilities
  • HVAC equipment
  • Refrigeration systems
  • Distribution panels
  • Three-phase branch circuits
  • Electrical maintenance and replacement projects
  The THQC32060WL is intended for applications requiring a 60 amp, 3-pole circuit breaker with a 10kA interrupting rating at 240VAC.
