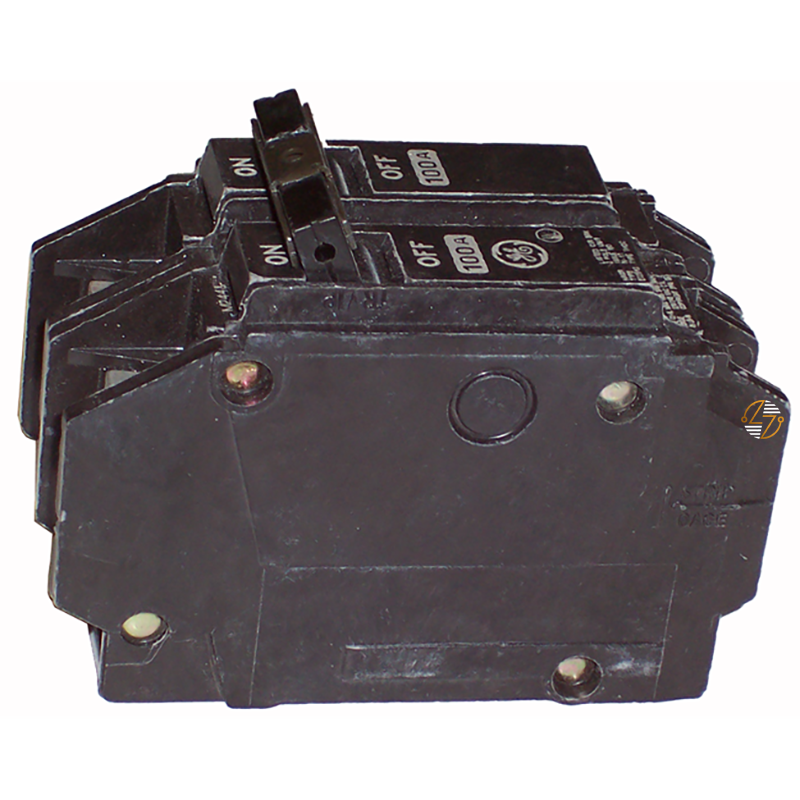

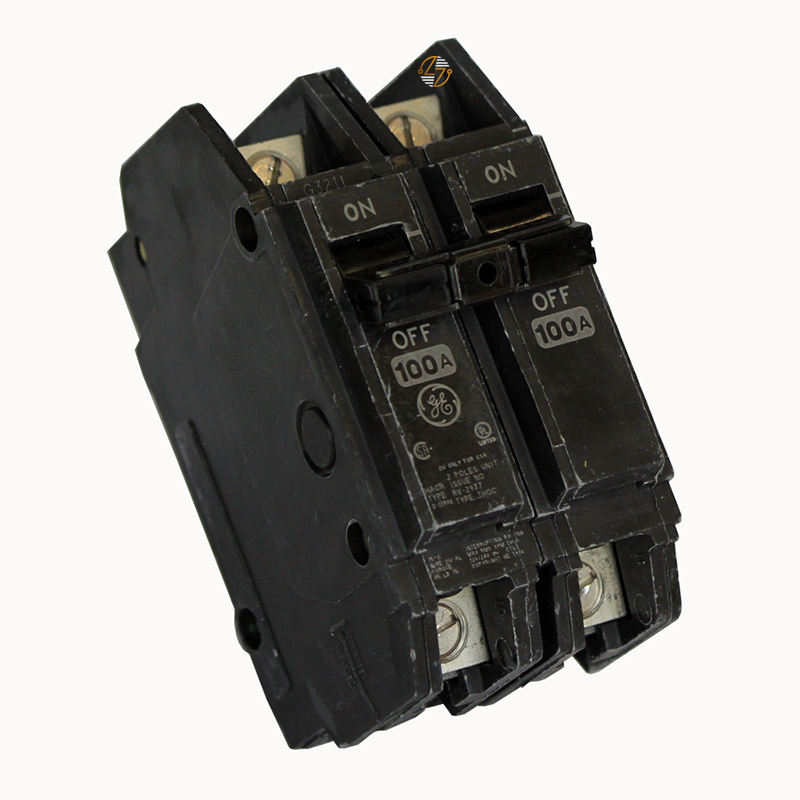

THQC2190WL - 90Amp Circuit Breaker

THQC2190WL - 90 Amp Circuit Breaker

The THQC2190WL circuit breaker is a 90-amp, 2-pole molded case circuit breaker designed to provide dependable overcurrent and short-circuit protection in your residential, commercial, and light industrial electrical distribution systems. As part of the trusted THQC Q-Line family, this breaker combines space-efficient performance with reliable circuit protection for applications requiring a higher amperage solution. Featuring an internal common trip mechanism, the THQC2190WL simultaneously disconnects both poles during a fault condition, helping you to protect connected equipment and wiring from damage while supporting electrical system safety.

Built with a cable-in/cable-out (lug-lug) configuration, the THQC2190WL offers convenient field installation and secure conductor termination. Its HACR rating makes it suitable for heating, air conditioning, and refrigeration equipment applications where dependable circuit protection is essential. With a 10kA interrupting capacity at 120/240VAC, this breaker is engineered to interrupt fault currents safely and maintain system integrity in demanding electrical environments.

Key Features and Benefits

• 90 Amp Rating: Ideal for higher-capacity branch circuits and equipment protection.
• 2-Pole Design: Provides simultaneous protection for both ungrounded conductors in 120/240VAC systems.
• Internal Common Trip Mechanism: Trips both poles together during overloads or short circuits for enhanced protection.
• 10kA Interrupting Capacity: Helps safely interrupt fault currents and minimize potential electrical damage.
• Q-Line Compatibility: Designed for use in compatible Q-Line load centers and panelboard applications.
• Cable-In/Cable-Out (Lug-Lug) Configuration: Simplifies conductor connections and installation flexibility.
• HACR Rated: Suitable for HVAC, refrigeration, and air conditioning equipment applications.
• Compact Molded Case Construction: Delivers reliable performance while conserving valuable panel space.


Technical Specifications

• Part Number: THQC2190WL

• Type: THQC

• Circuit Breaker Type: Molded Case Circuit Breaker

• Poles: 2

• Amperage Rating: 90 Amps

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10kA

• Trip Type: Internal Common Trip

• Connection Type: Cable-In/Cable-Out (Lug-Lug)

• HACR Rated: Yes

• Product Family: Q-Line

• Dimensions:
  • Height: 3.94 in.
  • Width: 2.00 in.
  • Depth: 2.63 in.

Material Compliance and Certifications

• Industry Standards: The THQC2190WL is manufactured to meet applicable industry standards for molded case circuit breakers and is designed for use in accordance with applicable electrical codes and installation requirements.
• HACR Rating: Its HACR rating supports use with heating, ventilation, air conditioning, and refrigeration equipment where approved by system specifications and local code requirements.
• Compatibility Verification: Always verify compatibility with the intended panelboard or load center before installation.


Where It Works Best

• The THQC2190WL is well-suited for protecting higher-amperage branch circuits in residential, commercial, and light industrial environments. Common applications include HVAC equipment, air conditioning condensers, refrigeration systems, subfeed circuits, distribution equipment, and other electrical loads requiring a 90A, 2-pole circuit breaker. Its combination of dependable protection, Q-Line compatibility, and lug-lug connectivity makes it a practical choice for both new installations and maintenance projects.
