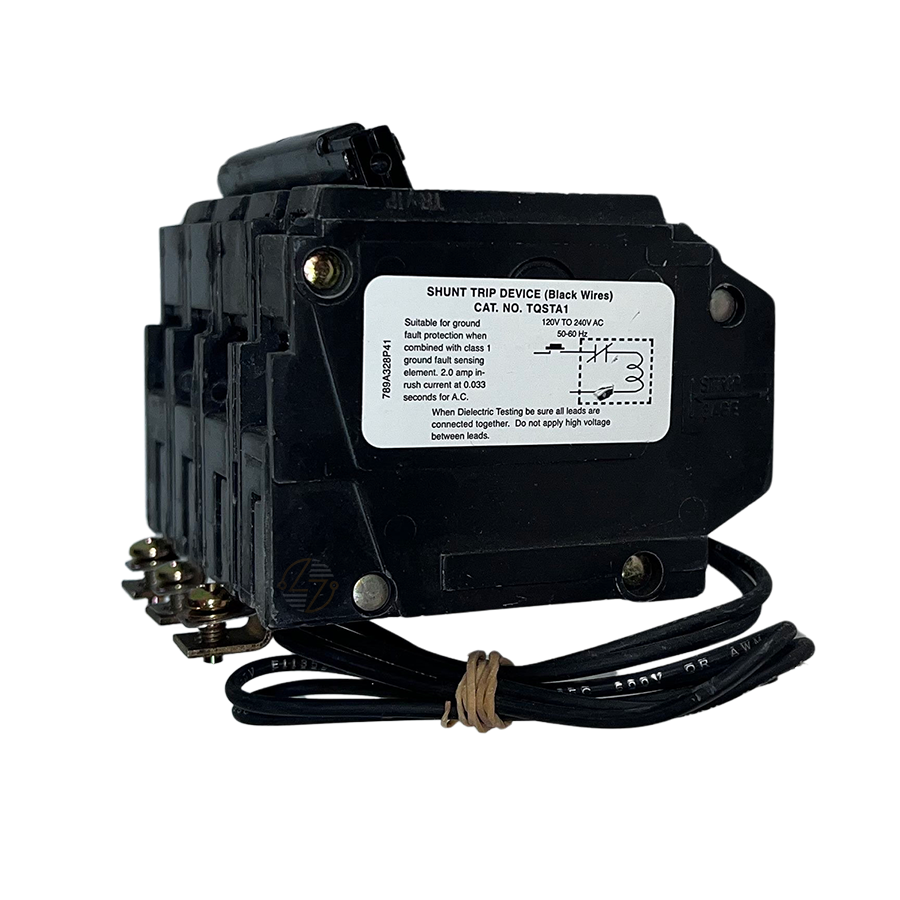

THQB32100ST1 - 100A Circuit Breaker

THQB32100ST1 100A Circuit Breaker

Introducing the THQB32100ST1, a state-of-the-art Q-Line Miniature Circuit Breaker, expertly engineered for both residential and commercial electrical protection. Designed to offer robust defense against electrical faults, this circuit breaker operates with a 100 ampere continuous current rating and an impressive interrupting rating of 10 kAIC at both 120 and 240 volts. The THQB32100ST1 features a three-pole construction ideal for multi-phase systems, ensuring comprehensive coverage and safety.

Key Features and Benefits:

• Compact Design: At just one inch wide per pole, this breaker is designed to save valuable space while providing full functionality.
• Quick-make/Quick-break Mechanism: Enhances reliability and performance by ensuring quick responses to electrical faults.
• Common Trip Bar: Ensures simultaneous tripping of all poles, providing consistent protection across all phases.
• Easy Trip Indication: Allows for quick visual identification of tripped circuits, simplifying troubleshooting and maintenance.
• Bolt-on Installation: Offers secure attachment and consistent conductivity with bus connections in load centers and lighting panels.

Technical Specifications:

• Amperage: 100 A
• System Voltage: 120/240 Vac and 240 Vac
• Interrupting Rating: 10 KAIC at 120 Vac, 120/240 Vac, and 240 Vac
• Poles: 3
• Trip Function: LI - Long Time and Instantaneous Fixed
• Suitable for Reverse Feed: Yes

Material Compliance and Certifications:

• The THQB32100ST1 is compliant with UL standards (UL File E11592), ensuring its construction and performance meet rigorous safety and quality criteria.

Suitability:

• Designed for both residential and commercial applications, it is suitable for protecting circuits in a variety of settings. Its robust construction makes it an ideal choice for demanding applications, including use in HID (High-Intensity Discharge) lighting applications.

By incorporating this circuit breaker into your electrical system, you ensure enhanced safety, reliability, and efficiency. Whether you are upgrading an existing panel or installing new equipment, the THQB32100ST1 provides the performance you can trust. Explore more about our Q-Line circuit breakers and secure your electrical investments with confidence.
