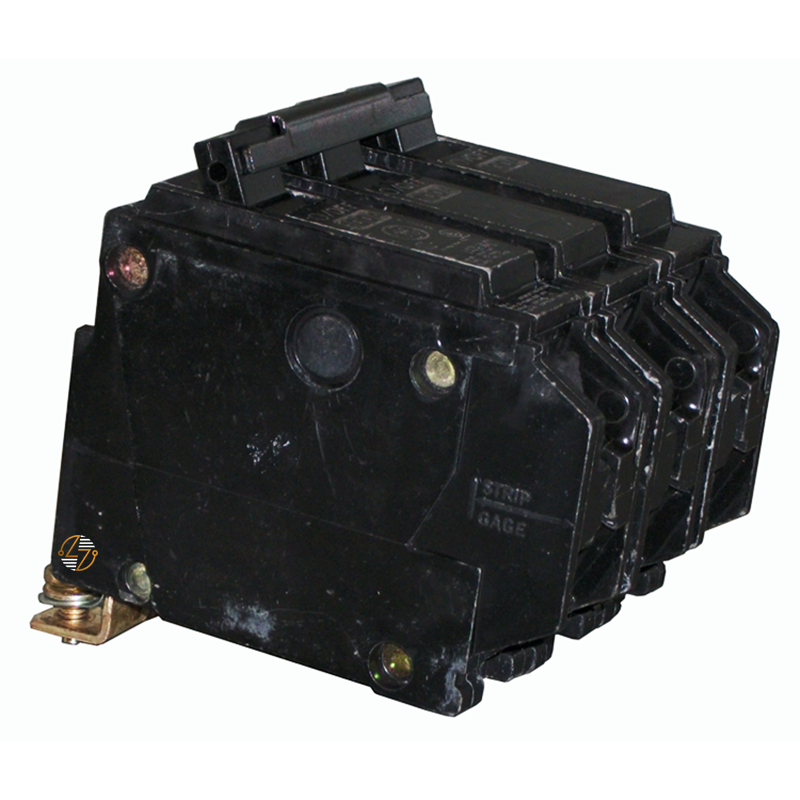

THQB32030 - 30A Circuit Breaker

THQB32030 - 30A Circuit Breaker

The THQB32030 is a 30-amp, 3-pole bolt-on circuit breaker built for protecting your three-phase electrical circuits from overloads and short circuits. As part of the Q-Line THQB series, it combines a secure bolt-on connection with a compact footprint, making it a practical choice for commercial and industrial panelboard applications.

Rated for 10,000 AIR at 240VAC, this molded case circuit breaker is designed to interrupt fault currents before they can damage connected equipment or wiring. The bolt-on mounting style helps you to create a solid electrical connection, which can be especially important in environments where vibration or frequent load cycling is present.

Because the THQB32030 is HACR rated, it is commonly used with heating, ventilation, air conditioning, and refrigeration equipment. It is equally at home in office buildings, retail facilities, warehouses, manufacturing spaces, and other locations where reliable circuit protection is required.

Key Features and Benefits

• 30 Amp current rating
• 3-pole configuration for three-phase systems
• 10kA interrupting rating at 240VAC
• Bolt-on design for a secure panelboard connection
• HACR rated for HVAC and refrigeration applications
• Molded case construction
• Compatible with designated Q-Line panelboard systems
• Compact size helps conserve panel space


Technical Specifications

• Part Number: THQB32030

• Series: Q-Line

• Type: THQB

• Amperage: 30 Amps

• Number of Poles: 3

• Voltage Rating: 240VAC

• Interrupting Rating: 10kA @ 240VAC

• Mounting Style: Bolt-On

• Construction: Molded Case Circuit Breaker

• HACR Rated: Yes

• Dimensions:
  • Height: 3.5 in.
  • Width: 3.0 in.
  • Depth: 2.81 in.

Material Compliance and Certifications

• HACR Rated: HACR rated for heating, air conditioning, and refrigeration equipment.
• Industry Standards: Manufactured to applicable industry standards for molded case circuit breakers.
• Installation Requirements: Intended for installation in compatible electrical distribution equipment and panelboards.
• Code Compliance: Suitable for use in accordance with local electrical codes and manufacturer requirements.


Where It Works Best

• The THQB32030 is frequently used in commercial and industrial electrical systems that require three-phase branch circuit protection. Typical applications include HVAC equipment, air handling units, refrigeration systems, motor loads, distribution panels, and general power circuits. Its 30 Amp rating makes it a good fit for protecting equipment that needs consistent overcurrent protection without taking up unnecessary panel space.
