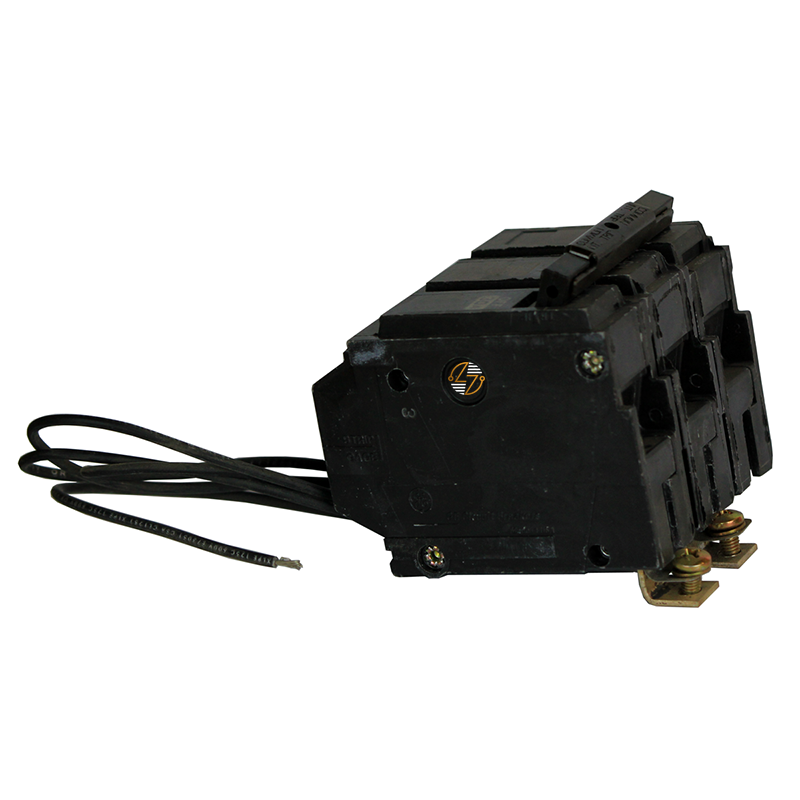

THQB2160ST1 - 60Amp Circuit Breaker

THQB2160ST1 - 60 Amp Circuit Breaker

The THQB2160ST1 is a 60-amp, 2-pole THQB series circuit breaker rated for use on your 120/240VAC systems. It features a factory-installed 120VAC shunt trip, allowing the breaker to be opened remotely when connected to a compatible control circuit. This makes it a good fit for applications where power needs to be disconnected automatically or from a remote location. The breaker uses a bolt-on mounting design and is part of the Q-Line product family, commonly found in commercial and industrial electrical distribution equipment. With a 10kA interrupting rating, it helps you to protect conductors and connected equipment from damage caused by overloads and short circuits. The breaker is also HACR rated, making it suitable for many heating, ventilation, air conditioning, and refrigeration applications. Compact in size and easy to integrate into compatible panelboards, the THQB2160ST1 is frequently used in building systems that incorporate emergency shutdown functions, fire alarm controls, safety interlocks, and equipment protection circuits.

Key Features and Benefits

• 60 amp current rating: Provides branch circuit protection for applications requiring a 60 amp breaker.
• 2-pole breaker for 120/240VAC applications: Designed for use on 120/240VAC electrical systems.
• Factory-installed 120VAC shunt trip: Allows the breaker to be opened remotely when connected to a compatible control circuit.
• Bolt-on mounting configuration: Supports secure installation in compatible panelboards.
• 10kA interrupting capacity at 120/240VAC: Helps protect conductors and connected equipment from damage caused by overloads and short circuits.
• HACR rated: Suitable for many heating, ventilation, air conditioning, and refrigeration applications.
• Molded case construction: Provides durable breaker construction.
• Part of the Q-Line family of circuit breakers: Commonly found in commercial and industrial electrical distribution equipment.
• Supports remote trip and emergency disconnect functions: Frequently used in systems incorporating emergency shutdown and safety interlock capabilities.


Technical Specifications

• Part Number: THQB2160ST1

• Type: THQB

• Series: Q-Line

• Poles: 2

• Current Rating: 60 Amps

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10kA @ 120/240VAC

• Shunt Trip Voltage: 120VAC

• Mounting Type: Bolt-On

• HACR Rated: Yes

• Dimensions:
  • Height: 3.5 in.
  • Width: 3.0 in.
  • Depth: 2.81 in.

Material Compliance and Certifications

• HACR Rated: The THQB2160ST1 is HACR rated for use in heating, air conditioning, and refrigeration equipment applications.
• Installation Requirements: Installation should be performed in accordance with applicable electrical codes, local regulations, and manufacturer recommendations.


Where It Works Best

• This breaker is commonly used in commercial buildings, manufacturing facilities, schools, healthcare facilities, retail properties, and other locations where branch circuit protection and remote tripping capabilities are required. Typical applications include HVAC equipment, control panels, emergency shutdown systems, fire alarm interfaces, and machinery protection circuits.
