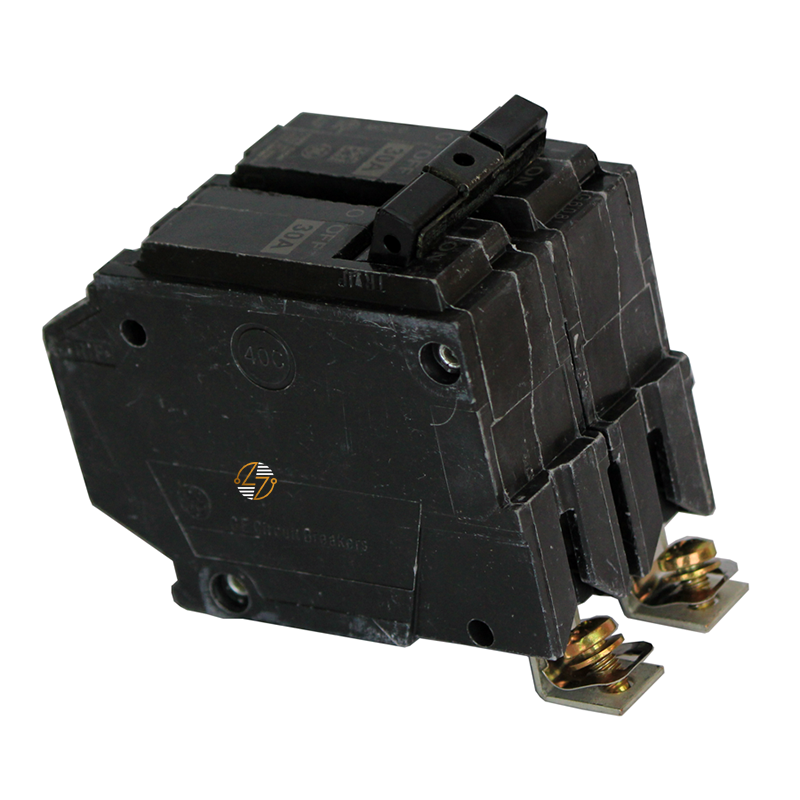

THQB2125 - 25A Circuit Breaker

THQB2125 - 25A Circuit Breaker

The THQB2125 is a 25-amp, 2-pole circuit breaker designed for use in 120/240 VAC electrical distribution systems. As a member of the Q-Line family, it uses a bolt-on mounting design that creates a firm connection to the panelboard, helping reduce movement and maintain dependable performance over time.

With a 10kA interrupting rating, the THQB2125 is intended to protect electrical circuits from overloads and short circuits before they can cause damage to connected equipment or wiring. Its 2-pole configuration makes it a practical choice for applications requiring protection across both legs of a 120/240V circuit. The breaker is also HACR rated, making it suitable for many heating, air conditioning, and refrigeration installations.

Whether you're replacing an existing breaker during maintenance or outfitting a new electrical system, the THQB2125 offers a straightforward solution for branch-circuit protection across a wide range of commercial, industrial, and residential environments.

Key Features and Benefits

• 25 amp current rating
• 2-pole configuration for 120/240VAC systems
• 10kA interrupting capacity
• Bolt-on mounting for a secure panelboard connection
• HACR rated for HVAC and refrigeration applications
• Molded case construction
• Compatible with designated Q-Line panelboards
• Protects against overloads and short circuits

Technical Specifications

• Part Number: THQB2125

• Type: THQB

• Product Series: Q-Line

• Mounting Style: Bolt-On

• Poles: 2

• Amperage: 25A

• Voltage: 120/240VAC

• Interrupting Rating: 10kA

• HACR Rated: Yes

• Dimensions:
  • Height: 3.5 in.
  • Width: 2.0 in.
  • Depth: 2.81 in.

Material Compliance and Certifications

• HACR Rating: The THQB2125 is a molded-case circuit breaker designed for use in electrical distribution equipment that requires overcurrent protection. Its HACR rating supports use in approved heating, ventilation, air conditioning, and refrigeration applications.
• Installation Requirements: Installation should always be performed in accordance with applicable electrical codes and equipment specifications.


Where It Works Best

• The THQB2125 is commonly used in commercial buildings, industrial facilities, multifamily properties, and residential electrical systems. It is often selected for branch circuits serving HVAC equipment, lighting systems, small machinery, and general power distribution where a 25-amp, 2-pole bolt-on breaker is required.
