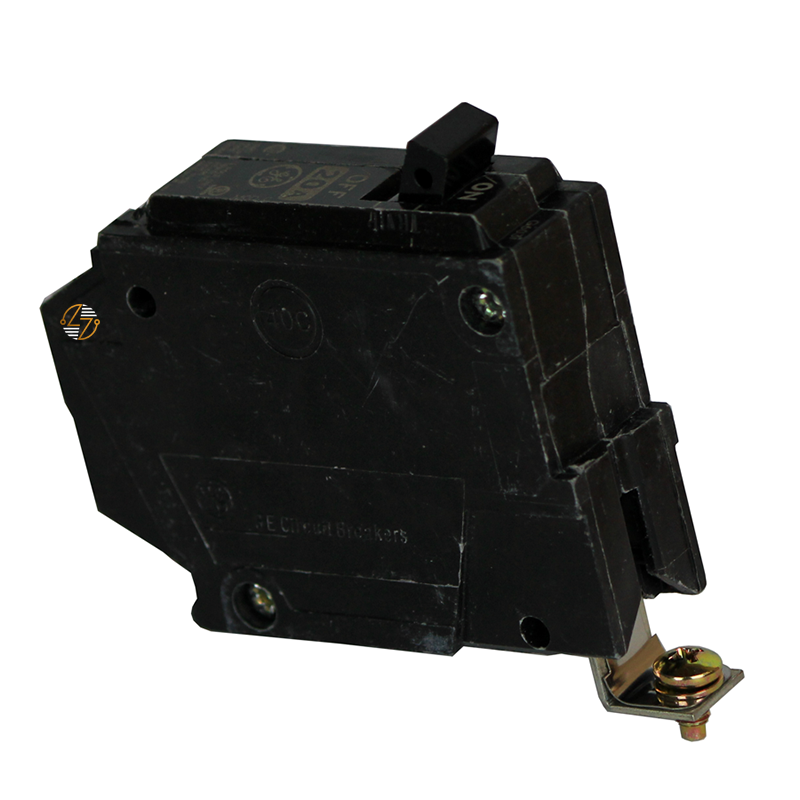

THQB1135 - 35Amp Circuit Breaker

THQB1135 - 35 Amp Circuit Breaker

The THQB1135 is a 35-amp, 1-pole bolt-on circuit breaker used for branch circuit protection in your 120VAC electrical systems. It is designed to trip when an overload or short circuit occurs, helping protect wiring and connected equipment from damage. This breaker is part of the Q-Line series and features a bolt-on mounting design for installation in compatible panelboards. Its HACR rating allows it to be used in approved heating, air conditioning, and refrigeration applications. With a 10kA interrupting rating at 120VAC, the THQB1135 is suitable for a variety of commercial, residential, and light industrial electrical systems.

Key Features and Benefits

• 35 amp rating
• Single-pole breaker
• Bolt-on mounting
• Type THQB
• Q-Line series
• HACR rated
• 10kA interrupting capacity at 120VAC
• Molded case construction
• Designed for branch circuit protection

Technical Specifications

• Part Number: THQB1135

• Type: THQB

• Poles: 1

• Amperage: 35A

• Voltage Rating: 120VAC

• Interrupting Capacity: 10kA @ 120VAC

• Mounting Style: Bolt-On

• Series: Q-Line

• Construction: Molded Case Circuit Breaker

• HACR Rated: Yes

• Dimensions:
  • Height: 3.5 in.
  • Width: 1.0 in.
  • Depth: 2.81 in.

Material Compliance and Certifications

• HACR Rated: HACR Rated
• Manufacturing Compliance: Manufactured for use in applicable electrical distribution systems
• Installation Requirements: Verify installation requirements and code compliance before use


Where It Works Best

• The THQB1135 is commonly used in panelboards serving lighting, receptacle, HVAC, refrigeration, and other branch circuits requiring a 35-amp, single-pole breaker. It is suitable for commercial facilities, office buildings, retail locations, residential properties, and light industrial applications.
