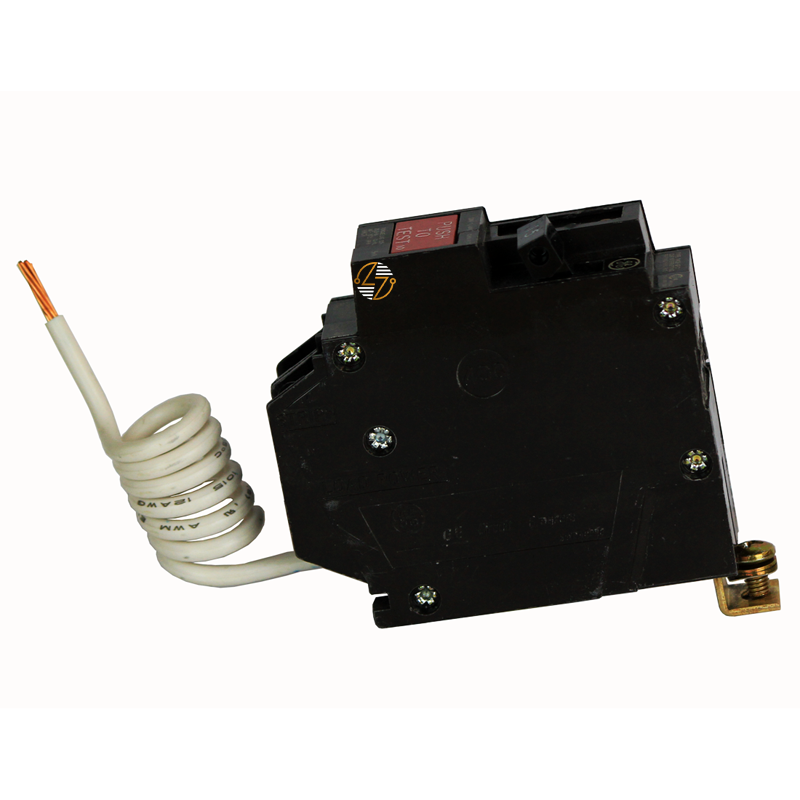

THQB1120GFT - 20Amp Circuit Breaker

THQB1120GFT - 20 Amp Circuit Breaker

The THQB1120GFT is a 20-amp, 1-pole ground fault circuit interrupter (GFCI) circuit breaker designed to provide both dependable circuit protection and enhanced personnel safety in your 120VAC electrical systems. As part of the trusted THQB Q-Line series, this bolt-on circuit breaker helps you to protect against overloads, short circuits, and potentially dangerous ground faults that can occur in residential, commercial, and light industrial applications. Featuring a 10kA interrupting capacity at 120VAC, the THQB1120GFT is engineered for installations where reliable fault protection is essential. Its integrated Ground Fault Circuit Interruption (GFCI) functionality helps you detect leakage currents and quickly disconnect power when ground fault conditions are present, reducing the risk of electrical shock. The compact bolt-on design provides a secure connection within compatible panelboards, while its HACR rating makes it suitable for use in heating, air conditioning, and refrigeration applications. Whether you're upgrading an existing electrical system or replacing a breaker in a Q-Line panel, the THQB1120GFT offers a practical combination of protection, safety, and dependable performance.

Key Features and Benefits

• 20 Amp rating: for branch circuit protection
• Single-pole design: for 120VAC applications
• Integrated Ground Fault Circuit Interruption (GFCI) protection
• 10kA interrupting capacity: at 120VAC
• Bolt-on mounting configuration: for secure installation
• Part of the THQB Q-Line breaker family
• HACR rated: for heating, air conditioning, and refrigeration equipment applications
• Protects against: overloads, short circuits, and ground fault conditions
• Compact footprint: helps maximize panel space efficiency
• Suitable for: residential, commercial, and light industrial electrical systems

Technical Specifications

• Part Number: THQB1120GFT
• Type: THQB
• Circuit Breaker Style: Ground Fault Circuit Interruption (GFCI)
• Poles: 1
• Amperage: 20 Amps
• Voltage Rating: 120VAC
• Interrupting Capacity: 10kA @ 120VAC
• Mounting Type: Bolt-On
• Product Line: Q-Line
• HACR Rated: Yes
• Height: 3.5 in.
• Width: 1.0 in.
• Depth: 2.81 in.

Material Compliance and Certifications

• HACR Rated
• Manufactured for use: in compatible Q-Line electrical distribution equipment
• Designed to provide: overload, short-circuit, and ground fault protection
• Built to meet: applicable industry performance standards for molded case circuit breakers and GFCI protection devices when installed in accordance with manufacturer specifications and local electrical codes

Where It Works Best

• Residential branch circuits
• Kitchens, bathrooms, and utility areas where GFCI protection may be required
• Commercial facilities and office buildings
• HVAC and refrigeration equipment circuits
• Maintenance and replacement projects in compatible Q-Line panelboards
• Electrical systems where personnel protection from ground faults is a priority
• With its combination of reliable overcurrent protection, integrated ground fault detection, and secure bolt-on installation, the THQB1120GFT is a dependable solution for maintaining electrical safety and system performance.
