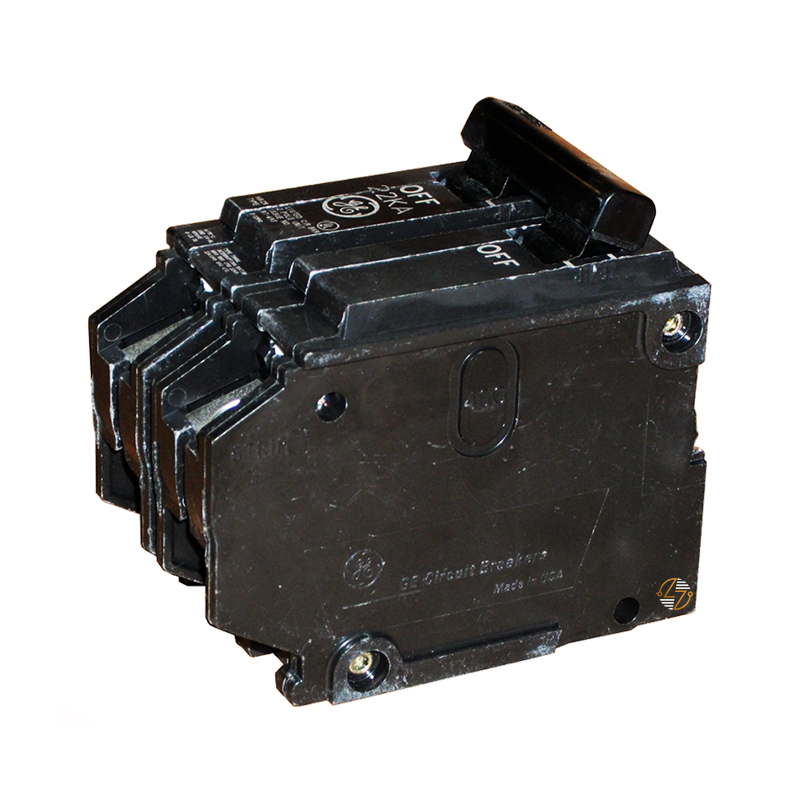

THHQL21100 - 100A Circuit Breaker

THHQL21100 100A Circuit Breaker

The THHQL21100 circuit breaker is a top-tier solution designed to ensure optimal safety and performance in both residential and commercial settings. This compact, one-inch wide per pole breaker from the Q-Line series is engineered to handle up to 100 amps with a 120/240V rating, making it perfect for diverse electrical applications. Featuring a robust interrupting capacity of 22 kAIC, the THHQL21100 offers superior protection against electrical faults, ensuring the reliability and safety of your electrical systems. Its thermal-magnetic design, coupled with a quick-make, quick-break mechanism, ensures immediate response to overloads and short circuits, reducing the risk of damage and enhancing system longevity.

Key Features and Benefits:

• Compact Design: The one-inch wide per pole configuration saves space, making it ideal for both residential and commercial installations.
• High Interrupting Capacity: With a 22 kAIC rating, this breaker is designed to handle high fault currents, providing robust protection for your electrical systems.
• Thermal-Magnetic Protection: Ensures precise and reliable response to overloads and short circuits, enhancing safety.
• Quick-Make, Quick-Break Mechanism: Facilitates rapid connection and disconnection, improving operational efficiency and safety.
• Easy Installation: Plug-in design simplifies the installation process, reducing labor costs and downtime.
• Versatile Application: Suitable for use in load centers and lighting panels, offering flexibility for various electrical setups.

Technical Specifications:

• Catalog Number: THHQL21100
• Amperage: 100A
• Voltage Rating: 120/240 V
• Interrupting Capacity: 22 kAIC
• Poles: 2
• Frame Type: Q-Line
• Trip Function: LI (Long Time and Instantaneous)
• Continuous Current Rated: Standard
• UL File Number: E11592
• Special Markings: HACR (Heating, Air Conditioning, and Refrigeration)

Material Compliance and Certifications:

• UL Listed: The THHQL21100 circuit breaker is UL-listed, ensuring it meets rigorous safety and performance standards.
• HACR Compliance: Complies with HACR requirements, making it suitable for HVAC applications.
• GSA Compliant: Adheres to governmental procurement standards.

Suitability:

• Ideal for residential and commercial environments, the THHQL21100 circuit breaker is designed to protect electrical circuits from damage caused by overloads and short circuits. Its suitability for reverse feed enhances installation flexibility, while the fixed long time and instantaneous trip settings provide consistent protection under varying load conditions. Whether you are upgrading an existing electrical system or installing a new one, this breaker delivers the reliability and safety you need.
