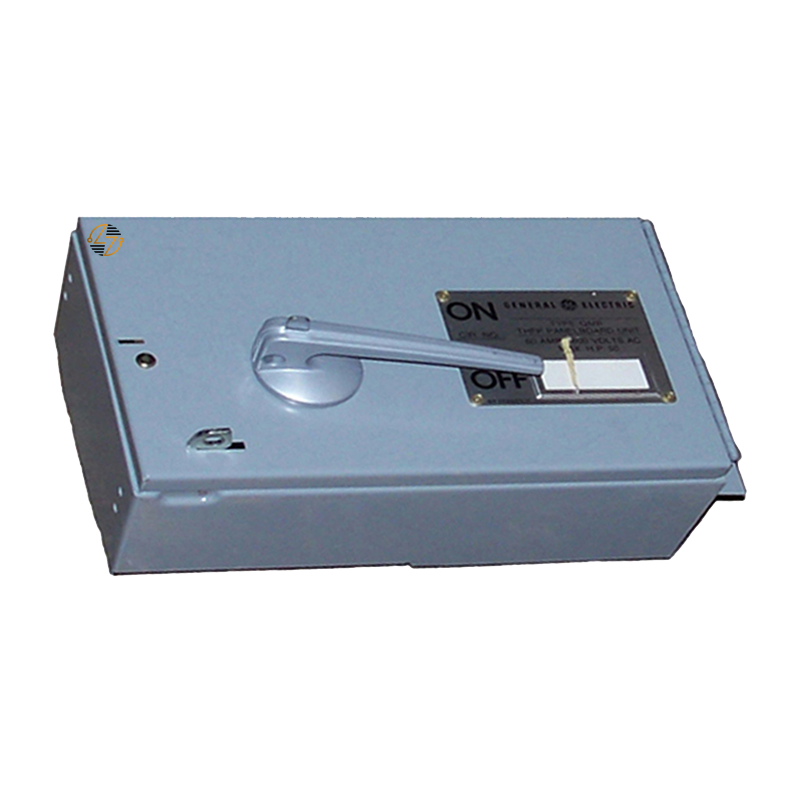

THFP363 SINGLE - 100 Amp Panelboard Switch

THFP363 SINGLE - 100 Amp Panelboard Switch

The General Electric THFP363 Panelboard Switch is a high-performance, 3-pole, 100-amp, 600-volt AC fusible unit designed to deliver reliable and efficient power distribution for industrial and commercial applications. As part of General Electric’s trusted product line, the THFP363 ensures safety and durability, making it an essential component for heavy-duty electrical systems. This bolt-in type panelboard switch is engineered for seamless compatibility with QMR and THFP switchboards and accepts Class RK1 and RK5 fuses, providing superior overcurrent protection.

Key Features and Benefits

• Triple Pole Design: Ensures balanced and efficient power distribution for three-phase electrical systems.
• Fusible Unit: Accepts Class RK1 and RK5 fuses for enhanced overcurrent protection and operational safety.
• Bolt-In Panelboard Compatibility: Designed for QMR and THFP switchboards, offering easy installation and adaptability to various setups.


Technical Specifications

• Voltage Rating: 600 Volts AC

• Current Rating: 100 Amperes

• Number of Poles: 3

• Mounting Type: Bolt-in type, panelboard switch

• Fusible Compatibility: Class RK1 and RK5 fuses

• Interrupting Capacity: Up to 200kA at 480V

• Dimensions: 12.50" (W) x 6.75" (H) x 6.00" (D)

• Weight: 40 lbs


Material Compliance and Certifications

• Robust Construction: The THFP363 is constructed using robust materials to withstand high operational demands and meet industry standards for electrical safety and reliability.
• UL Standards: Complies with applicable UL standards, ensuring long-lasting performance under rigorous conditions.


Suitability

• The General Electric THFP363 Panelboard Switch is the ideal solution for electrical professionals seeking a dependable, high-capacity switching device. Its design and compatibility make it suitable for use in industrial facilities, manufacturing plants, and commercial buildings where reliable power distribution and protection are essential.
