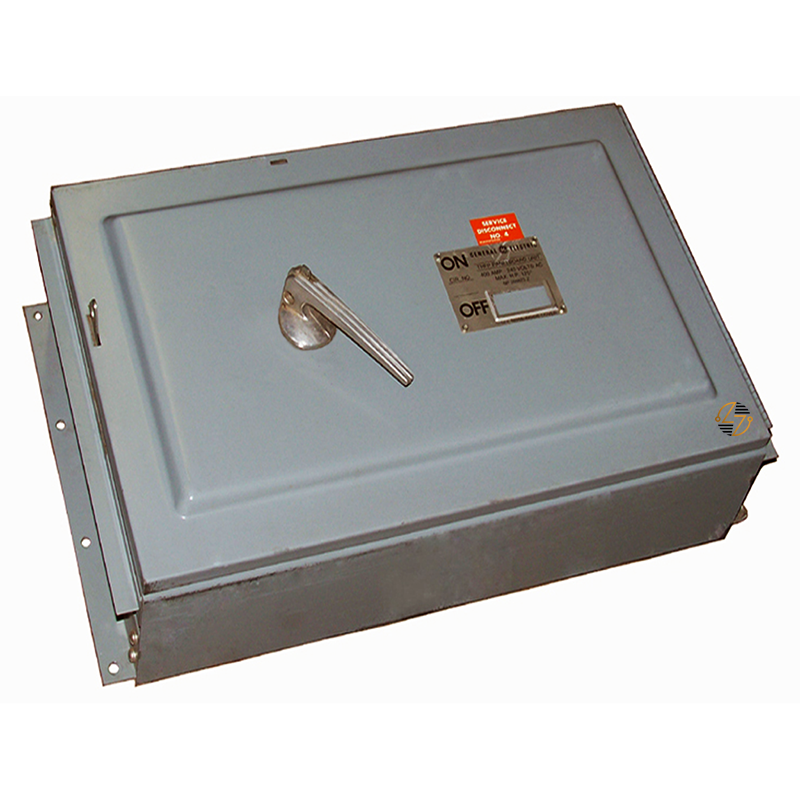

THFP326 - 600 Amp Panelboard Switch

THFP326 - 600 Amp Panelboard Switch

The General Electric THFP326 is a heavy-duty, bolt-in type panelboard switch engineered for precision and reliability in demanding electrical distribution applications. This 3-pole, 600-ampere fusible single unit is designed for 250 volts A.C., offering robust overcurrent protection and smooth operation. As a THFP Type QMR switch, it ensures secure integration within electrical systems, and its compatibility with Class RK1 and RK5 fuses provides flexible circuit protection options.

Key Features and Benefits

• Fusible Design: Compatible with Class RK1 and RK5 fuses for tailored overcurrent protection.
• Bolt-In Installation: Secure and straightforward mounting into panelboards enhances ease of use.

Technical Specifications

• Type: THFP Type QMR Bolt-In Panelboard Switch
• Poles: 3
• Current Rating: 600 Amperes
• Voltage Rating: 250 Volts A.C.
• Fuse Compatibility: Accepts Class RK1 & RK5 Fuses
• Interrupt Rating: 200kA at 480V
• Dimensions: 22.00"W x 16.00"H x 6.00"D

Material Compliance and Certifications

• The General Electric THFP326 adheres to stringent industry standards for safety and reliability. GE designs and manufactures its products to meet or exceed regulatory requirements, ensuring dependable operation in critical environments.

Suitability

• The THFP326 is ideal for use in indoor electrical systems requiring reliable overcurrent protection and high-current handling capacity. It is particularly well-suited for industrial and commercial applications, such as power distribution systems in manufacturing facilities, data centers, and other high-demand settings. Its compact design and bolt-in type installation make it a practical choice for projects with space constraints.
