THED136070WL **Older Style** - 70 Amp Circuit Breaker

THED136070WL **Older Style** - 70 Amp Circuit Breaker

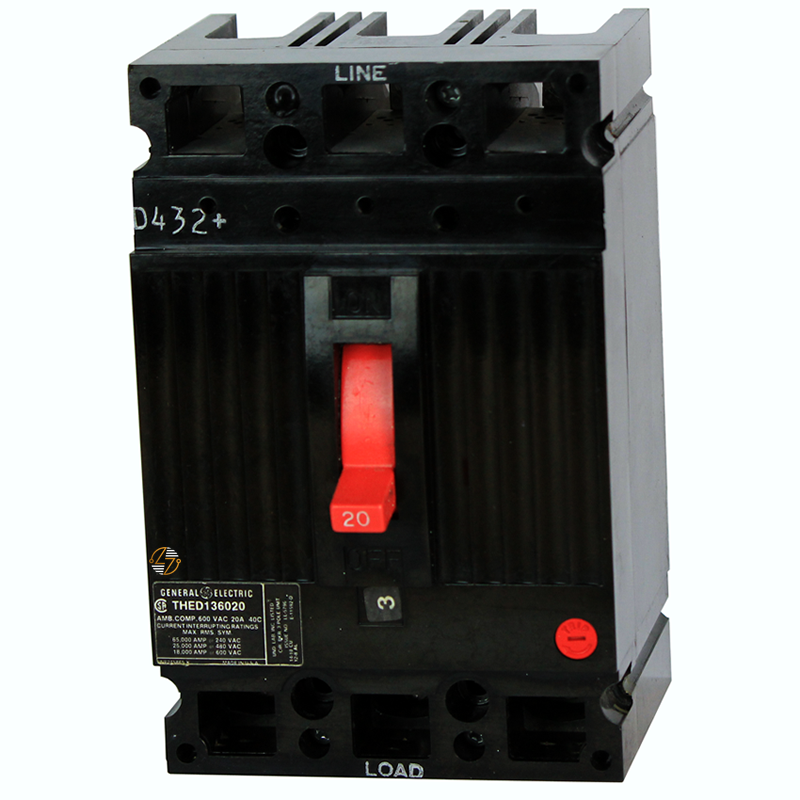

The THED136070WL Black Face Circuit Breaker is a 70-amp, three-pole, thermal-magnetic, molded-case breaker for industrial and commercial electrical applications. Measuring 4.13 inches wide, 6.31 inches high, and 3.38 inches deep, this industrial circuit breaker is built for lasting service when properly selected, installed, and maintained. Whether you're replacing a matching breaker in an established distribution system or servicing industrial machinery, the THED136070WL provides the specifications needed to evaluate form, fit, and electrical compatibility.

Key Features and Benefits

• 70-Amp Current Rating
• Three-Pole Circuit Breaker Configuration
• Thermal-Magnetic Trip Protection
• Non-Interchangeable Trip Unit
• Multiple AC Interrupting Ratings
• Distinctive Black-Face Design
• Line- and Load-Side Lugs Included
• Molded-Case Industrial Construction
• Defined Physical Dimensions
• Suitable for Existing Electrical Systems

Technical Specifications

• Manufacturer: ABB / GE

• Catalog Number: THED136070WL

• Product Type: Molded-Case Circuit Breaker

• Product Category: Industrial Thermal-Magnetic Circuit Breaker

• Series / Type: THED

• Face Color: Black

• Rated Current: 70 Amperes (70A)

• Number of Poles: 3

• Trip Unit Type: Non-Interchangeable Thermal Magnetic

• Overload Protection: Thermal

• Short-Circuit Protection: Magnetic

• Interrupting Capacity at 600VAC: 18,000 Amperes (18kA)

• Interrupting Capacity at 480VAC: 25,000 Amperes (25kA)

• Interrupting Capacity at 240VAC: 65,000 Amperes (65kA)

• Maximum Listed AC Voltage: 600VAC

• Line-Side Lugs: Included

• Load-Side Lugs: Included

• Height: 6.31 Inches

• Width: 4.13 Inches

• Depth: 3.38 Inches

• Dimensions: 4.13"W x 6.31"H x 3.38"D

• Approximate Shipping Weight: 6.50 lbs.

• UPC: 00783164062847


Material Compliance and Certifications

The THED136070WL specifications identify its molded-case construction, thermal-magnetic protection characteristics, and voltage-dependent interrupting ratings. These details are important when evaluating the breaker for use in existing industrial and commercial electrical installations.

For electrical installations requiring specific certifications or compliance documentation, review the applicable manufacturer markings and technical documentation to confirm suitability.

Where It Works Best

• Existing Commercial Electrical Systems
• Industrial Power Distribution Equipment
• Three-Phase Electrical Applications
• Industrial Machinery and Equipment Protection
• Facility Maintenance and Electrical Repairs
• Legacy Electrical Distribution Systems
• Matching THED Circuit Breaker Replacements
• Compatible 70-Amp Electrical Circuits
• Commercial and Industrial Electrical Restoration
• Electrical Assemblies Requiring Black-Face Breakers
• Applications Requiring Specified AC Interrupting Capacities
• Electrical Systems Using Line- and Load-Side Lug Connections
