THED136040WL **Older Style** - 40 Amp Circuit Breaker

THED136040WL **Older Style** - 40 Amp Circuit Breaker

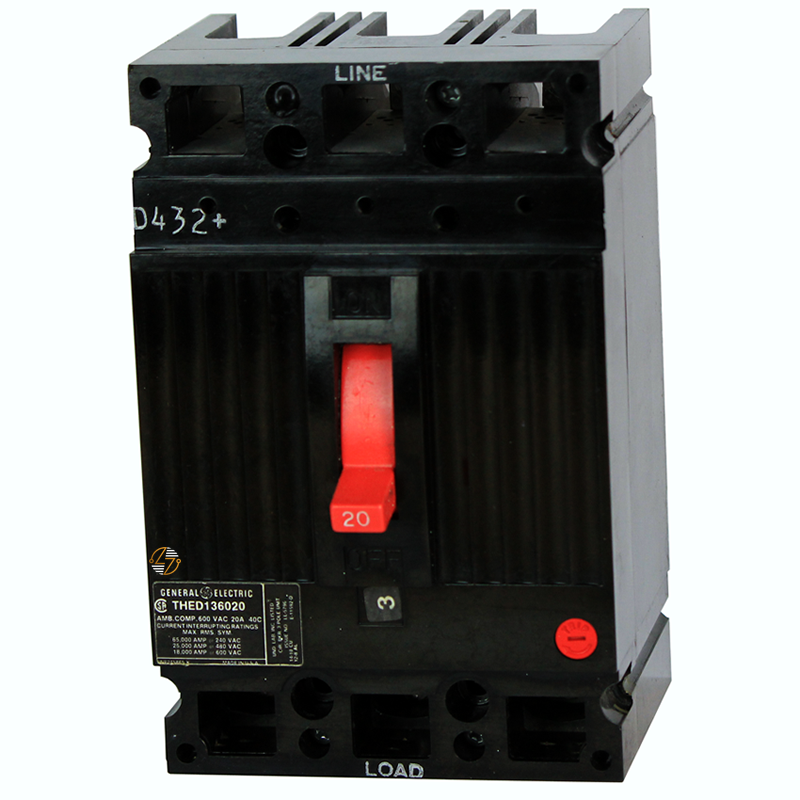

The THED136040WL Black Face Circuit Breaker is a 40-amp, three-pole industrial molded-case circuit breaker designed for your compatible commercial and industrial electrical distribution systems. Part of the ABB/GE THED E150 frame family, this breaker features a non-interchangeable thermal-magnetic trip unit that provides overload and short-circuit protection. Its specified interrupting capacities are 18kAIC at 600VAC, 25kAIC at 480VAC, and 65kAIC at 240VAC. These voltage-specific ratings give electricians and maintenance professionals the information they need to evaluate the breaker for an existing electrical installation.

Key Features and Benefits

• 40 Amp Current Rating
• Three-Pole Configuration
• Black Face Design
• Thermal-Magnetic Protection
• Non-Interchangeable Trip Unit
• Line-Side Lugs Included
• Load-Side Lugs Included
• WL Lug Configuration
• THED E150 Frame Family
• Molded-Case Construction
• Defined Physical Dimensions
• Form, Fit, and Functional Replacement

Technical Specifications

• Catalog Number: THED136040WL

• UPC: 00783164062809

• Manufacturer / Product Family: ABB/GE THED

• Product Identification: Black Face

• Product Type: Industrial Molded-Case Circuit Breaker (MCCB)

• Breaker Type: THED

• Frame Family: E150

• Current Rating: 40 Amps

• Number of Poles: 3

• Trip Unit Type: Thermal Magnetic

• Trip Unit Configuration: Non-Interchangeable

• Interrupting Rating at 600VAC: 18kAIC (18,000 Amps)

• Interrupting Rating at 480VAC: 25kAIC (25,000 Amps)

• Interrupting Rating at 240VAC: 65kAIC (65,000 Amps)

• Face Configuration: Black Face

• Line-Side Lugs: Included

• Load-Side Lugs: Included

• Terminal Configuration: Line and Load-Side Lugs

• Approximate Height: 6.31 inches

• Approximate Width: 4.13 inches

• Approximate Depth: 3.38 inches

• Overall Dimensions: 4.13"W × 6.31" H × 3.38"D

• Approximate Shipping Weight: 6.50 lbs.


Material Compliance and Certifications

The THED136040WL Black Face Circuit Breaker is an industrial molded-case circuit breaker with a non-interchangeable thermal-magnetic trip unit. Its stated construction and electrical characteristics are intended for compatible distribution equipment requiring this particular THED configuration.

We have not independently verified specific UL listing information, CSA certification details, RoHS compliance status, or material composition declarations for the exact THED136040WL Black Face configuration. These certifications or compliance attributes should not be assumed without checking the applicable product markings or manufacturer documentation.

Where It Works Best

• Legacy Electrical Distribution Systems
• Commercial Electrical Installations
• Industrial Electrical Applications
• Facility Maintenance
• Black-Face Breaker Replacements
• 240VAC Applications
• 480VAC Applications
• 600VAC Applications
• Line and Load-Side Lug Connections
• WL Configuration Replacements
• Compatible E150-Frame Equipment
